PENTA ALADIN Personal Voltage Alarm

Personal Voltage Alarm

PENTA ALADIN

The ALADIN voltage alarm is a part of the voltage detector equipment range from PENTA is designed to provide an extra level of electrical safety for workers operating near energized equipment (during maintenance, rescue operations, painting, pruning) in electrical environment. This device combines a head light and a personal voltage alarm but does not replace good safety procedures.

Uses

Example of situation where ALADIN individual voltage alarm with headlamp provided an efficient warning.

Misunderstanding: the operator approach the wrong spot
Voltage unexpected return: Mistake during an operation on disconnected network
Involuntary approach: Quick move in direction of energized area during operation
Diversion: the operator is diverted by a bad news or urgency and moves toward a high potential energized conductor unconsciously

In all these situations and many others ALADIN will provide the ultimate WARNING.

Advantages

Sound alert of voltage proximity which rhythm increases up on the level of electric field detected.

The “smart mute” is a Dynamic Voltage Detection:

It is used to silence the warning sound once at working place, the device is remaining in vigilance and still measuring the electric field.
– The warning sound will automatically restart in case of increase of the level of detected electric field (closer or sudden presence of voltage).
– Acts as an additional fencing which can be set at the working place.

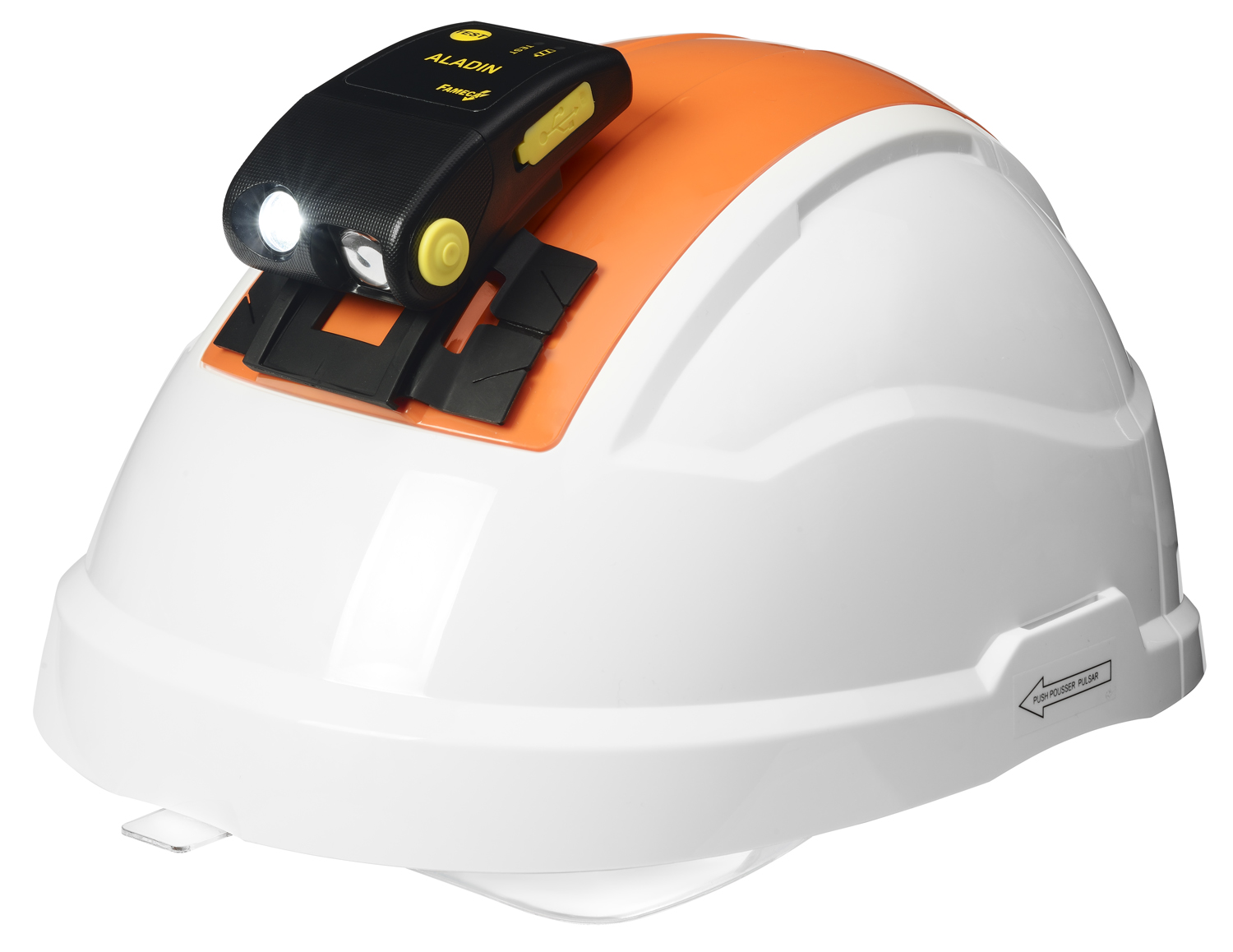

The device is designed like head light to be fixed on helmets or hard hats by various means. In this position, the device will detect 360°around the operator.
No influence of the electromagnetic fields.
2 types of light are available :
− 1 light for remote vision (overhead lines, poles, …)
− 1 light for closer vision (walking trip, working place, …)
Light and compact device.
Rechargeable by standard micro USB 5 V plug.

ALADIN

Technical Specification & Ordering Information

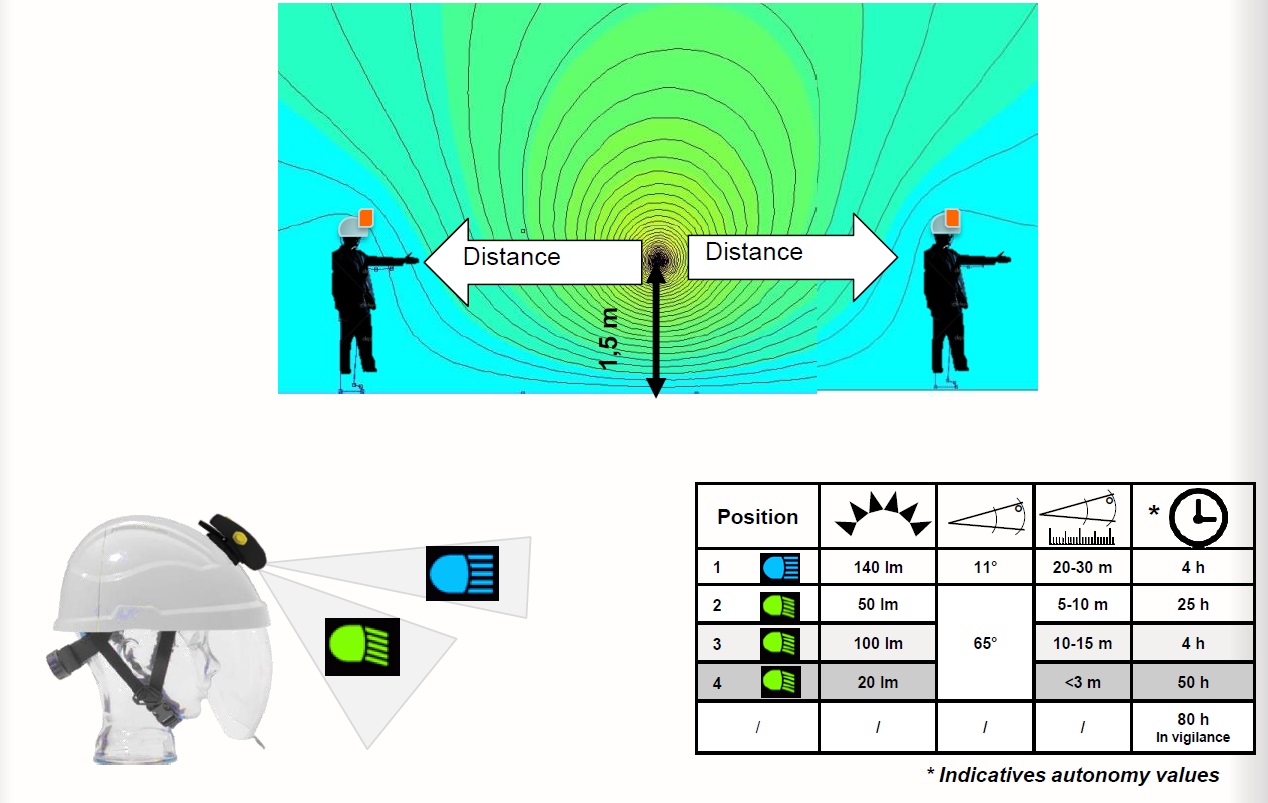

360 detection of electric field 50 & 60 Hz around the worker.
Convenient for outdoor and indoor electrical systems
Detects the level of electric field. It does not measure the distance of the source of the electric field
Higher is the voltage, bigger is the distance of detection.
It may even detect low voltage near wall outlet (Only on 2 400kV version).
Range of use up to 400 kV environments
Battery capacity 2000mAh
Temperature: -25° +55° C
Humidity: up to 96%.
Dimensions: 87 x 60 x 34 mm / Weight: 98 g

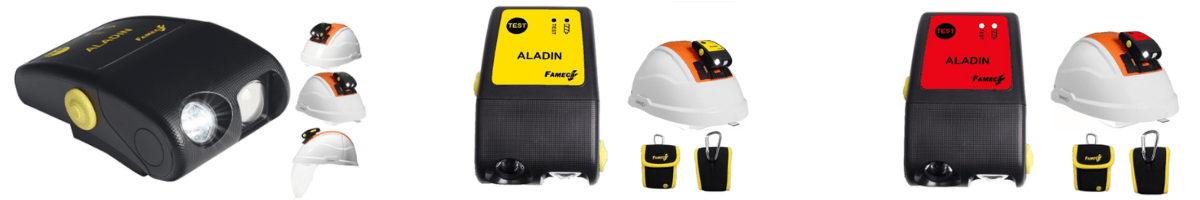

Voltage Range	50kV – 400kV	10kV – 69kV	2kV – 400kV
Product Reference	ALADINHVCEFC	ALADINMVOHCEFC	ALADINCEFC
Options	Charger USB elastic strap
User Manual	Pack F
Packaging	Cardboard box: includes Soft bag, many pads interface (x 3)

PENTA together with T&D introduce an innovative new electrical safety product to the UK market – ALADIN is an individual voltage alarm with headlamp that attaches to a helmet suitable for use with MV overhead lines in the voltage range of 10-69kV.

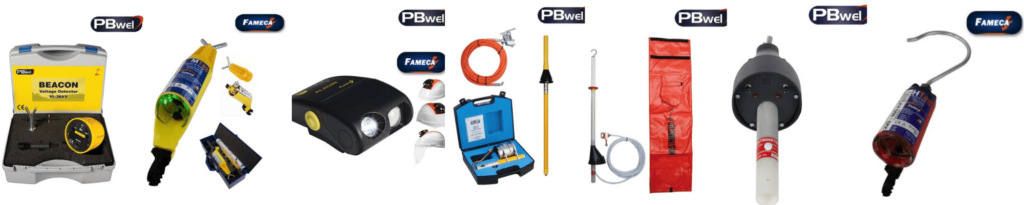

PENTA Voltage Detectors & Equipment
