Pfisterer 332595010 Connectors

332595010

Pfisterer 332595010, from the Sicon range of connectors, are Network Rail Approved Connectors with PADS approval for jointing, terminating and connecting trackside power cables, signal and telecoms up to 33kV.

This cable lug can accept a range of solid or stranded, aluminium or copper conductors and is designed for use with all types of Cold Shrink and heat shrink cable joints.

Order Reference – Pfisterer Sicon 332 595 010
Conductor cross section Al solid circular – 50-240sqmm
Conductor cross section Al stranded circular – 50-185sqmm
Conductor cross section Al stranded circular compressed 50-240sqmm
Conductor cross section Al solid sector-shaped 50-185sqmm
Conductor cross section Al stranded sector-shaped 50-150sqmm
Conductor cross section Cu solid circular 50-240sqmm
Conductor cross section Cu stranded circular 50-185sqmm
Conductor cross section Cu stranded circular compressed 50-240sqmm
Conductor cross section Cu stranded sector-shaped 50-150sqmm
Number of screws – 2
Mounting hole – 13 Ø (mm)
Width across flats – SW6
PADS Number Network Rail Approved Cable Lug Connectors – 054/039338
Also from Pfisterer | CONNEX Connectors | Bushings | Surge Arresters

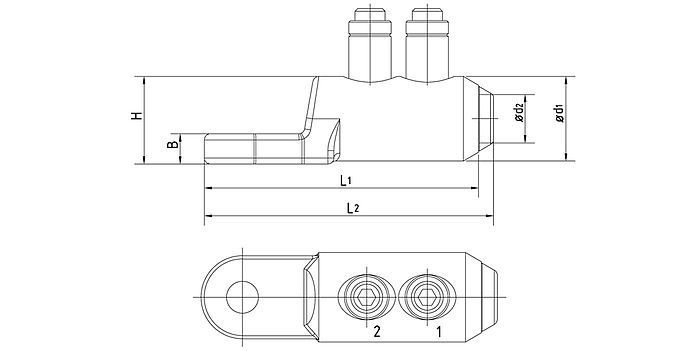

SICON bolted cable lug 50-240sqmm

PFISTERER SICON SELECTION TABLE

Pfisterer Sicon Order Reference	332 595 010
Network Rail PADS Number	054/039338
Conductor cross section Al solid circular	50 – 240sqmm
Conductor cross section Al stranded circular	50 – 185sqmm
Conductor cross section Al stranded circular compressed	50 – 240sqmm
Conductor cross section Al solid sector-shaped	50 – 185sqmm
Conductor cross section Al stranded sector-shaped	50 – 150sqmm
Conductor cross section Cu solid circular	50 – 240sqmm
Conductor cross section Cu stranded circular	50 – 185sqmm
Conductor cross section Cu stranded circular compressed	50 – 240sqmm
Conductor cross section Cu stranded sector-shaped	50 – 150sqmm
Number of screws	2
Mounting hole	13 Ø (mm
Width across flats	SW 6
