Pfisterer 332604010 Connectors

332604010

Pfisterer 332604010, from the Sicon range of connectors, are Network Rail Approved Connectors with PADS approval for jointing, terminating and connecting trackside power cables, signal and telecoms up to 33kV.

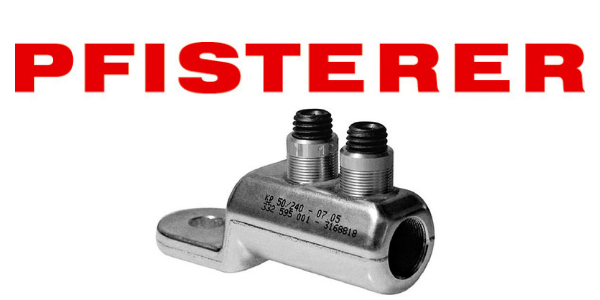

This cable lug can accept a range of solid or stranded, aluminium or copper conductors and is designed for use with all types of Cold Shrink and heat shrink cable joints.

Order Reference – Pfisterer Sicon 332604010
Conductor cross section Al solid circular – 10-95sqmm
Conductor cross section Al stranded circular – 10-95sqmm
Conductor cross section Al stranded circular compressed 10-95sqmm
Conductor cross section Al solid sector-shaped 50-95sqmm
Conductor cross section Al stranded sector-shaped 35-70sqmm
Conductor cross section Cu solid circular 10-95sqmm
Conductor cross section Cu stranded circular 10-95sqmm
Conductor cross section Cu stranded circular compressed 10-95sqmm
Conductor cross section Cu stranded sector-shaped 35-70sqmm
Number of screws – 1
Mounting hole – 13∅ mm
Width across flats – SW6
PADS Number Network Rail Approved Cable Lug Connectors – 054/212161
Also from Pfisterer | CONNEX Connectors | Bushings | Surge Arresters

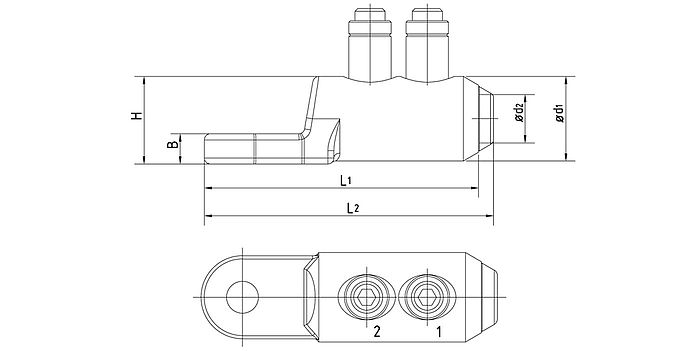

SICON bolted cable lug 10-95sqmm

PFISTERER SICON SELECTION TABLE

Pfisterer Sicon Order Reference	332604010
Network Rail PADS Number	054/212161
Conductor cross section Al solid circular	10 – 95sqmm
Conductor cross section Al stranded circular	10 – 95sqmm
Conductor cross section Al stranded circular compressed	10 – 95sqmm
Conductor cross section Al solid sector-shaped	50 – 95sqmm
Conductor cross section Al stranded sector-shaped	35 – 70sqmm
Conductor cross section Cu solid circular	10 – 95sqmm
Conductor cross section Cu stranded circular	10 – 95sqmm
Conductor cross section Cu stranded circular compressed	10 – 95sqmm
Conductor cross section Cu stranded sector-shaped	35 – 70sqmm
Number of screws	1
Mounting hole	13Ø (mm)
Width across flats	SW 5
