Pfisterer 332605010 Connectors

332605010

Pfisterer 332605010, from the Sicon range of connectors, are Network Rail Approved Connectors with PADS approval for jointing, terminating and connecting trackside power cables, signal and telecoms up to 33kV.

This cable lug can accept a range of solid or stranded, aluminium or copper conductors and is designed for use with all types of Cold Shrink and heat shrink cable joints.

Order Reference – Pfisterer Sicon 332605010
Conductor cross section Al solid circular – 95-400sqmm
Conductor cross section Al stranded circular – 95-300sqmm
Conductor cross section Al stranded circular compressed 95-300sqmm
Conductor cross section Al solid sector-shaped 95-240sqmm
Conductor cross section Al stranded sector-shaped 95-240sqmm
Conductor cross section Cu solid circular 95-400sqmm
Conductor cross section Cu stranded circular 95-300sqmm
Conductor cross section Cu stranded circular compressed 95-300sqmm
Conductor cross section Cu stranded sector-shaped 95-240sqmm
Number of screws – 2
Mounting hole – 13∅ mm
Width across flats – SW8
PADS Number Network Rail Approved Cable Lug Connectors – 054/212163
Also from Pfisterer | CONNEX Connectors | Bushings | Surge Arresters

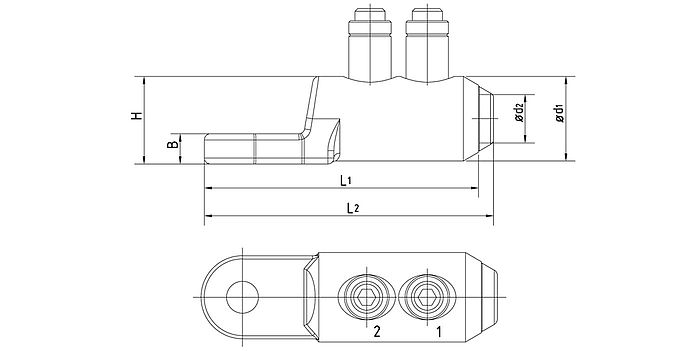

SICON bolted cable lug 95-300sqmm

PFISTERER SICON SELECTION TABLE

Pfisterer Sicon Order Reference	332 605 010
Network Rail PADS Number	054/212163
Conductor cross section Al solid circular	95 – 400sqmm
Conductor cross section Al stranded circular	95 – 300sqmm
Conductor cross section Al stranded circular compressed	95 – 300sqmm
Conductor cross section Al solid sector-shaped	95 – 240sqmm
Conductor cross section Al stranded sector-shaped	95 – 240sqmm
Conductor cross section Cu solid circular	95 – 400sqmm
Conductor cross section Cu stranded circular	95 – 300sqmm
Conductor cross section Cu stranded circular compressed	95 – 300sqmm
Conductor cross section Cu stranded sector-shaped	95 – 240sqmm
Number of screws	2
Mounting hole	13 Ø (mm)
Width across flats	SW 8
