Pfisterer Hybrid Cold Shrink Joints With SICON Bolted Connectors
Cable joints For MV Cables
PFISTERER‘s cold shrink joints for medium voltage applications are reliable and durable. The combination of cold shrink joints and SICON screw connectors ensures ease of installation, reliable medium voltage cable connections and excellent insulation properties.
Each MV joint set contains all the necessary components for connecting single-core medium-voltage cables.
Hybrid Cable Joint Set Contents
- SICON bolted connector for medium voltage conductors
- Cold shrink body with integrated electrodes for field control
- Screen connection components
- Heat shrink outer tubes for cable sealing
- Cleaning wipes, sanding paper, grease, etc.
Cold Shrink Joint Benefits
- Reliable contacting of all conductors
- Optimum contact force for all conductors
- No damage to individual conductors
- Mounting with standard cable jointing tools
- Excellent insulation of medium voltage cable joint
- Wide range of application
- Cable joints tested according to HD 629
➡ Thorne & Derrick distribute the Sicon brand of mechanical shearbolt cable lugs that are suitable for the termination of all LV, MV and HV cables including stranded, circular and solid types of conductor construction – mechanical shearbolt cable connectors are suitable for the connection of all LV, MV and HV cable conductors and compatible with most types of cold shrink and heat shrink insulation cable joints, 11kV/33kV up to 72kV.

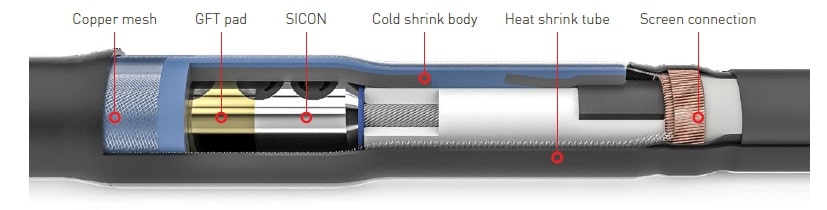

Hybrid Cold Shrink Joint Components
Very Good Insulation
The cold shrink body is made of durable silicone rubber and combines high mechanical strength and excellent electrical properties.
The silicone retains its natural flexibility over the entire service life. Thus, the joint ensures the required overall insulation strength and constant pressure on the cable at all times and depending on the temperature. The heat-shrinkable sleeve for external insulation is UV and weather resistant, waterproof and resistant to alkaline earths.
The quality of our products is ensured by continuous testing processes in production. Pfisterer cold shrink products are tested according to the HD 629 standard.
Simple & Safe Assembly
SICON bolted connectors are assembled with standard tools regardless of conductor material and conductor design. The stepless shear off bolt always uses the full thread load capacity and ensures the perfect contact pressure. A rotating plate at the base of the bolt prevents damage to individual conductors.

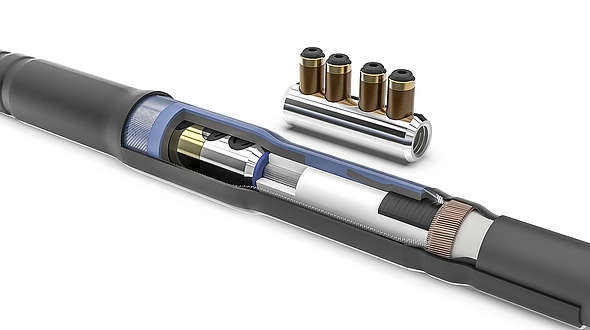

Pfisterer Cold Shrink Joints For MV Cables
Hybrid Cold Shrink joints
Technical Specification
| Cable cross section [sqmm] | Insulation diameter [mm] |
Product Name | Part Number | ||||
| at 12kV | at 24kV | at 36kV | at 42kV | min | max | ||
| 35 – 95 | 25 – 95 | – | – | 13.8 | 27.0 | PCHJ-C 12-24/25-95-1 | 332 730 200 |
| 95 – 240 | 50 – 240 | – | – | 18.4 | 36.0 | PCHJ-C 12-24/50-240-1 | 332 730 201 |
| 95 – 300 | 50 – 300 | – | – | 18.4 | 36.0 | PCHJ-C 12-24/50-300-1 | 332 730 202 |
| 240 – 400 | 185 – 400 | – | – | 25.3 | 40.0 | PCHJ-C 12-24/185-400-1 | 332 730 203 |
| 400 – 630 | 400 – 630 | – | – | 31.1 | 51.0 | PCHJ-C 12-24/400-630-1 | 332 730 204 |
| 630 – 800 | 630 – 800 | – | – | 36.8 | 58.0 | PCHJ-C 12-24/630-800-1 | 332 730 205 |
| 800 – 1000 | 800 – 1000 | – | – | 36.8 | 58.0 | PCHJ-C 12-24/800-1000-1 | 332 730 206 |
| – | – | 25 – 95 | 25 – 95 | 20.8 | 36.0 | PCHJ-C 36-42/25-95-1 | 332 730 400 |
| – | – | 95 – 240 | 70 – 240 | 26.8 | 40.0 | PCHJ-C 36-42/70-240-1 | 332 730 401 |
| – | – | 95 – 300 | 70 – 300 | 26.8 | 40.0 | PCHJ-C 36-42/70-300-1 | 332 730 402 |
| – | – | 185 – 400 | 185 – 400 | 26.8 | 40.0 | PCHJ-C 36-42/185-400-1 | 332 730 403 |
| – | – | 300 – 630 | 300 – 630 | 35.1 | 51.0 | PCHJ-C 36-42/300-630-1 | 332 730 404 |
| – | – | 630 – 800 | 630 – 800 | 41.6 | 58.0 | PCHJ-C 36-42/630-800-1 | 332 730 405 |
| – | – | 800 – 1000 | 800 – 1000 | 41.6 | 58.0 | PCHJ-C 36-42/800-1000-1 | 332 730 406 |
âž¡ Thorne & Derrick also distribute the range of Pfisterer Hybrid Cold Shrink Terminations for Medium Voltage applications.
