Pfisterer Hybrid Cold Shrink Terminations With SICON Bolted Connectors

Cable terminations For MV Cables

Thorne & Derrick | Approved Pfisterer Supplier | UK & Export Sales

PFISTERER terminations are made of highly resistant silicone and are reliable and durable medium voltage cable terminations. They withstand the most difficult weather conditions, are UV resistant and maintain the same insulation strength and constant pressure on the MV cable at a wide range of temperatures.

The hydrophobic properties of the silicone terminations protect against contamination. In combination with SICON bolted cable lugs, PFISTERER terminations for medium voltage cables are easy to install and ensure reliable cable connections and excellent insulation properties.

MV Terminations

➡ Thorne & Derrick distribute the Sicon brand of mechanical shearbolt cable lugs that are suitable for the termination of all LV, MV and HV cables including stranded, circular and solid types of conductor construction – mechanical shearbolt cable connectors are suitable for the connection of all LV, MV and HV cable conductors and compatible with most types of cold shrink and heat shrink insulation cable joints, 11kV/33kV up to 72kV.

Cold Shrink Terminations Benefits

Reliable contact of all conductors
Optimum contact force for all conductors
No damage to individual conductors using standard cable jointing tools
Excellent insulation of the Cold Shrink termination
Self-cleaning and maintenance-free MV termination
Wide range of application for medium voltage cables
Terminations tested according to HD 629
Also available Cold Shrink Joints

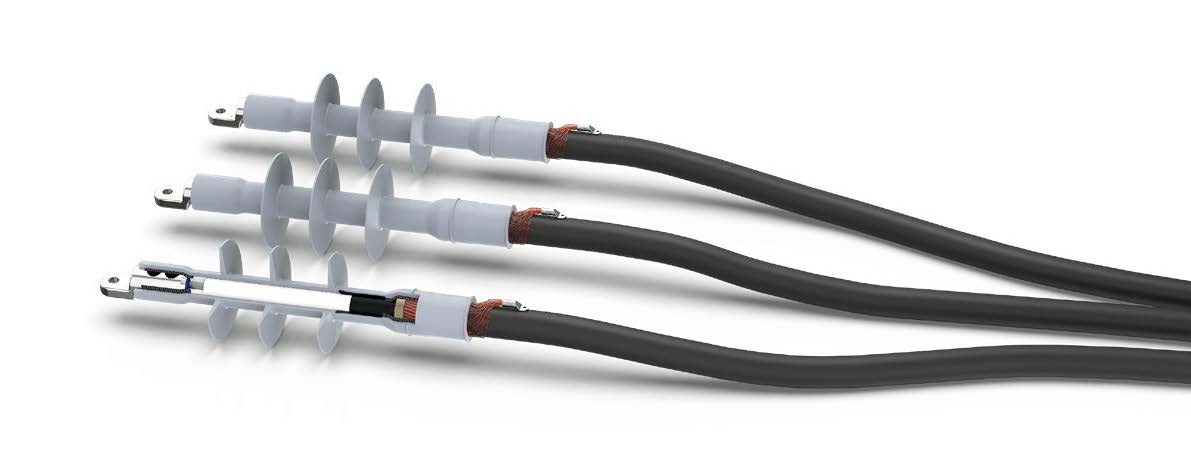

Pfisterer Cold Shrink Terminations For MV Cables

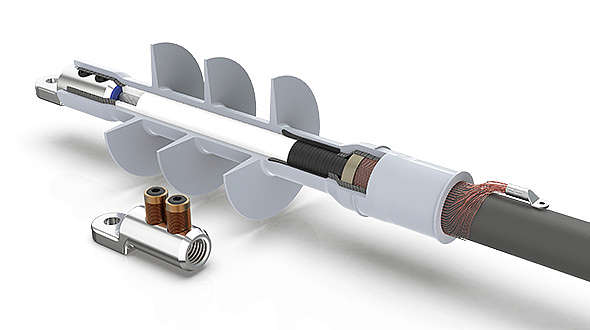

Hybrid Cold Shrink Terminations

Technical Specification

PFISTERER Name	Cable cross section [sqmm]				Lug blade max width sqmm	Lug max diameter sqmm	Part Number
PFISTERER Name	at 12 kV	at 24kV	at 36kV	at 42kV	Lug blade max width sqmm	Lug max diameter sqmm	Part Number
12/24 kV Indoor Cable Termination
PCIT-C 12-24/25-95-1	35 – 95	25 – 95	–	–	30	27	332 731 200
PCIT-C 12-24/50-240-1	95 – 240	50 – 240	–	–	40	36	332 731 201
PCIT-C 12-24/185-300-1	240 – 300	185 – 300	–	–	55	50	332 731 202
PCIT-C 12-24/185-400-1	240 – 400	185 – 400	–	–	55	50	332 731 203
PCIT-C 12-24/400-630-1	400 – 630	400 – 630	–	–	60	61	332 731 204
PCIT-C 12-24/630-800-1	630 – 800	630 – 800	–	–	80	72	332 731 205
PCIT-C 12-24/800-1000-1	800 – 1000	800 – 1000	–	–	80	72	332 731 206
36/42 kV Indoor Cable Termination
PCIT-C 36-42/25-95-1	–	–	35 – 95	25 – 95	30	27	332 731 400
PCIT-C 36-42/35-150-1	–	–	35 – 150	50 – 150	40	36	332 731 401
PCIT-C 36-42/70-240-1	–	–	120 – 240	70 – 240	40	36	332 731 402
PCIT-C 36-42/95-300-1	–	–	120 – 300	95 – 300	40	36	332 731 403
PCIT-C 36-42/240-400-1	–	–	240 – 600	240 – 400	55	50	332 731 404
PCIT-C 36-42/400-630-1	–	–	400 – 630	400 – 630	60	61	332 731 405
PCIT-C 36-42/630-800-1	–	–	630 – 800	630 – 800	80	72	332 731 406
PCIT-C 36-42/800-1000-1	–	–	800 – 1000	800 – 1000	80	72	332 731 407
12/24 kV Outdoor Cable Termination
PCOT-C 12-24/25-95-1	35 – 95	25 – 95	–	–	45	36	332 732 200
PCOT-C 12-24/50-240-1	95 – 240	50 – 240	–	–	55	50	332 732 201
PCOT-C 12-24/185-300-1	240 – 300	185 – 300	–	–	60	61	332 732 202
PCOT-C 12-24/185-400-1	240 – 400	185 – 400	–	–	60	61	332 732 203
PCOT-C 12-24/400-630-1	400 – 630	400 – 630	–	–	60	61	332 732 204
PCOT-C 12-24/630-800-1	630 – 800	630 – 800	–	–	80	72	332 732 205
PCOT-C 12-24/800-1000-1	800 – 1000	800 – 1000	–	–	80	72	332 732 206
36/42 kV Indoor Termination
PCOT-C 36-42/25-95-1	–	–	35 – 95	25 – 95	40	36	332 732 400
PCOT-C 36-42/35-150-1	–	–	35 – 150	50 – 150	40	36	332 732 401
PCOT-C 36-42/70-240-1	–	–	120- 240	70 – 240	55	50	332 732 402
PCOT-C 36-42/95-300-1	–	–	120- 300	95 – 300	55	50	332 732 403
PCOT-C 36-42/240-400-1	–	–	240 – 600	240 – 400	60	61	332 732 404
PCOT-C 36-42/400-630-1	–	–	400 – 630	400 – 630	60	61	332 732 405
PCOT-C 36-42/630-800-1	–	–	630 – 800	630 – 800	80	72	332 732 406
PCOT-C 36-42/800-1000-1	–	–	800 – 1000	800 – 1000	80	72	332 732 407
