IXOSIL 132kV Cable Joints for High Voltage Power Cables & Systems

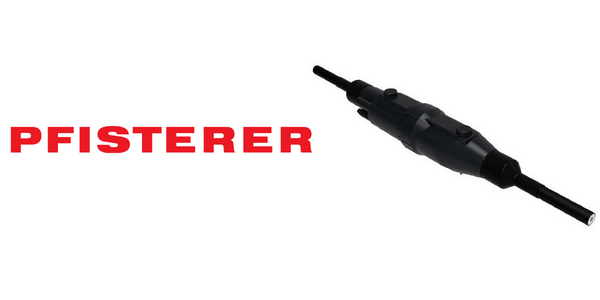

Pfisterer MSA145 is a one-piece Slip-on cable joint for permanent fault repair, extension and jointing of high voltage power cable connections – the well proven Slip-on cable jointing technology permits fast installation and the secure connection of high voltage cables with extruded polymeric insulation (XLPE) with copper or aluminium conductors.
Using the patented SICON bolted connector allows the conductor to connected with optimal contact force and without special tools. The main insulation of the 132kV cable joints is silicone with a water-resistant housing.
- Fast HV cable joint installation
- Simple Slip-on technology, proven in many years of service
- Water-resistant housing
- Combination of different conductor materials (aluminium, copper)
- Main insulation: Silicone
132kV Cable Joints | Pfisterer MSA145
Technical Data of Pfisterer MSA Cable Joints 132kVÂ
| Pfisterer Part Number | MSA145-DOMG | |
|---|---|---|
| Cable Joint Type | Straight Through Connection | |
| Applicable standards | IEC 60840 | |
| Max. system voltage | Um (kV) | 145 |
| Nominal voltage | UN | 132 – 138kV |
| U0Â for Determination of Test Voltage | (kV) | 76kV |
| Rated design voltage to ground | U0Â (kV) | 84kV |
| AC withstand voltage – 15 min | (kV) | 190kV |
| Rated lightning impulse withstand voltage BIL | (kV) | 650kV |
| Heating cycles | (kV) | 152kV |
| Rated power frequency withstand voltage | 30 min (kV) | 190kV |
| Rated short-time withstand current 1 s | 1 s (kA) | 63kV |
| Sectionalizer BIL – to ground | (kV) | 37.5kV |
| Sectionalizer DC 1 min | (kV) | 25kV |
| Mechanical impact according | BS 7912:2012 Chapter 16.8 | |
| Field control method | Geometrical | |
| Metallic housing | Yes | |
| Outer protection | PP Plastic Housing | |
Surge Counters | Sheath Voltage Limiters | Bushings MV HV | Surge Arresters MV HV | Joints Terminations Connectors MV HV

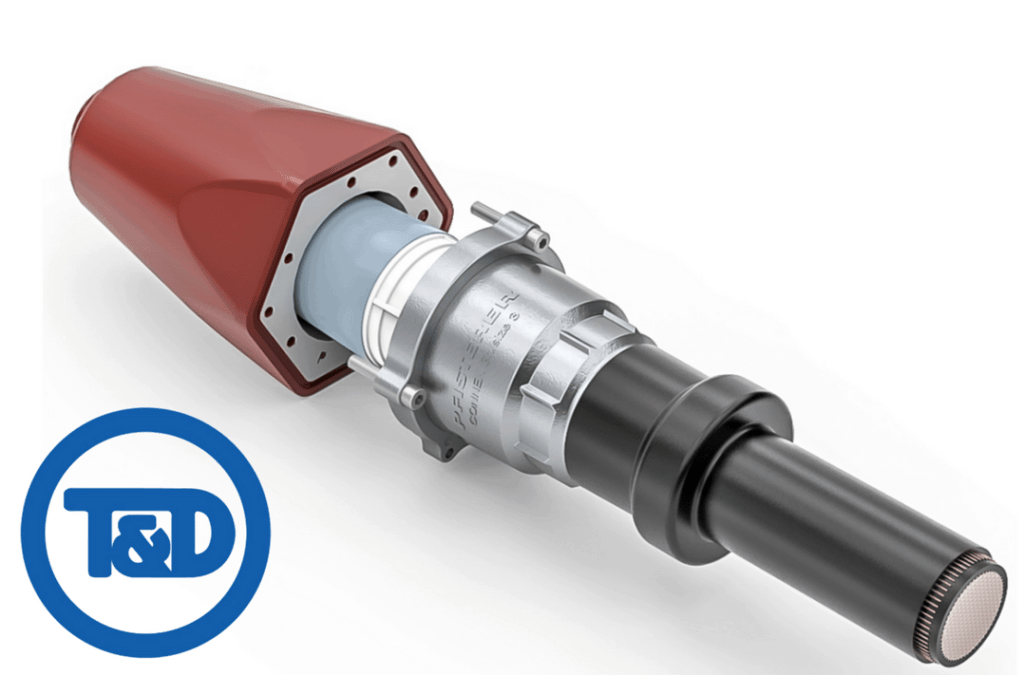

Thorne & Derrick hold the most extensive stocks of CONNEX Connectors for the connection and termination of 33kV Medium Voltage Power Cables into gas-insulated switchgear with inner cone type electrical equipment bushings – this includes 33kV Size 3 95-800sqmm and Size 3S Network Rail Approved CONNEX up to 52kV. A comprehensive range of Jointer Tools and CONNEX Tools are available including Size 3 bushing ancillaries dummy plugs, blind-caps and test leads for medium voltage power cable systems.
