Power Cable Joint Kits 0.6/1kV
Thorne & Derrick – Approved Specialist Distributors To The Rail Industry | LV MV HV
Safe, Reliable & Compliant Cable Accessories for Substation, Trackside & OHL Power Supply | 600V to 66kV

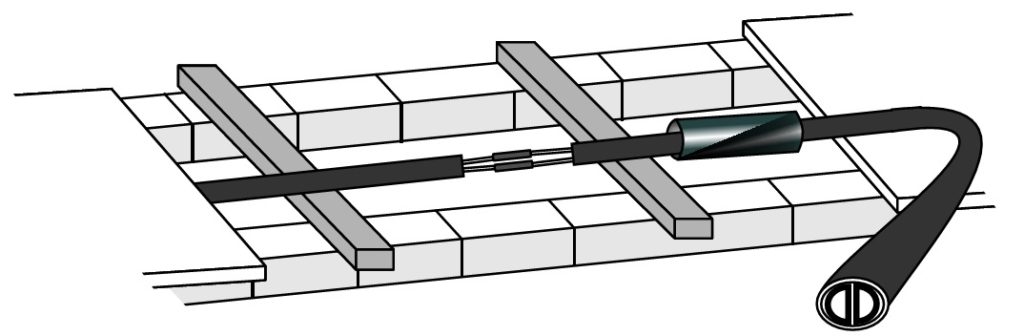

Trackside Signalling Power Supply Cable Joints
The below tables feature all power cable kits using heat shrink for stranded copper and solid sectoral aluminium conductors 0.6/1kV including SPS parts number, PADS Network Rail approvals and cable joint description.
Other Heat Shrink Cable Joints For Rail Cable Connections
Cable accessories with Network Rail approvals manufactured by 3M Electrical and using cold shrink are also available to joint, terminate, insulate and repair damaged cables.
| SPS PART NUMBER | P.A.D.S CAT. NO | JOINT DESCRIPTIONÂ SIZE (sqmm) | CABLE P.A.D.S CAT. NO INC. ALUMINIUM CONNECTORS |
| SPS 711 | 54/37095 | 2 CORE 16sqmm TYPE BR880 CABLE | — 6/142519 6/142609 6/142629 6/142639 6/142644 |
| SPS 712 | 54/37096 | 2 CORE 25sqmm TYPE BR880 CABLE | |
| SPS 713 | 54/37097 | 2 CORE 35sqmm TYPE BR880 CABLE | |
| SPS 714 | 54/37098 | 2 CORE 50sqmm TYPE BR880 CABLE | |
| SPS 715 | 54/37099 | 2 CORE 70sqmm TYPE BR880 CABLE | |
| SPS 716 | 54/37100 | 2 CORE 95sqmm TYPE BR880 CABLE | |
| SPS 1013 | APPLIED FOR | JOINT COMPLETE WITH MECHANICAL CONNECTORS TO SUIT 16-95sqmm 2 CORE SOLID AL POWER CABLE |  |
| SPS 832 | 54/37101 | 4 CORE 70sqmm TYPE BR880 CABLE | 6/151469 6/151494 |
| SPS 975 | 54/37102 | 4 CORE 95sqmm TYPE BR880 CABLE |
| SPS PART NUMBER | P.A.D.S CAT. NO | JOINT DESCRIPTIONÂ SIZE (sqmm) | CABLE P.A.D.S CAT. NO INC. COPPER CONNECTORS |
| SPS 101 | 54/37012 | 2 CORE 1.5-2.5sqmm TYPE B2 CABLE | 6/120081 & 6/120082 6/120083 6/120084 — 6/120085 6/120086x — — |
| SPS 102 | 54/15857 | 2 CORE 10sqmm TYPE B2 CABLE | |
| SPS 103 | 54/15891 | 2 CORE 35sqmm TYPE B2 CABLE | |
| SPS 104 | 54/15892 | 2 CORE 50sqmm TYPE B2 CABLE | |
| SPS 105 | 54/15878 | 2 CORE 70sqmm TYPE B2 CABLE | |
| SPS 106 | 54/15879 | 2 CORE 95sqmm TYPE B2 CABLE | |
| SPS 717 | 54/37074 | TRANSITION 2 CORE 35sqmm TYPE B2 TO 35sqmm PILC | |
| SPS 748 | 54/37090 | 4 CORE 10sqmm TYPE B2 CABLE |
| SPS PART NUMBER | P.A.D.S CAT. NO | JOINT DESCRIPTIONÂ SIZE (sqmm) | CABLE P.A.D.S CAT. NO CONNECTORS NOT INCLUDED |
| SPS 079 | 54/15759 | 2 CORE 10-35sqmm TYPE B2 CABLE | 6/120083 |
| SPS 080 | 54/15886 | 2 CORE 70-95sqmm TYPE B2 CABLE | 6/120084 |
| SPS 081 | 54/36100 | 4 CORE 70-95sqmm TYPE B2 CABLE | 6/120085 |
| SPS PART NUMBER | Â P.A.D.S CAT. NO | JOINT DESCRIPTIONÂ SIZE (sqmm) | CABLE P.A.D.S CAT. NO CONNECTORS NOT INCLUDED |
| SPS 916 | 54/37115 | 2 CORE 10-35sqmm CABLE END TERMINATING KIT | 6/12083 & 6/120084 |
Rail Cable Accessories, Electrification & Installation Equipment
Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.
Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
Cable Cleats | Cable Hangers | Cable Joints | Cable Glands | Cable Lugs | Cable Transits | Arc Flash Clothing
Power Cable Joint Kits 0.6/1kV – Heat Shrink Cable JointsDownload
