Elbow Connectors

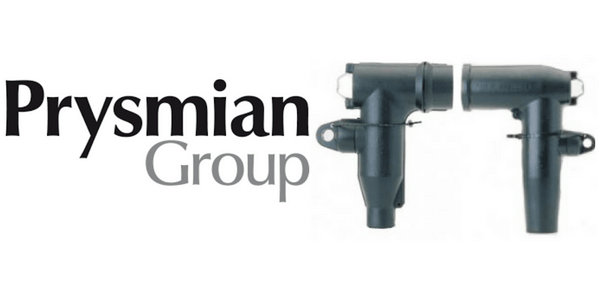

Prysmian medium elbow cable connectors to connect polymeric MV cables to transformers, switchgear units, motors, transformers and electrical equipment distributing electrical power at 11kV, 33kV and 66kV. Thorne & Derrick also offer a full range of Prysmian Separable Connectors.

Bushing Types

11kV 33kV

Interface A Bushings

200 Series Interface Type A Bushing

Connection Type – 7.9mm Plug-in Pin Contact
Voltage Range – 12-24kV
Current Rating – 250amps
Specification – CENELEC EN50180 & EN50181 – European standard for bushings above 1kV up to 52kV for liquid filled transformers

➡ Key Prysmian Products

MSCE/EC-250 Elbow Connector
MSCE/EC-250 Straight Connector
Interface A Bushing | Deadbreak Connectors 250Amp 7.9mm Pin Type Screened Separable Connectors

Interface A Bushing Connectors 250Amp 7.9mm Pin Type Screened Separable Connectors

Interface B Bushings

400 Series Interface Type B Bushing

Connection Type – 14mm Plug-in Pin Contact
Voltage Range – 11/12kV-33/36kV
Current Rating – 400amps
Specification – CENELEC EN50180 & EN50181 – European standard for plug-in type bushings above 1kV up to 52kV for liquid filled transformers

➡ Key Prysmian Products

MSCE/EC-400 Elbow Connector
MSCE/EC-400 Straight Connector
MSCE/EC-400 Tee Connector
Interface B Bushing | Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Interface B Bushing Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

➡ View the complete range of Separable Connectors & Cable Terminations (Heat Shrink or Coldfit) manufactured by Prysmian.

Prysmian Tee Connectors from the Formfit range connect and terminate Polymeric type cables into medium/high voltage electrical equipment with switchgear and transformer bushings to CENELEC EN 50180 (EN 5018) Standards – the deadbreak connectors can be immediately energised once installed onto the bushings of MV HV Power Systems. Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

MV HV High Voltage Cable Joints | Cable Terminations | Cable Connectors | Distributed from Stock | UK & Export Sales

Cables for Medium & High Voltage Power Systems

Prysmian | Connectors | Medium Voltage & High Voltage Cable Accessories

Prysmian MV cables are Made in Britain – standard MV cables range between 6.6kV, 11kV, 22kV up to 33kV including IEC 60502-2, BS6622 (BS7835) and BS7870 type plus Triplex variants. Medium voltage (MV) cables for commercial, industrial and utility distribution networks with XLPE insulation in single core (Unarmoured & Armoured AWA Aluminium) and 3-core (Armoured SWA Steel) designs – fire resistant (IEC-60332-3-22 or 24), flame retardant (IEC 60332-1-2), chemical barrier, LSZH Low Smoke Zero Halogen (IEC-60754-1) and hydrocarbon resistant cable sheath specifications are available. HEPR & EPR cable insulation with CWS (Copper Wire Screen) or CTS (Copper Tape Screen) and LS (Lead Sheath) are also available – contact us.

Prysmian Separable Connectors Thorne & Derrick distribute the full Prysmian Separable Connector range including Tee Connectors, Straight Connectors & Elbow Connectors
