Ripley UA01-7038 MV HV Cable Preparation Tool Kit

Ripley UA01-7038

Medium Voltage Cable Preparation Kit with Chamfer & Torque Tools

The Ripley UA01-7038 MV HV Cable Preparation Tool Kit is your all-in-one solution for preparing Medium Voltage (MV) Cables prior to the installation of cable accessories including joints, terminations and connectors. The Jointers Tools are designed for professionals who demand cable stripping accuracy and electrical cable safety, the UA01-7038 manufactured by by Ripley Tools allows for the removal of the cable jacket (sheath), semi-conductor layer and cable insulation with ease.

This kit features longitudinal and circumferential cutting tools, semi-con scorers, and a 30-degree insulation chamfering tool for clean, precise cable prep. Also includes a torque-assist probe insertion tool (PIT-1T) to ensure proper installation and connector engagement.

Whether you’re working on installations, cable repairs or upgrades, the Ripley UA01-7038 provides the Cable Jointing tools you need in one compact and durable case.

Ripley UA01-7038

Key Features & Benefits

The Ripley UA01-7038 kit enables safe and accurate cable preparation, using specialised tools that slit the cable jacket and remove insulation without causing damage to the conductor.

It is a complete, all-in-one solution, including tools for scoring, stripping, chamfering, and torquing, making it ideal for on-site installations.

Designed with field use in mind, the rugged canvas bag keeps all tools organised and protected during transport and storage.

The kit is compatible with both EPR and XLPE insulated medium voltage cables, ensuring versatility across a wide range of applications.

MV HV Cable Preparation Tool

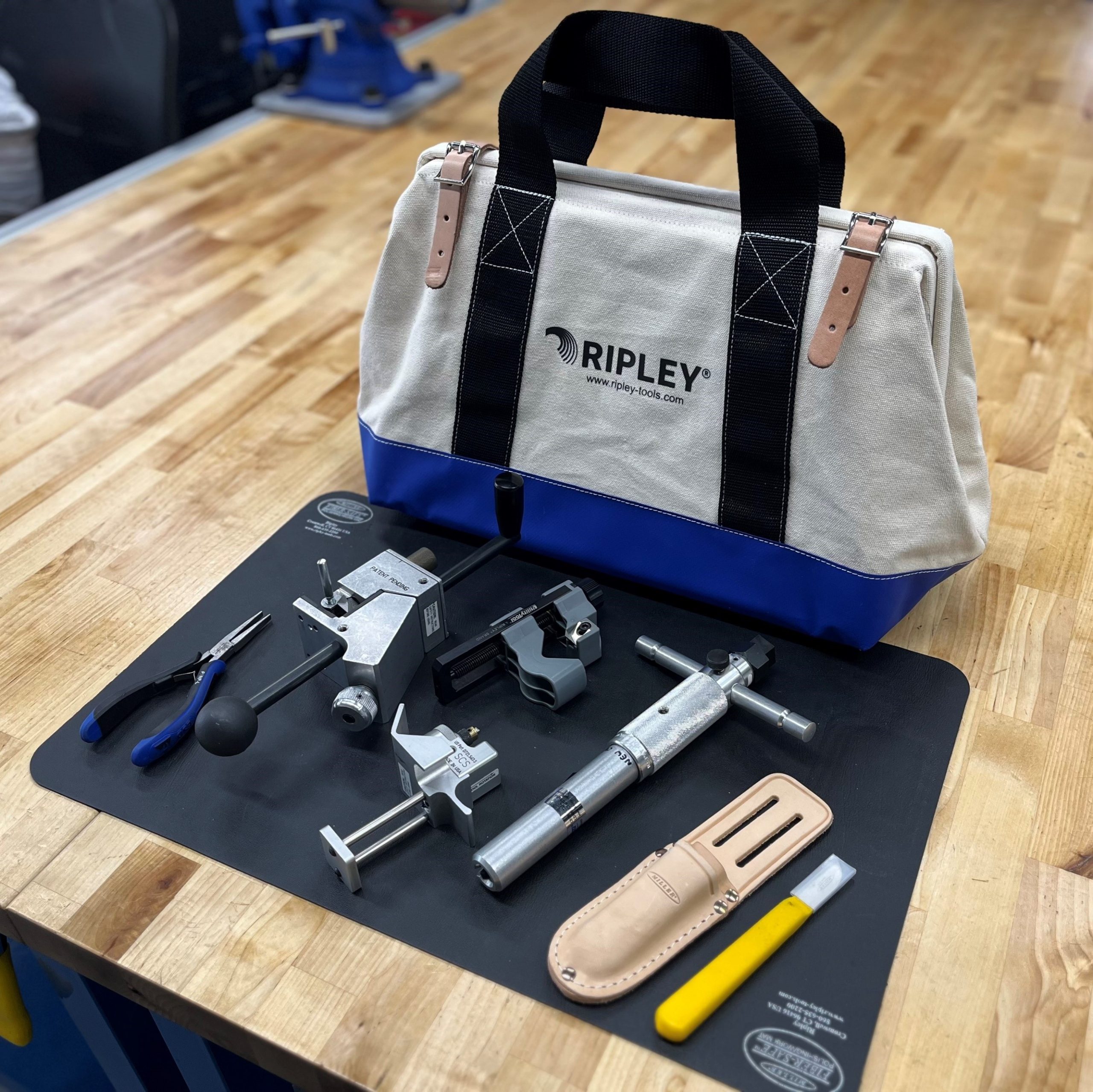

Ripley Ua01-7038 Kit Contents

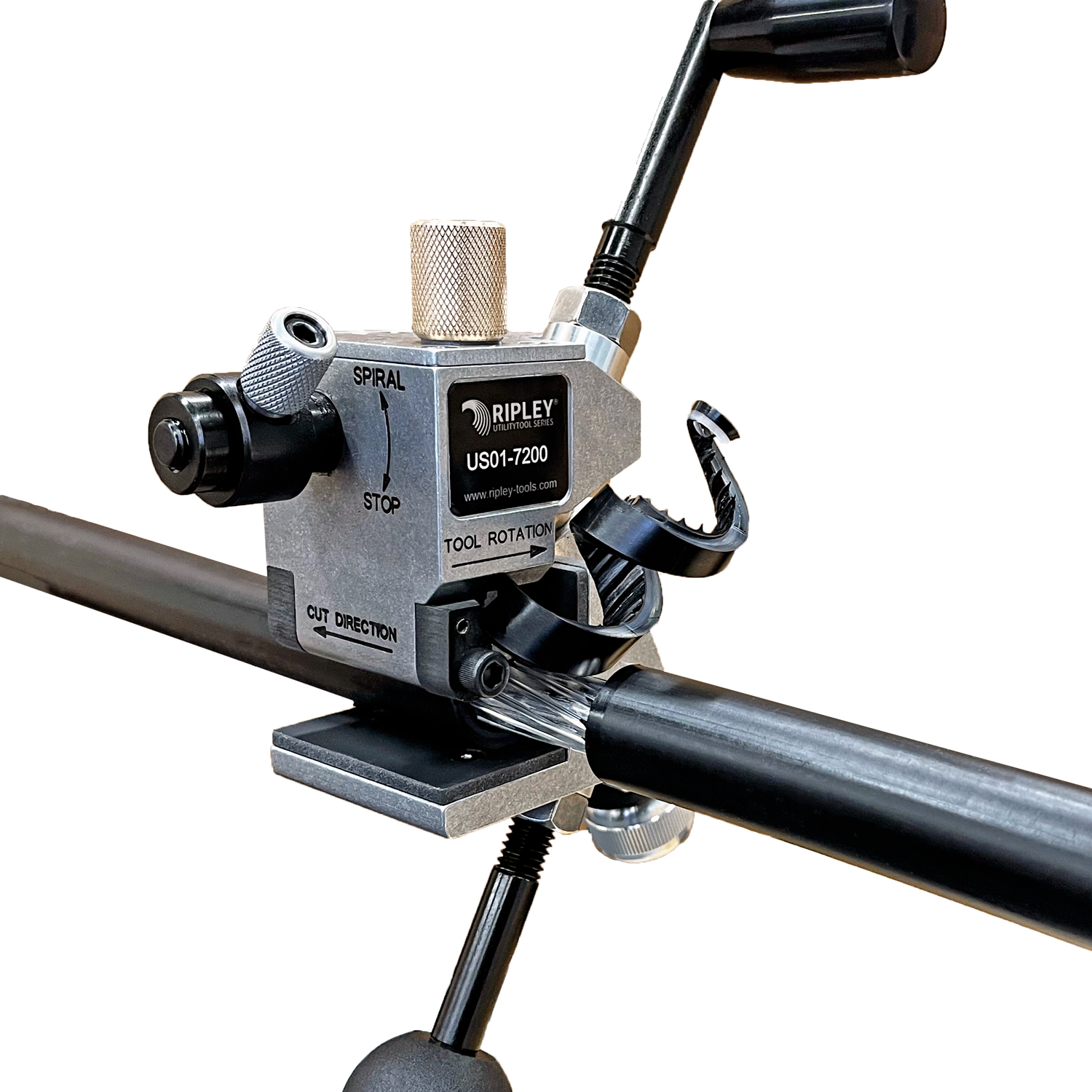

	Ripley US01-7200 Cable Stripping Tool The Ripley US01-7200 is a high-performance adjustable cable stripper engineered for safe and precise cable sheath and XLPE insulation removal from medium/high voltage power cables. The Cable Preparation Tool is designed for mid-span and cable end-stripping applications.

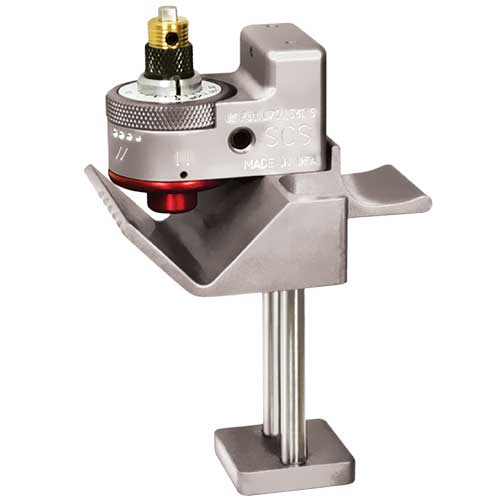

Ripley SCS Semi-Con Scorer Ripley SCS is a general purpose semi-con scoring tool for most medium voltage cable constructions and is equipped with a standard cable guide. The adjustable semi-con scoring tool removes easy strip type semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cables.

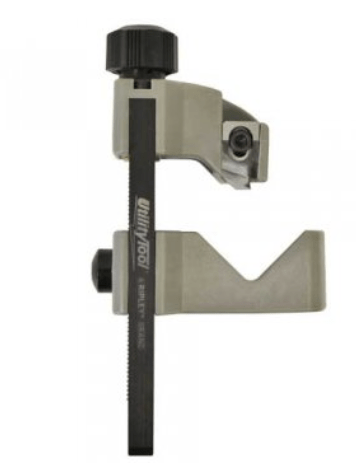

	Ripley US10 Cable Insulation Chamfering Tool The US10 tool provides a chamfer to the insulation on primary power cables as part of the cable preparation for elbow installation, cable splices, and terminations. The innovative US10 Cable Insulation Chamfering Tool utilises a size adjustment clamping system to quickly and easily adjust and lock onto the insulation.
Ripley PIT 1T Series Load Break Elbow Probe Insertion Tool The Ripley PIT 1T is a load break elbow probe insertion tool for 15kV to 34.5kV elbows, allowing for quick and easy insertion of the probe inside the elbow. Ripley PIT 1T tool prevents load break contamination & breakage and reduces cross threading and has a 125 in-lb torque delivery system.

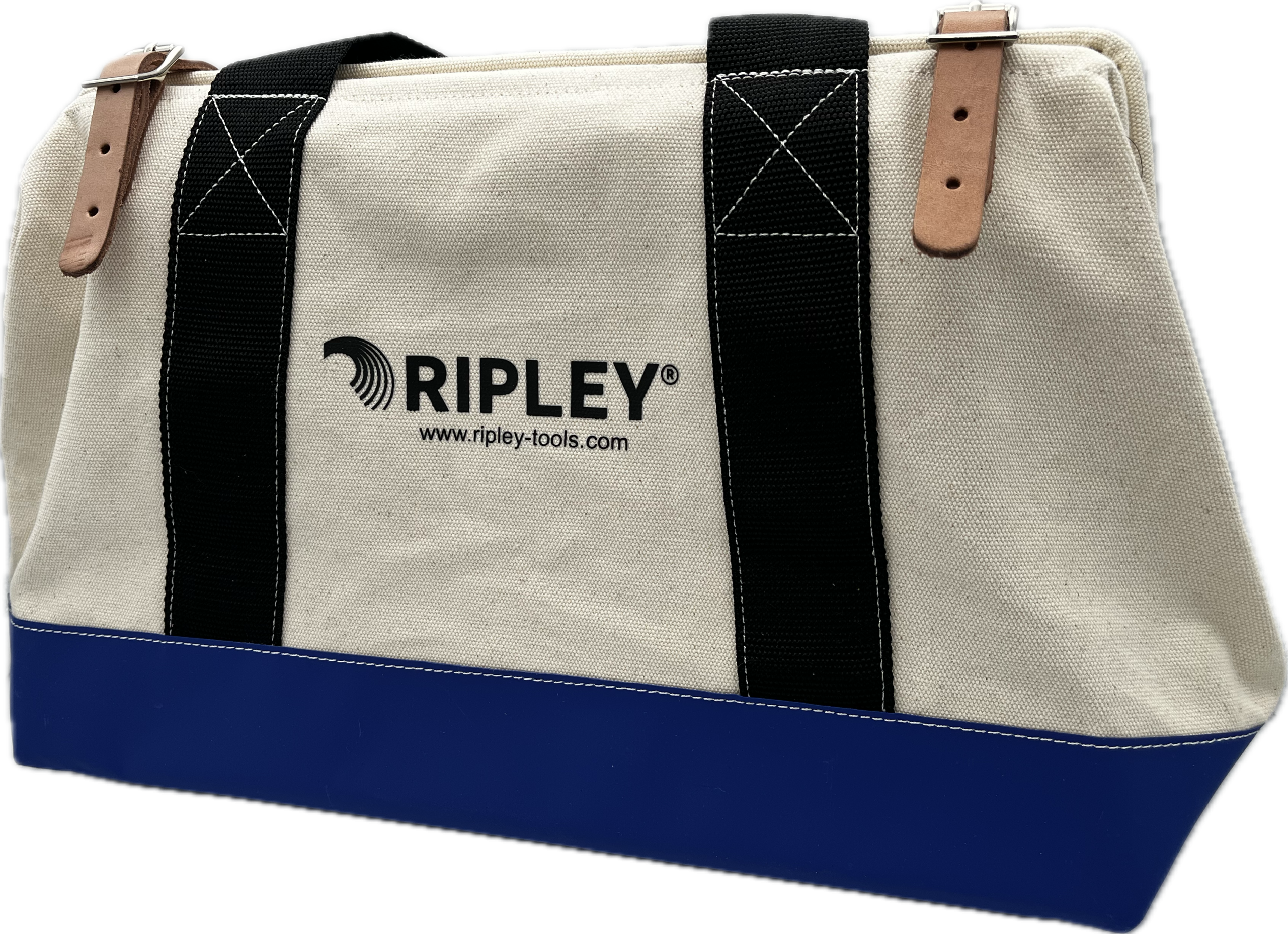

	Ripley UA01-6507 Canvas Bag The Ripley UA01-6507 is a lightweight, durable canvas bag designed to store and protect your tools. Made from reinforced material, it features separate internal pockets for organised storage and quick access. Ideal for field use, it keeps your essential tools secure and easy to carry.

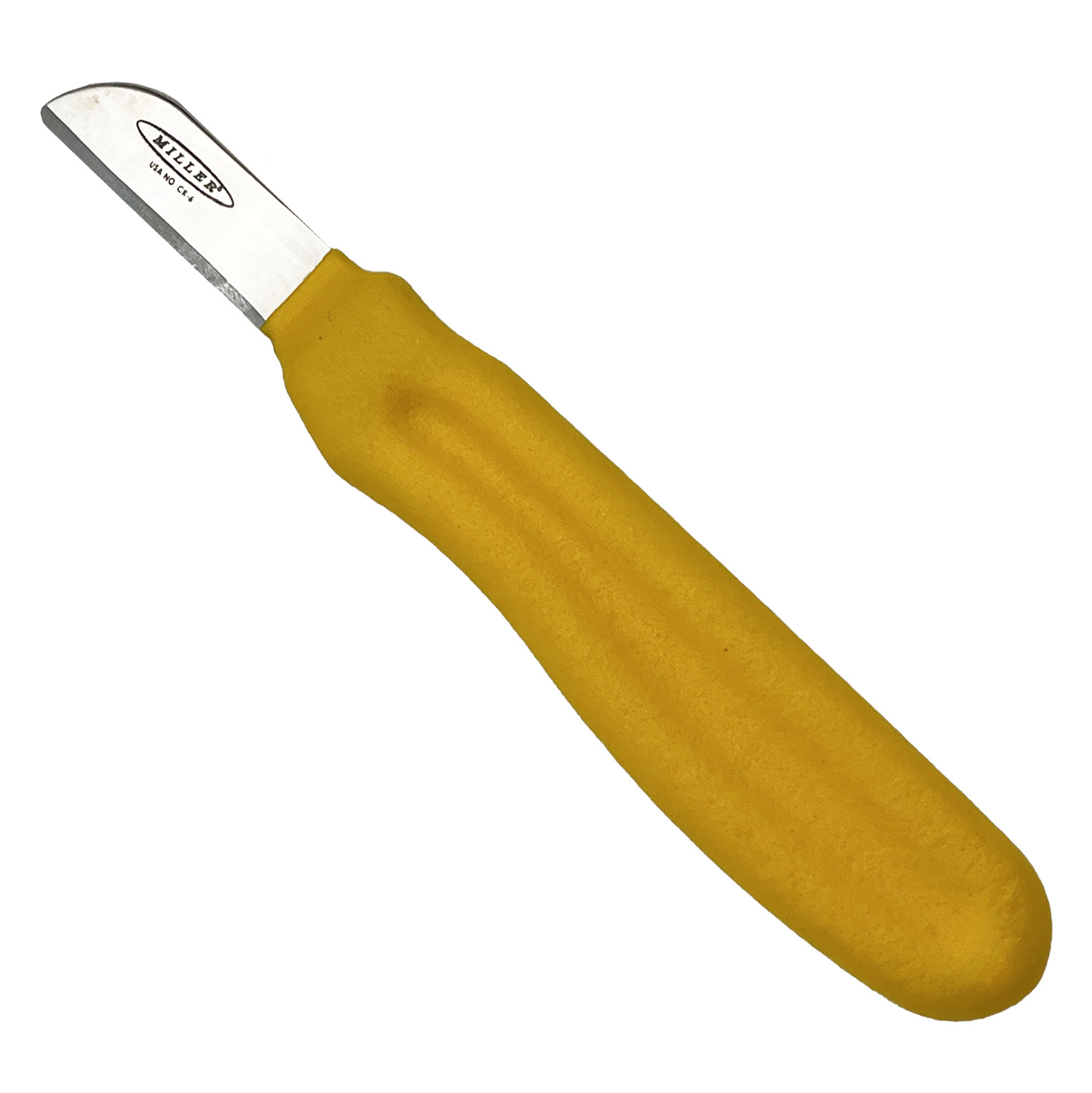

Ripley CK-6 Knife with Holster The Ripley CK-6 is a high-performance cable knife designed for safely stripping jackets from medium and low voltage cables. It features an adjustable blade depth for precision cuts without damaging underlying layers. The knife includes a durable holster

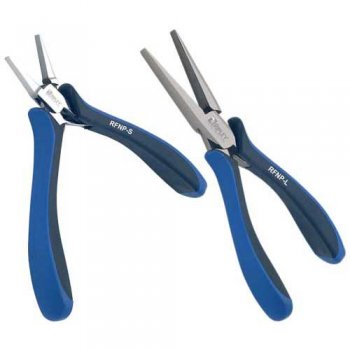

	Ripley RFNP-L Flat Nose Pliers Ripley RFNP short and long flat nose pliers are semi-con stripping tools with ergonomic slip free dual-compound thermoplastic grips for maximum comfort and durability. The RFNP cable stripping pliers are suitable for work on ESD workstations in accordance with IEC 61340-5-1, surface resistance 106-109 ohms/sq.

Cable Preparation Jointing Termination | MV HV Cable Tools | 600V 11kV 33kV 66kV 132kV
