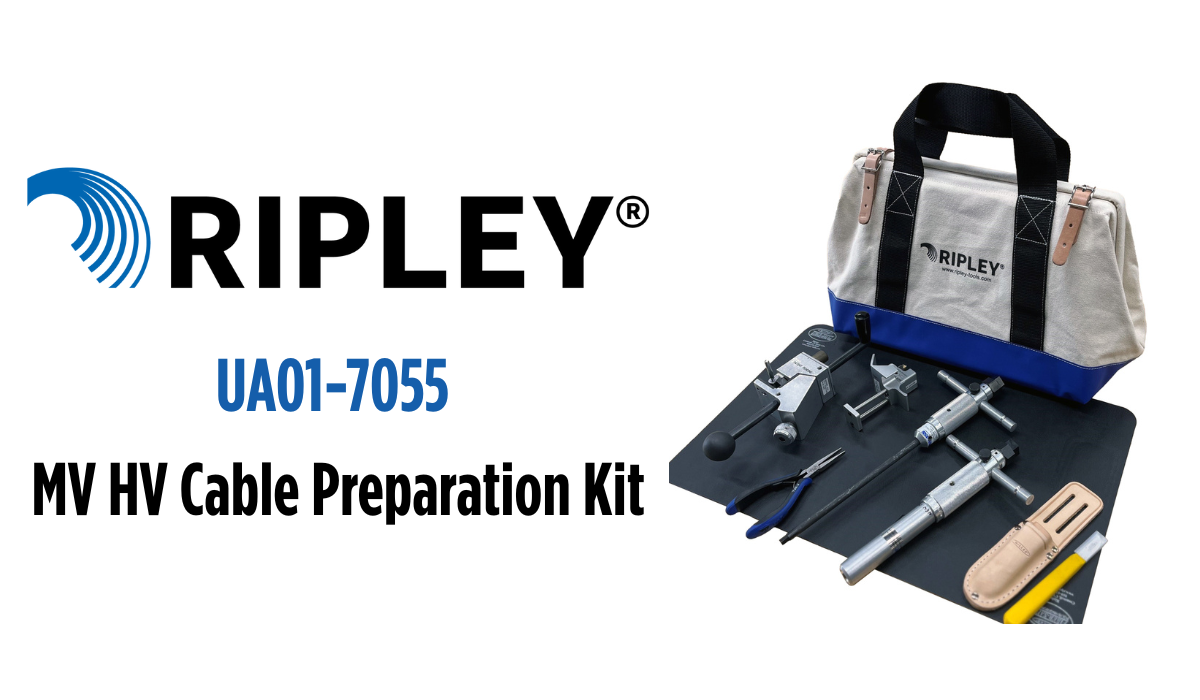

Ripley UA01-7055 MV HV Cable Preparation Tool Kit

Ripley UA01-7055

Complete Tool Kit for Medium & High Voltage Cable Jacket, Semi-Con & Insulation Removal

The Ripley UA01-7055 Cable Preparation Tool Kit provides professionals with a comprehensive and reliable solution for preparing medium and high voltage (MV & HV) power cables. Designed to safely remove cable jackets, semi-conductive layers, and insulation without damaging underlying conductors, the UA01-7055 manufactured by Ripley Tools includes high-performance tools trusted by utility, industrial, and renewables sectors.

Ideal for use with EPR and XLPE insulated cables, this versatile Cable Jointing tool supports precision stripping, scoring, and chamfering across a variety of cable constructions.

Ripley UA01-7055

Key Features & Benefits

The UA01-7055 kit enables precision cable preparation with tools engineered to slit the outer jacket and remove insulation without damaging the conductor. A comprehensive tool selection ensures every stage of MV/HV cable preparation—from jacket removal to semi-con scoring and insulation chamfering—is covered.

The tools are housed in a durable canvas storage bag for easy transport and organisation in the field. Designed for compatibility with both EPR and XLPE insulated cables, making it suitable for a wide range of cable types and voltage classes.

MV HV Cable Preparation Tool

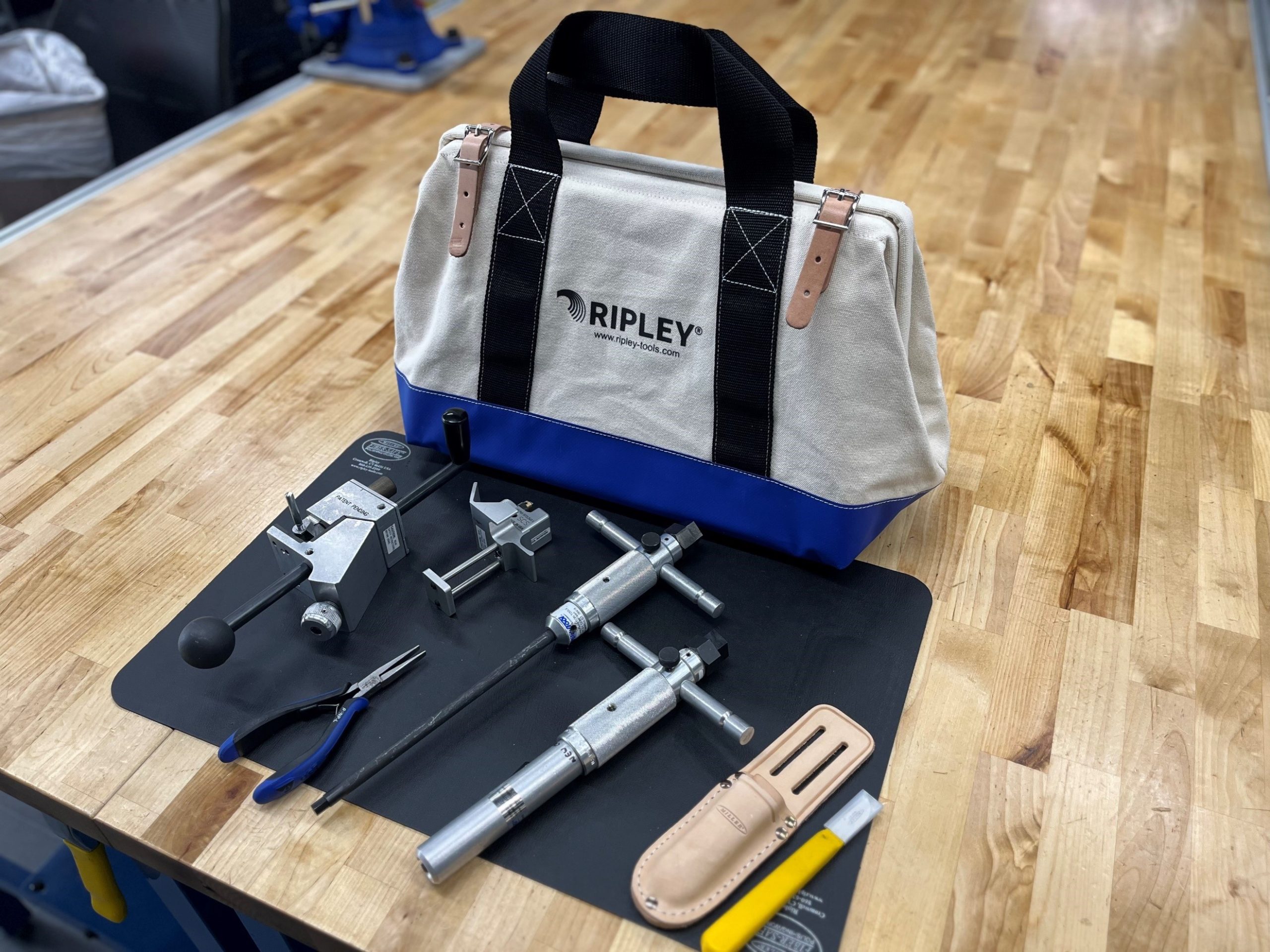

Ripley Ua01-7055 Kit Contents

	Ripley US01-7200 Cable Stripping Tool The Ripley US01-7200 is a high-performance adjustable cable stripper engineered for safe and precise cable sheath and XLPE insulation removal from medium/high voltage power cables. The Cable Preparation Tool is designed for mid-span and cable end-stripping applications.
Ripley SCS Semi-Con Scorer Ripley SCS is a general purpose semi-con scoring tool for most medium voltage cable constructions and is equipped with a standard cable guide. The adjustable semi-con scoring tool removes easy strip type semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cables.

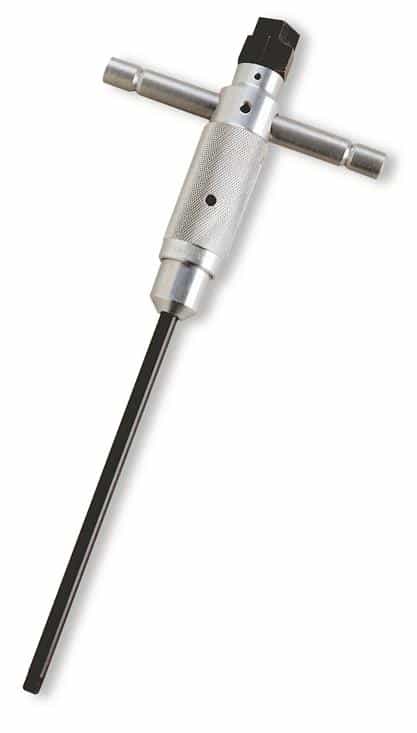

	Ripley LBIT 1T Load Break Bushing Insertion Tool Ripley LBIT-1T is a load break bushing insertion tool for 200 amp bushing inserts and has an internal hexagon socket drive. The Ripley LBIT-1T secures bushing inserts for positive installation and removal and has an adjustable T handle, 1″ (25.4 mm) square socket drive, 7/8″ (22.2 mm) hexagon for a wrench & standard ‘Penta’ head.
Ripley PIT 1T Series Load Break Elbow Probe Insertion Tool The Ripley PIT 1T is a load break elbow probe insertion tool for 15kV to 34.5kV elbows, allowing for quick and easy insertion of the probe inside the elbow. Ripley PIT 1T tool prevents load break contamination & breakage and reduces cross threading and has a 125 in-lb torque delivery system.
	Ripley UA01-6507 Canvas Bag The Ripley UA01-6507 is a lightweight, durable canvas bag designed to store and protect your tools. Made from reinforced material, it features separate internal pockets for organised storage and quick access. Ideal for field use, it keeps your essential tools secure and easy to carry.
Ripley CK-6 Knife with Holster The Ripley CK-6 is a high-performance cable knife designed for safely stripping jackets from medium and low voltage cables. It features an adjustable blade depth for precision cuts without damaging underlying layers. The knife includes a durable holster
	Ripley RFNP-L Flat Nose Pliers Ripley RFNP short and long flat nose pliers are semi-con stripping tools with ergonomic slip free dual-compound thermoplastic grips for maximum comfort and durability. The RFNP cable stripping pliers are suitable for work on ESD workstations in accordance with IEC 61340-5-1, surface resistance 106-109 ohms/sq.

Cable Preparation Jointing Termination | MV HV Cable Tools | 600V 11kV 33kV 66kV 132kV

Why Choose Ripley Tools?

Ripley Tools provide precision engineered, ergonomic design and rugged performance for use on underground power cables and overhead line conductors. The Ripley Cable Preparation Kits continue that legacy, offering Cable Jointers a trusted, high-quality tooling solution for preparing LV MV HV cables quickly, safely and accurately.
