Single or 3-Phase Plastic Service to a 3-Phase Plastic CNE 16sqmm to 35sqmm Service Branch Cable Joint
Single or 3-Phase Plastic Service to a 3-Phase Plastic CNE 16sqmm to 35sqmm Service Branch Cable Joint
- Product Category: Low Voltage LV Cable Joint
- Kit Type: Resin Cable Joint
- Application: Service Branch Joint
- Manufacturer: Sicame
- Kit Number: SBJ5/UPN
Cable Joint Installation Instructions
Sicame SBJ5/UPN
For details of cable preparation, the installation of mechanical connectors and associated components refer to the relevant sections of the UK Power Networks LV Jointing Manual opposite.
All dimensions in millimetres (mm).

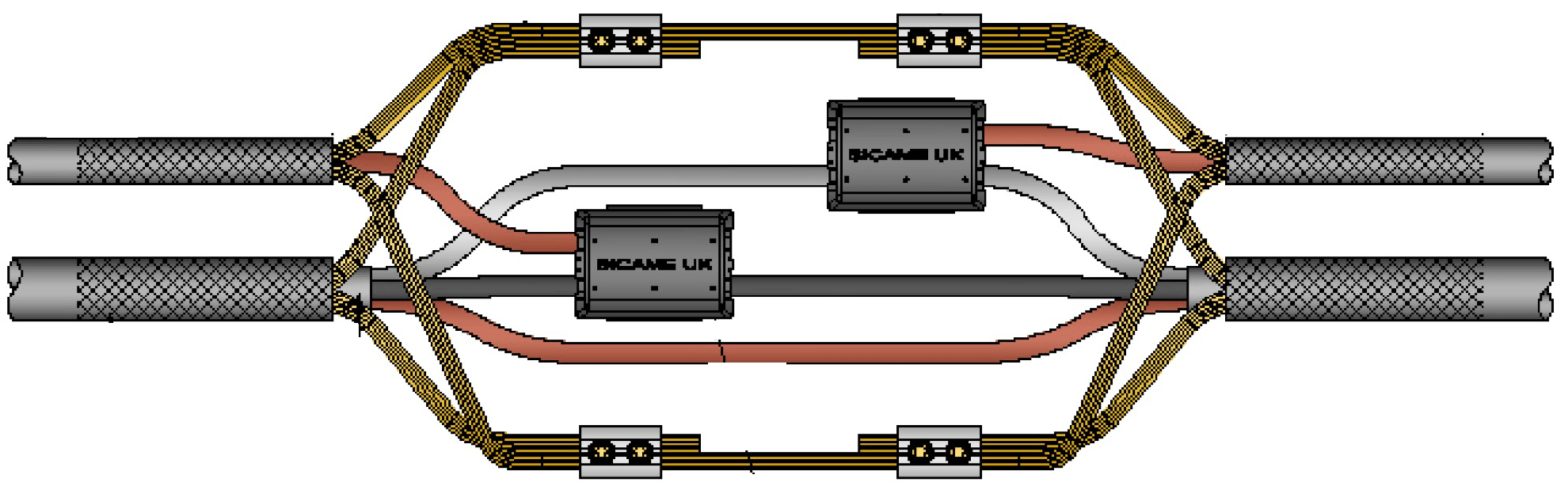

- Overlap the ‘live’ service cable with at least 300mm of the new cable
- Set the cables into their final jointing position and strip the cables using the plastic joint shell as a guide
- Prepare the through service cable CNE wires and connect to the branch service cable wires, using the MF4 connectors.
- Fit the MB21 phase connector onto the phase cores.
- Fit the cable joint shell, checking for a minimum clearance of 10mm between the joint shell and the completed cable joint
- Fill the cable joint shell with the correct amount of Prysmian JEM resin as shown in the table below
Cable Jointing Materials
| Cable Size (sqmm) | Number of Services (16 to 35sqmm) | UKPN Stores Code | Sicame Cable Joint Kit Number | Module Number SSM1/UPN – Stores Code | Empty Shell Jointing Resin Volume | |
| 16sqmm | 16sqmm | 2 | 02706V | SBJ5/UPN | 1 x 01706R | 3.4 Litres |
| 35sqmm | 35sqmm | 3 | 2 x 01706R | |||
Sicame SBJ5/UPN Cable Joint
♦ Note: LV Cable Joints are subject to change according to tender contract awards, manufacturer joint kit amends and new cable applications – always check with Thorne & Derrick that the kit referenced is the current approved and available cable joint.
