Single-Phase 4sqmm to 35sqmm Plastic CNE Service Branch Cable Joint

Single-Phase 4sqmm to 35sqmm Plastic CNE Service Branch Cable Joint

• Product Category: Low Voltage LV Cable Joint
• Kit Type: Resin Cable Joint
• Application: Service Branch Joint
• Manufacturer: Sicame
• Kit Number: SBJ2/UPN

Cable Joint Installation Instructions

Sicame SBJ2/UPN

For details of cable preparation, the installation of mechanical connectors and associated components refer to the relevant sections of the UK Power Networks LV Jointing Manual opposite.

All dimensions in millimetres (mm).

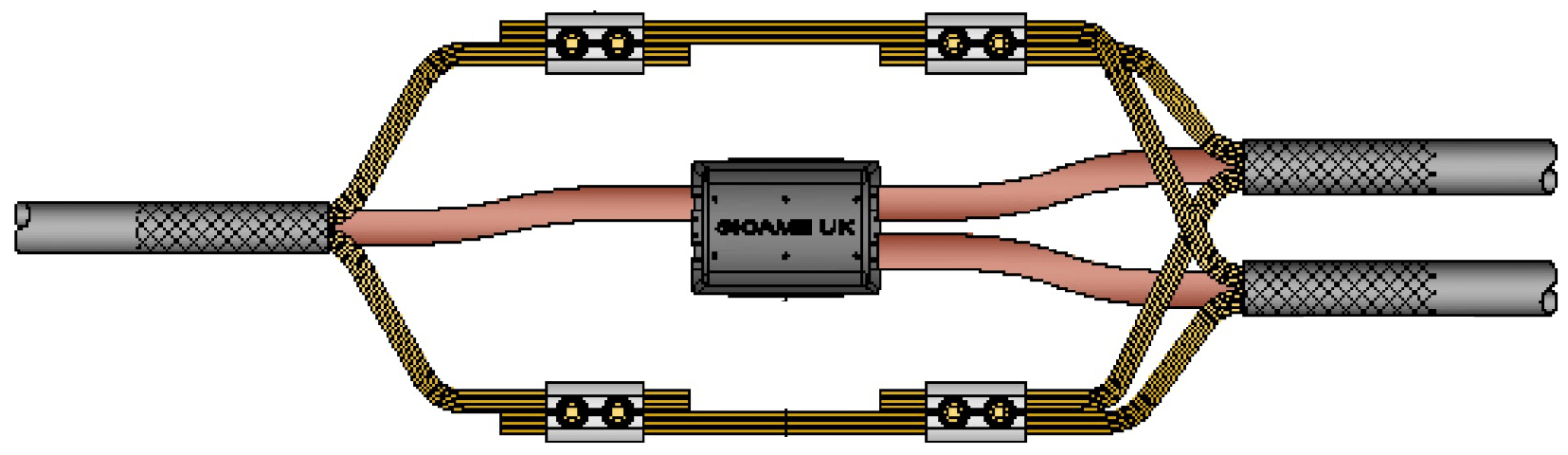

• Overlap the ‘live’ service cable with at least 300mm of the new cable
• Set the cables into their final jointing position and strip the cables using the plastic joint shell as a guide
• Prepare the through service cable CNE wires and connect to the branch service cable wires, using the MF4 connectors.
• Fit the MB21 phase connector onto the phase cores.
• Fit the cable joint shell, checking for a minimum clearance of 10mm between the joint shell and the completed cable joint
• Fill the cable joint shell with the correct amount of Prysmian JEM resin as shown in the table below

Cable Jointing Materials

Sicame SBJ2/UPN Cable Joint

♦ Note: LV Cable Joints are subject to change according to tender contract awards, manufacturer joint kit amends and new cable applications – always check with Thorne & Derrick that the kit referenced is the current approved and available cable joint.

Cable Joints | Low Voltage LV | Resin | Cold Shrink Joints | Heat Shrink Joints | 600V 100V Cables

Data Sheets

• Cable Joints LV – UK Power Networks LV Cable Jointing Manual – Version 4 I 2015
  Download
