Single-Phase Plastic CNE to 2-Core PILC 4sqmm to 35sqmm Service Branch Cable Joint

Product Category: Low Voltage LV Cable Joint
Kit Type: Resin Cable Joint
Application: Service Branch Joint
Manufacturer: Sicame
Kit Number: SBJ3/UPN

Cable Joint Installation Instructions

Sicame SBJ3/UPN

For details of cable preparation, the installation of mechanical connectors and associated components refer to the relevant sections of the UK Power Networks LV Jointing Manual opposite.

All dimensions in millimetres (mm).

Set the cables in to their final jointing position and strip the cables, using the plastic joint shell as a guide.
Remember to install a temporary continuity bond before removing the lead sheath.

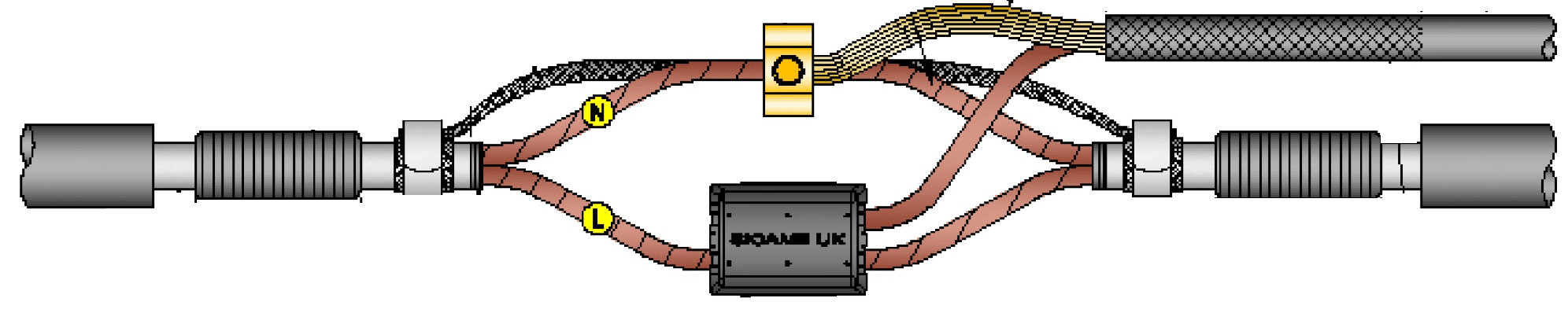

Set the cores ready for connection.
Use the NE26 neutral earth connector to connect together the bunch of neutral earth wires from the plastic service cable, the neutral conductor of the PILC service cable and the earth braid for the neutral to lead sheath bond.
Insulate the connector with the CR sheet patch.
Connect earth braid to lead sheath at each end of the joint using the mechanical earth bond kits.
Use the MB21 phase connector to connect the two phase conductors together.
Apply the moisture barrier mastic tape to the lead sheaths next to the mechanical earth bonds.
Fit the cable joint shell, checking for a minimum clearance of 10mm between the joint shell and the completed cable joint
Fill the cable joint shell with the correct amount of Prysmian JEM resin as shown in the table below

Cable Jointing Materials

Cable Size (sqmm)		UKPN Stores Code	Sicame Cable Joint Kit Number	Empty Shell Jointing Resin Volume
4sqmm	16sqmm	02705L	SBJ3/UPN	3.4 Litres
16sqmm	35sqmm
35sqmm

Sicame SBJ3/UPN Cable Joint

♦ Note: LV Cable Joints are subject to change according to tender contract awards, manufacturer joint kit amends and new cable applications – always check with Thorne & Derrick that the kit referenced is the current approved and available cable joint.
