Solarflex 1500V DC Cable By HelukabelÂ
SOLARFLEX®-X H1Z2Z2-K solar cables by Helukabel are used for wiring solar modules. The Solarflex Helukabel 1500V DC is suitable for direct burial (recommendation laying in pipes). This solar cable is not suitable for permanent installation in water.
The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The solar cable is suitable for use in and on devices and systems with protective insulation (protection class II).
See also |Â Jointing, Grounding & Terminating DC Solar Cables

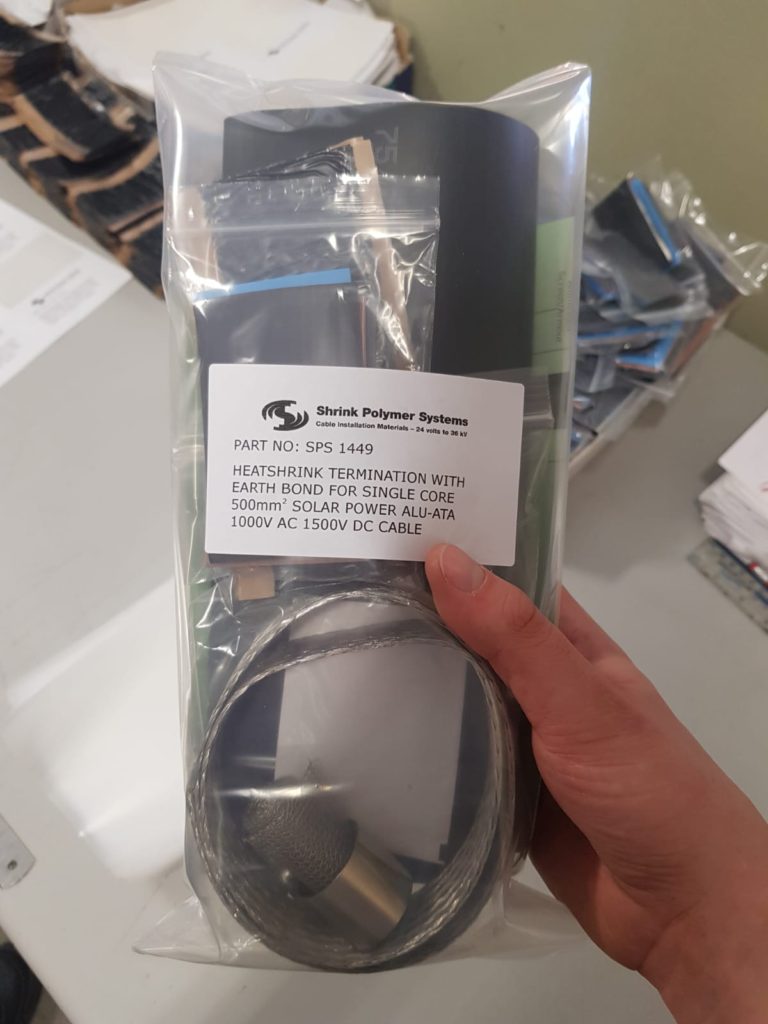

Solar Cable Termination
Solarflex®-X H1Z2Z2-K TECHNICAL DATA
Cross-linked single core cable acc. to DIN VDE 0283-618 / DIN EN 50618
- Temperature range: Fixed -40°C to +90°C
- Permissible operating temperature of the conductor: +120°C
- Nominal voltage: AC U0/U 1000/1000 V / DC U0/U 1500/1500 V
- Test voltage: 6500 V
- Minimum bending radius: Fixed 5x Outer-Ø
Solar Cable Structure
- Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Core insulation: cross-linked compound
- x = without protective conductor
- Outer sheath: cross-linked compound
- Cable sheath colour: see table
Cable Properties
- Resistant to: UV radiation, ozone, weathering effects, water
- For outdoor use
- Direct burial
- Halogen-free solar cable
- Halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
- Smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034-1+2 / IEC 61034-1+2
- UV-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
- Ozone-resistant acc. to DIN VDE 0283-618 / DIN EN 50618
- Weather-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
- Water-resistant acc. to DIN VDE 0285-525-2-21 / DIN EN 50525-2-21 Appendix E
- DC Voltage resistance of the insulation acc. to DIN VDE 0283-618 / DIN EN 50618 Tab. 2
- Certifications: TÜV Rheinland
Solarflex 1500V DC Part Codes
The cable conductor is metrically (sqmm) constructed, AWG numbers are approximated, and are for reference only:
No. cores x cross-sec. sqmm | AWG, approx. | Outer-Ø min – max mm | Cu-weight kg/km | Weight kg/km, approx. | BLUE Part No |
RED Part No |
BLACK Part No |
1 x 2.5 | 14 | 4.8 – 5.4 | 24.0 | 45.0 | 713544 | 713543 | 713529 |
1 x 4 | 12 | 5.2 – 5.9 | 38.4 | 60.0 | 713546 | 713545 | 713530 |
1 x 6 | 10 | 5.8 – 6.4 | 57.6 | 80.0 | 713570 | 713569 | 713531 |
1 x 10 | 8 | 6.9 – 7.7 | 96.0 | 126.0 | 713572 | 713571 | 713532 |
1 x 16 | 6 | 7.7 – 8.5 | 153.6 | 170.0 | 11022069 | 11022068 | 11022067 |
1 x 25 | 4 | 10.0 – 10.8 | 240.0 | 270.0 | 11022072 | 11022071 | 11022070 |
1 x 35 | 2 | 11.5 – 12.3 | 336.0 | 365.0 | 11022075 | 11022074 | 11022073 |
1 x 50 | 1 | 13.2 – 14.0 | 480.0 | 508.0 | 11022078 | 11022077 | 11022076 |
1 x 70 | 2/0 | 15.6 – 16.6 | 672.0 | 729.0 | 11022081 | 11022080 | 11022079 |
1 x 95 | 3/0 | 17.4 – 18.4 | 912.0 | 923.0 | 11022084 | 11022083 | 11022082 |
1 x 120 | 4/0 | 19.4 – 20.4 | 1152.0 | 1178.0 | 11022087 | 11022086 | 11022085 |
1 x 150 | 300 kcmil | 20.7 – 21.7 | 1440.0 | 1460.0 | 11022090 | 11022089 | 11022088 |
1 x 185 | 350 kcmil | 24.0 – 25.0 | 1776.0 | 1777.0 | 11022093 | 11022092 | 11022091 |
1 x 240 | 450 kcmil | 26.6 – 27.8 | 2304.0 | 2252.0 | 11022096 | 11022095 | 11022094 |
