Track Circuit Cable Joint Kits

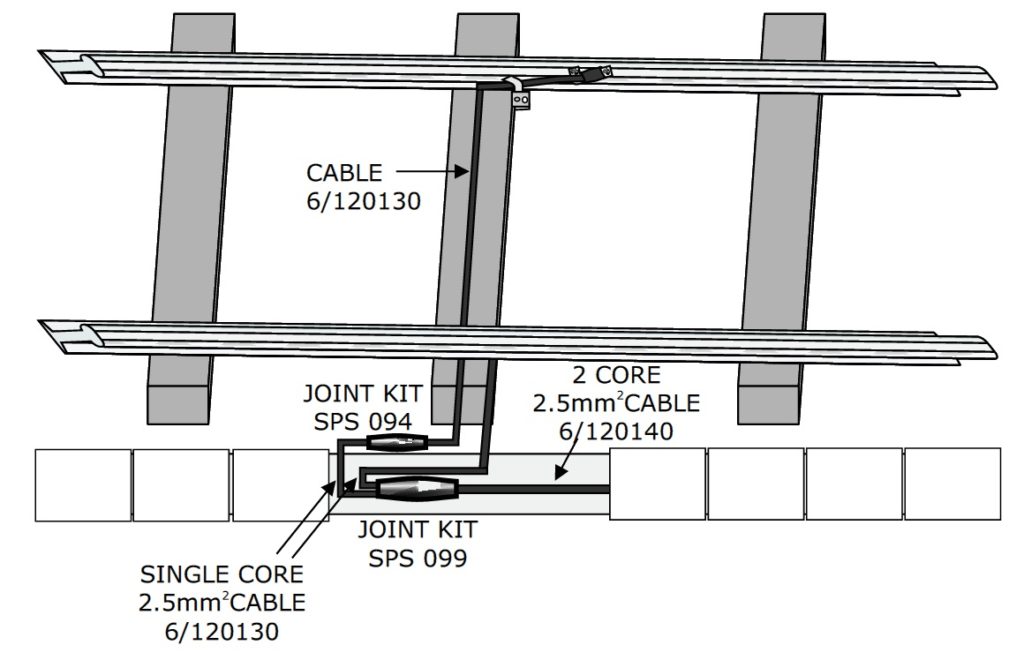

The below table features all track circuit cable joint kits complete with crimp connectors using heat shrink and including SPS part numbers, PADS Network Rail approvals, cable joint description and style.

SPS PART NUMBER P.A.D.S CAT NO. CABLE JOINT DESCRIPTION CABLE JOINT STYLE
SPS 094 54/15875 JOINT KIT FOR SINGLE CORE 2.5sqmm TC CABLE (10 CABLE JOINTS PER KIT) 1 x 6/120130     1 x 6/120130Cable Joint Style
SPS 095 54/37005 JOINT KIT FOR SINGLE CORE 10sqmm TC CABLE (10 CABLE JOINTS PER KIT) 1 x 6/120062      1 x 6/120062Cable Joint Style
SPS 099 54/15289 JOINT KIT FOR 2 x SINGLE CORE 2.5sqmm TC CABLE
TO 1 x 2 CORE 2.5sqmm
2 x 6/120130       1 x 6/120140
Cable Joint Style
SPS 100 54/15873 JOINT KIT FOR 2 x SINGLE CORE 10sqmm TC CABLE
TO 1 x 2 CORE 2.5sqmm
2 x 6/120062       1 x 6/120140
Cable Joint Style

Rail Cable Accessories, Electrification & Installation Equipment

Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.

Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
