Track Circuit Rail Connection Components

Rail Cables Accessories Electrical Equipment

Thorne & Derrick – Approved Specialist Distributors To The Rail Industry | LV MV HV

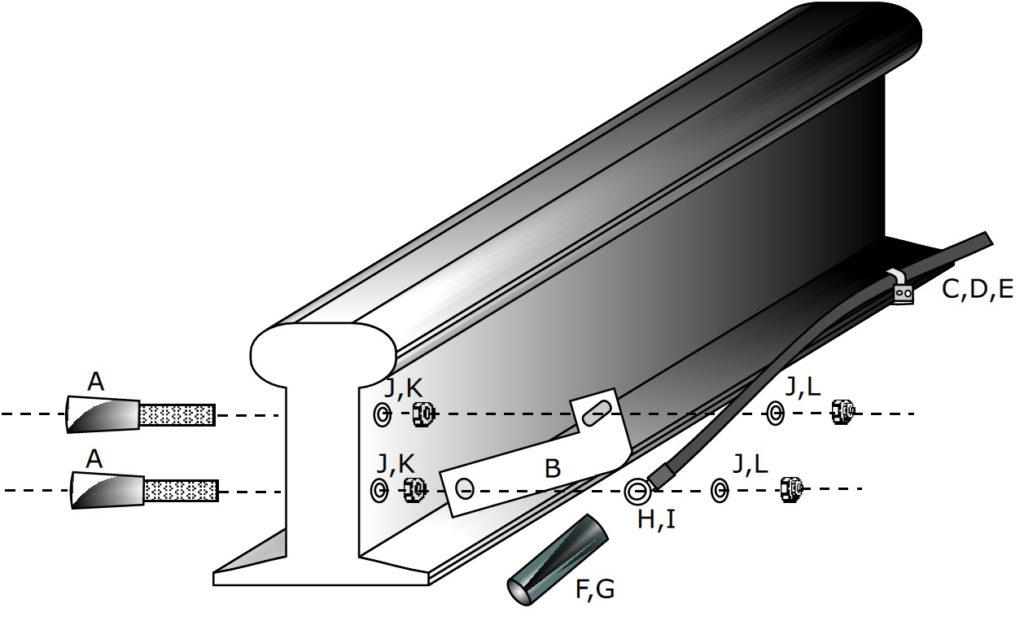

The below table shows a guide to track circuit rail connection kit components including the SPS part numbers and PADS Network Rail approval numbers.

LETTER CODE	SPS PART NUMBER	P.A.D.S CAT. NO	COMPONENTS
A	SPS 696	86/44013	STAINLESS STEEL TAPER PIN
B	SPS 697	86/43488	STAINLESS STEEL “L” BRACKET
C	SPS 115	86/43489	FLANGE CLIP WITH 12mm CABLE CLEAT
D	SPS 116	86/43498	FLANGE CLIP WITH 15mm CABLE CLEAT
E	SPS 117	86/43499	FLANGE CLIP WITH 25mm CABLE CLEAT
F	TMI 22/6/55	55/120989	HEATSHRINK SUPPORT SLEEVE 2.5sqmm CABLE
G	TMI 30/8/55	54/158116	HEATSHRINK SUPPORT SLEEVE 35sqmm CABLE
H	AMP 324063	54/119568	2.5sqmm CRIMP RING TERMINAL (BLACK)
I	T35-6	54/119492	35sqmm CRIMP TERMINAL
J	A2 SS M6 FMA WASHER	3/190825	STAINLESS STEEL A2 M6 FMA WASHER
K	A2 SS M6 FULL NUT	3/175013	STAINLESS STEEL A2 M6 FULL NUT
L	A2 SS SELF LOCK NUT	3/179995	STAINLESS STEEL A2 SELF LOCK NUT

Rail Cable Accessories, Electrification & Installation Equipment

Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.

Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
