Type 201 & 211 Trailing Cable

Type 201 and 211 Trailing Cable BS6708 Description: Type 211 – 3 off flexible tinned annealed copper (TAC) conductors, MEPR insulated and copper/nylon screened, plus 1 unscreened earth core, laid up around a PCP centre, elastomeric bedding, pliable galvanised steel wire armoured and sheathed overall with a heavy duty flame retardant elastomeric compound.

Type 201 – 3 off flexible tinned annealed copper (TAC) conductors, MEPR insulated and copper/nylon screened, laid up around a PCP cradle centre, elastomeric bedding, pliable galvanised steel wire armoured and sheathed overall with a heavy duty flame retardant elastomeric compound.

Cable Voltage 640 / 1100 Volt.

BCS 504 refers.

➡ See complete range of flexible and trailing Mining Cables

mining Cable Specification

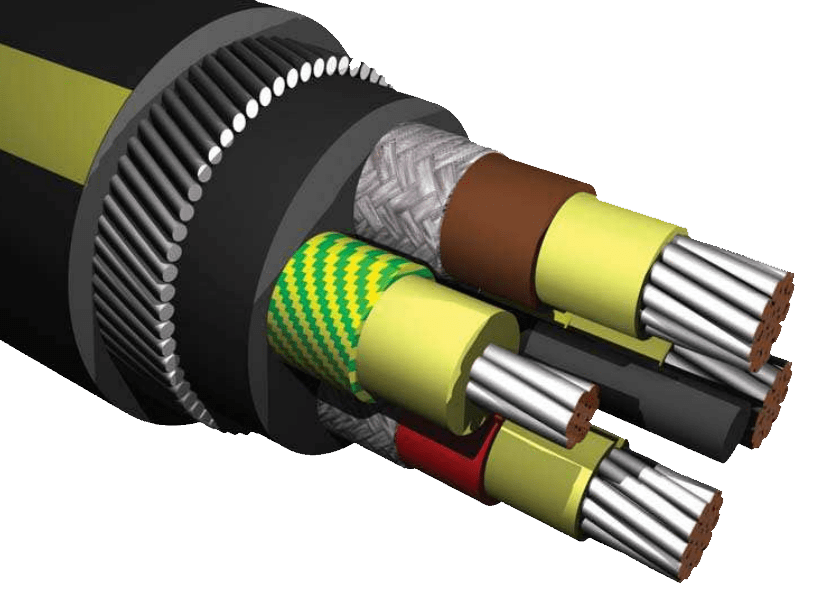

Type 211

1. Phase conductor – TAC flex conductors x 3
2. Phase insulation – Extruded MEPR yellow
3. Phase identification – Proofed tape – red, yellow, brown
4. Phase core screen – Composite copper/nylon braid
5. Earth conductor – TAC flex conductor x 1
6. Earth insulation – Extruded MEPR yellow
7. Earth identification – Proofed tape – green, yellow
8. Lay up – 3 power cores + 1 earth core laid up around an elastomeric centre
9. Bedding sheath – Extruded PCP black
10. Pliable armour – Galvanised steel wires
11. Overall jacket – Extruded heavy duty PCP black with yellow stripe

Type 201

1. Phase conductor – TAC flex conductors x 3
2. Phase insulation – Extruded MEPR yellow
3. Phase identification – Proofed tape – red, yellow, brown
4. Phase core screen – Composite copper/nylon braid
5. N/A
6. N/A
7. N/A
8. Lay up – 3 power cores power cores laid up around an elastomeric cradle centre
9. Bedding sheath – Extruded PCP black
10. Pliable armour – Galvanised steel wires
11. Overall jacket – Extruded heavy duty PCP black with yellow stripe
