Type 307 Trailing Cable

Type 307 Trailing Cable BS6708 Description: Flexible tinned annealed copper (TAC) conductors, MEPR insulated, 3 copper/nylon screened power cores plus 1 unscreened pilot core, laid up around a flexible TAC bare earth conductor, sheathed overall with a heavy duty flame retardant elastomeric compound. The pilot core is built-up to the same diameter as the screened phase cores.

Cable Voltage 1900 / 3300 Volt.

➡ See complete range of flexible and trailing Mining Cables

mining Cable Specification

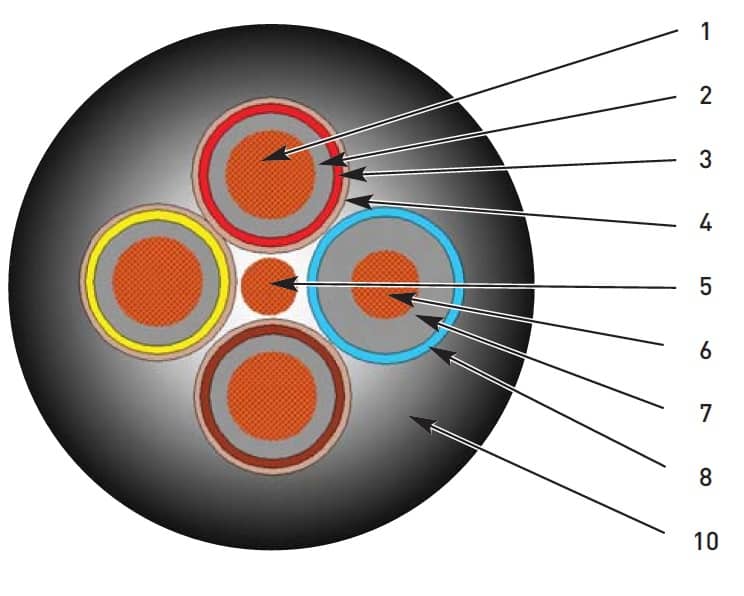

1. Phase conductor – (3 off) TAC flex conductors
2. Phase insulation – Extruded MEPR black
3. Phase identification – Proofed tape – red, yellow, brown
4. Phase core screen – Composite copper/nylon braid
5. Earth conductor – (1 off) TAC flex conductor
6. Pilot conductor – (3 off) TAC flex conductors
7. Pilot insulation – Extruded MEPR black
8. Pilot identification – Proofed tape – blue
9. Lay up – 3 power cores + 1 pilot core laid up around the uninsulated earth core
10. Overall sheath – Extruded heavy duty PCP black with red stripe
