Type 631 Trailing Cable

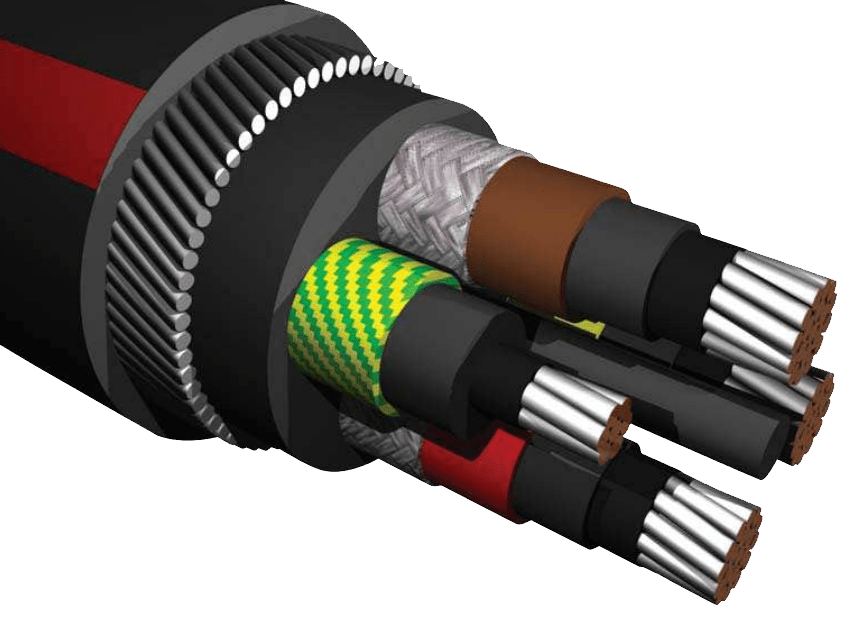

Type 631 Trailing Cable BS6708 Description: Flexible tinned annealed copper (TAC) conductors, semicon/ MEPR insulated, 3 copper/nylon screened power cores, plus 1 unscreened earth core, laid up around a PCP centre, elastomeric bedding sheathed, pliable galvanised steel wire armoured and sheathed overall with a heavy duty flame retardant elastomeric compound.

Cable Voltage 3800 / 6600 Volt.

BCS 504 refers.

âž¡ See complete range of flexible and trailing Mining Cables

mining Cable Specification

  1. Phase conductor – (3 off) TAC flex conductors
  2. Phase insulation – Semi-con, extruded MEPR black
  3. Phase identification – Proofed tape – red, yellow, brown
  4. Phase core screen – Composite copper/nylon braid
  5. Earth conductor – (1 off) TAC flex conductor
  6. Earth insulation – Semi-con. Tape extruded MEPR black
  7. Earth identification – Proofed tape – green, yellow
  8. Lay up – 3 power cores + 1 earth core laid up around an elastomeric centre
  9. Bedding sheath – Extruded PCP black
  10. Pliable armour – Galvanised steel wires
  11. Overall sheath – Extruded heavy duty PCP black with red stripe

Type 631 Trailing Cable
