Type 7S Trailing Cable

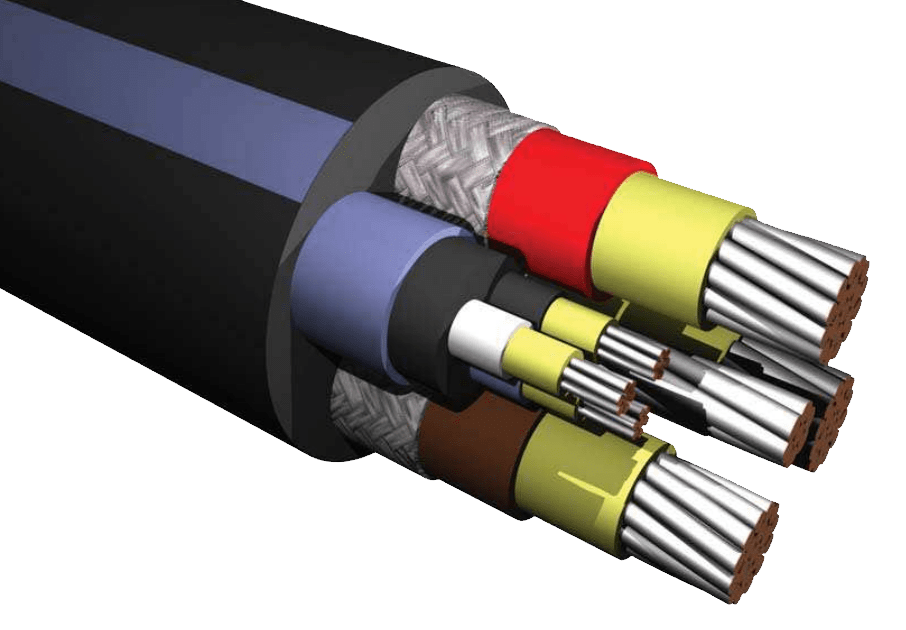

Type 7S Trailing Cable BS6708 Description: Flexible tinned annealed copper (TAC) conductors, MEPR insulated, 3 copper/nylon screened power cores plus 1 unscreened pilot unit, laid up around a flexible TAC bare earth conductor, sheathed overall with a heavy duty flame retardant elastomeric compound. The pilot unit has 3 MEPR insulated cores laid up and sheathed to the same diameter as the screened phase cores.

Cable Voltage 640 / 1100 Volt.

BCS 188 : 1978 refers.

➡ See complete range of flexible and trailing Mining Cables

mining Cable Specification

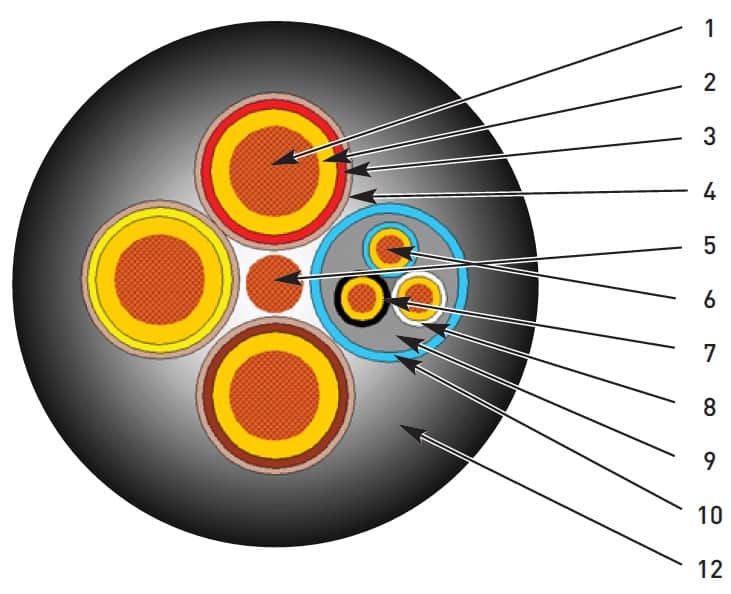

1. Phase conductor – 3 off TAC flex conductors
2. Phase insulation – extruded MEPR yellow
3. Phase identification – proofed tape (red, yellow, brown)
4. Phase core screen – composite copper/nylon braid
5. Earth conductor – 1 off TAC flex conductor
6. Pilot conductor – 3 off TAC conductor
7. Pilot insulation – extruded MEPR yellow
8. Pilot identification – proofed tape (black, white, blue)
9. Pilot unit lay up/sheath – 3 cores laid up and sheathed with extruded PCP black
10. Identification – Proofed tape – blue
11. Lay up – 3 power cores + 1 pilot core laid up around the uninsulated earth core
12. Overall sheath – extruded heavy duty PCP black with blue stripe
