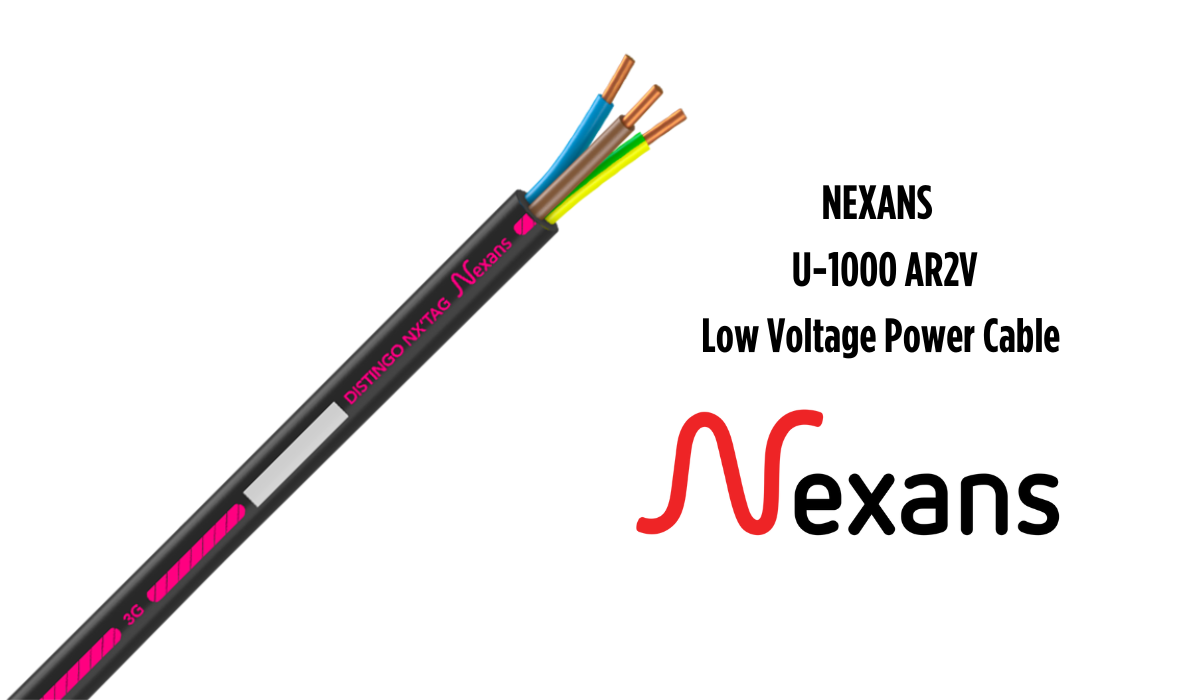

Nexans U1000 AR2V – Low Voltage Power Cables

The Nexans U1000 AR2V is a rigid, low-voltage aluminum power cable designed for fixed installations. Engineered for high durability and environmental efficiency, this cable is manufactured in France using low-carbon aluminum and recycled plastics, resulting in a 35% reduction in greenhouse gas emissions.

Ideal for industrial, commercial, and tertiary applications, Nexans U-1000 AR2V is compliant with international standards and suitable for a variety of installation methods, including direct burial, cable trays, and conduits.

Thorne & Derrick also distribute a wide range of Medium & High Voltage – MV HV Cables 11kV 33kV


U1000 AR2V Cables


Key Features & Benefits

Performance & Safety

  • Voltage Rating: 0.6/1kV (1.2kV max)
  • Max Conductor Temperature: 90°C (250°C short circuit)
  • Operating Temperature Range: -25°C to 60°C
  • Weather Resistance: AN3 rated
  • Flame Retardant: C2 classification (NF C 32-070)
  • Chemical Resistance: Accidental exposure protection

Sustainability & Efficiency

  • 35% lower carbon footprint than traditional cables
  • Manufactured with low-carbon aluminum and recycled plastics
  • PEP Ecopassport® Certified for environmental compliance

Installation Versatility

  • Can be installed in:
    • Cable trays, conduits, and walls
    • Direct burial (with extra mechanical protection)
  • Explosion-risk areas: Requires 15% current reduction
  • Easy identification: Color-coded cores for quick installation

Technical Specification

The Nexans U-1000 AR2V cable is designed for low-voltage power distribution and offers a combination of mechanical durability, electrical efficiency, and environmental resilience. Below are the key technical specifications that define its performance and suitability for various installations:

Multi-Core U-1000 AR2V Cables

Nexans Ref. Cores Cross-Section (mm²) Max Outer Diameter (mm) Approx. Weight (kg/km) Perm. Current (A)
10240124 3 25 20.9 640 97
10175971 3 70 34.0 1286 211
10204292 4 95 42.5 2125 227
10057461 4 150 52.5 3096 304

Single-Core U-1000 AR2V Cables

Nexans Ref. Cross-Section (mm²) Max Outer Diameter (mm) Approx. Weight (kg/km) Perm. Current (A)
10057424 25 12.5 140 101
10043985 70 17.0 296 198
10043991 300 31.0 1118 508

Nexans TWISTAL® U-1000 AR2V (Optimised for Three-Phase Systems)

Nexans Ref. Name Cross-Section (mm²) Max Outer Diameter (mm) Approx. Weight (kg/km) Perm. Current (A)
10218382 TWISTAL 4x1x35 35 32.4 695 126
10218414 TWISTAL 4x1x70 70 40.8 1189 198
10218442 TWISTAL 3x1x120 + 1×70 120 50.9 1700 280

Installation Guidelines

Mounting & Routing Options

  • On walls, in conduits, or on cable trays
  • Direct burial (requires extra mechanical protection)
  • Explosion-risk areas: Requires 15% reduction in current capacity

Pulling & Tension Limits

  • Maximum pulling load: 2000 daN
  • Tensile stress limit: 3 daN per mm² of the conductor

Certifications & Compliance

The Nexans U-1000 AR2V cable meets the following international and French standards:
✔ IEC 60228 – Conductors of insulated cables
✔ IEC 60502-1 – Power cables up to 1 kV
✔ NF C32-321 – French power cable standard
