Repairing Cables In Industrial & Hazardous Area Onshore & Offshore Locations

Published 07 Sep 2020

Repairing Damaged Cable Sheath

Repairing Cables

Guest Article | Carl Pike from Filoform UK

Industrial & Hazardous Area Onshore & Offshore Locations

Thorne & Derrick International are UK distributors for Filoform, a leading manufacturer of cable joints, duct seals and special resins for installation in the utilities, telecom, traffic, rail, fibre optic, street lighting and construction industries.

Have a damaged cable sheath or jacket?

Look no further – Filoform have innovated and made repairing a cable sheath simpler, stronger and hassle free.

Filoform

Introducing

FiloSlim Cable Sheath Repair System

Whilst repairing damage to the outer sheath of a cable may seem like a formality, it is often subject to unforeseen conditions. Particularly if the cable is to be buried or subject to severe environmental elements.

Recognising these situations – FiloSlim Cable Sheath Repair Kit can repair them quick & easily with NO heat or special tools.

Repair Damaged Cable Sheaths

The FiloSlim Cable Repair kit has been designed to accommodate all types of cable sheath, and to withstand the rigors of many applications.

EPR, XLPE, PVC, PILC LV, MV & HV cable sheaths

The unique Polyurethane Resin has been manufactured to offer protection in the harshest of conditions. Subsea, exposed to UV, wound onto cable drums and subject to attack by hydrocarbons within the petrochemical industry.

The FiloSlim Repair Kit is designed to offer a multi-functional, single solution, suitable to all markets. Onshore, Offshore, Hazardous Area, Direct Buried, Subsea: all remedied by a single product.

No heat source > total mechanical protection, suitable for low, medium and high voltage cables.

FiloSlim is a simple and effective method of repairing a damaged cable sheath and cable jacket. The flexibility of a quick and easy installation, coupled with the security of a long term seal against moisture, and the insurance of full mechanical protection.

Filoslim offers a welcome alternative to the historical heat shrink repair sleeves from TE Connectivity/Raychem CRSM, Hellermann RMS and DSG-Canusa CRDW.

Filoslim

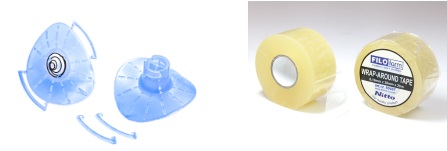

The totally enclosed mixing and pouring of the resin via the nozzle and non return valve.

Filoform Filoslim

Both the valve and outer tape wrap is removed easily at the end of the installation – offers a secure and safe method of work; even in the harshest of environments. From a pitching deck to a frozen landscape, Filoslim is quick, safe and easy to apply.

No specialist tools. NO HEAT source or naked flame.

One kit to suit all cable diameters up to 170mm, and the ability to offer bespoke solutions beyond that. Sheath repair made simple.

Questions & Answers

1, Can the blue injection valve be removed?

Yes, the tape and valve can be de-laminted after 1 hour of dispensing the resin.

2, Is the resin flexible?

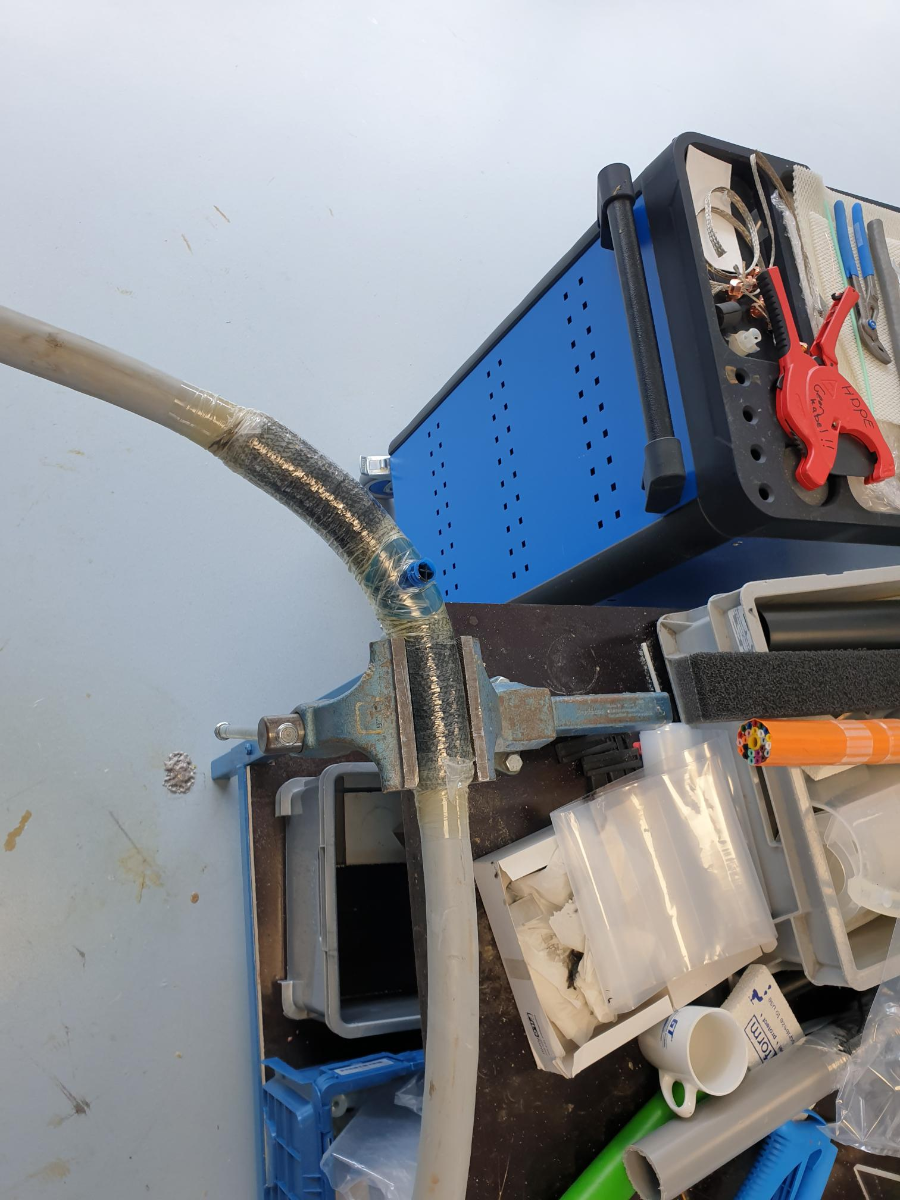

Yes, the resin will flex but does require a little force.(Example below shows a 95sqmm 4 core un-armoured cable)

Flexible Resin

3, Will the FiloSlim cable sheath system repair work if the damage is through to the conductor?

If we are talking about an LV cable, unarmoured, and with no damage to the conductor; we would say its fine. The conductor insulation being intact has retained the original integrity of the primary insulation within the cable;

However, if the insulation around the conductor has been damaged, we would propose stripping back a section of the cable and exposing the damaged area but not cutting the cable.

Over-taping this with self-amalgamating tape will restore the original integrity, and then the kit can be used from there.

filoslim Features:

No heat source required
No specialist tools
Enclosed mixing and pouring
Suitable for cables up to 170mm diameter as standard
Suitable for use as a moisture seal
Suitable for direct buried and vertical application cable repairs
Suitable as an outer seal on EPR, XLPE, PVC and PILC LV and MV cable sheaths
Void filling properties of the resin, negate the requirement for additional mastic tapes or gap fillers
Seawater resistant repairs to cables
Hydrocarbon resistant repairs to cables
Kit contains all components required; including the resin, tape, nozzles and gloves
Can be de-laminated (tape and blue injection valve can be removed, when cured)
