Sealing Cable Ducts

• Guest Blog: Steve Groocock (Duct Seal Products – Account Manager at Filoform UK)
• Product Category: Cable Duct Sealing

Filoform FiloSeal +HD is a duct sealing system specified to protect and seal larger heavy armoured power and high voltage cables in LV, MV & HV substation ducts, bore holes or transit frames – the duct seal provides a strong support and cable sealing system using hexagonal tubes building a re-enterable honeycomb structure to resist water, gas and fire.

Re-enterable cable duct seals are easy to apply regardless of the type of cable scenario in the cable ducts as it uses a strong but flexible hexagonal tube structure to support the cable and provide a strong backing for the cable seal.

The duct seal system provides waterproof and gastight sealing of LV-HV and 11kV-33kV power cables into ducts. The FiloSeal+HD is suitable for any cable configuration (single, trefoil cables or multiple cables) contained within one duct and also allows for easy re-entry of the duct seal to add or remove cables or pipes as required.

Filoform Filoseal+HD is covered by a Test Report documenting successful pass status at Nedlab Laboratory for the following – this is based upon using Filoform’s hexagonal support system and sealing cable using their MD+ sealant.

• Pressure Test, Bending Test & Pull Strength
• Resistance Test Against Chlorine, Methane Gas & Chemicals In Hazardous Areas
• Resistance Test Against Hydrogen Sulphide Gas
• Resistance To Onshore & Offshore Hydrocarbons

FiloSeal+HD Cable Duct Seals – Honeycomb Structure

Duct Sealing

Installing & Preparing The Cable Seal

Steve Groocock is the Duct Seal Product Manager at Filoform. Below he explains about attending a data centre site where he provided installer training prior to the installation of Filoseal +HD Re-enterable Duct Seal System.

“A skill is something that is learned over a period of time but sometimes it is best to pass along experience to a new user of any equipment, this includes cable duct seals. Recently, I attended site for a company who were working on the LV cabling associated with a new build data centre into an existing building structure.

The LV cable, ducting and electrical distribution system utilised existing switch rooms where possible but in order to add capacity to these areas, new penetration holes for the cabling needed to be added. These holes were core drilled directly through the existing structure. Once the cables had been pulled, there remained clear passages for the ingress of moisture, gas, dust and rodents into cable ducts.

Taking the strips of adjoined hex tubes, insert them around and between the cables to be sealed ensuring the spacing required is maintained – the strips can be inserted as a flat line or rolled to form a tight group of 5. If space is not available, the strip of hex tubes may be torn down to individual hex tubes.

Start at the bottom of the cable duct with the large blue tubes and build up to completion. Should there be heavy cables in the ducts, such as 11kV/33kV high voltage power cables, the hex tubes can be nested i.e. one small tube placed inside the other larger tube. The small light blue hex tubes are used to fill and seal the remaining small gaps in the cable duct. The installer should ensure the tubes are packed tightly to prevent cable movement.

Filoseal+HD duct sealing kits have been tested to provide watertight, gastight and/or fire resistant cable seals and were thus specified to fill in the voids in the concrete core drilled holes at the data centre.

Training took two hours and in this time it was up to me to pass on as much experience as possible at a steady pace so the new installer could take it understand and adopt the knowledge. The installer had previously not seen a duct sealing system like this so I took time to familiarise them with the component parts and how a finished cable duct seal installation should look like by way of a sample in a clear duct replica. I also showed the excellent Filoform HD installation video which can be viewed below.

The hands on training starts with myself and the trainee cleaning and abrading the cables and cable duct for the first 20-25mm inside the hole in the wall – cleaning cloth is provided with the duct seal kit. Preparation is key to the whole system – the most important point I stressed to achieve a hexagonal backing piece between each and every cable to create a reliable water and gastight cable duct seal.

The hexagonal tubes are placed around the cables to be sealed filling up all the gaps using the large and small hexagonal backers to ensure the cable support system is compact and tight resembling a honeycomb structure.

This is explained in the Video and instructions supplied with the duct seal kit but until seen it is not necessarily clear as to why. The space is there to ensure the duct sealant component, called Filoseal MD+, can reach all the areas of the void or cable duct needed to be sealed. This site was particularly challenging as the low voltage cables were held down close and clamped to the work face by cable cleats. However, I moved to the other side of the wall and moved the cables in a pit until my trainee could get the hexagonal pieces between each and every cable and between the cables and the core drilled hole edge.

Here the cables are pictured clamped to the cable channel using trefoil cable cleats as the cables depart the duct which was sealed using Fioloseal type duct sealing mastics.

This is the end of stage one. Once we both looked and examined the backing ensuring there were gaps around the cables to be sealed as specified, we moved on to the addition of the sealing mastic. The cable sealing mastic can be applied using a standard mastic gun, however we recommend investment in a quality installation gun. Once the sealant mastic is loaded in the gun I demonstrated on the lower half of this cable install how to ensure a cable seal by running a good bead around the hole edge on every cable. Once we had gone through several tubes of mastic we brought out the finishing sponge to wipe down and tidy the mastic finish – the duct sealant can take from 4 to 20 days to fully cure depending on local ambient temperatures and air humidity levels. Typically in the UK curing takes 8-20 days and backfilling of the installation should be avoided until at least 10 days after installation.

When backfilling ensure adequate packing is below the sealed cables in the duct before adding materials above the cables. In a vertical cable duct, group together strips or rolled groups of tubes and squeeze them into the a duct as one single unit.

Then proceed to maintain the required cable spacing by adding either large or small tubes (groups of or singly).

Duct Sealing – Preparation Is Key

The mastic should be patted in and around every cable ensuring each and every part of the cable duct seal was treated the same way – this patting motion encourages the cable sealant mastic to adhere to the hexagonal backing. Final checks led me to further pat parts between cables using the sponge edge.”

Cable Duct Seal Selection Table

Fire Resistant Duct Seals

Duct seals suitable for LV-HV power cables in single, trefoil or multiple configurations, including 11kV Triplex and 33kV high voltages

Provides advanced and assured sealing against water and gas for cable ducts, bore holes and openings

Re-enterable sealing system future-proofed for retrofit of new cables or re-routing of existing through cable ducting

Cable duct seals provide protection of substations and basements against flood, fire and gas ingress dangers

Conclusion

Filoseal+HD duct seal system using MD+ has been heavily tested against pressure, pulling forces, chemicals, gases and hydrocarbons for use with low, medium and high voltage cables. Below we can summarise the results from Nedlab Laboratory Test Reports.

Final Pressure Test – after completion of the bending and pull strength test the cable duct seals are tested at a pressure of 2.0 Bars.

Note the Test Results documented above have been done in accordance with Filoform installation instructions, however values achieved in field installations can vary if the instructions are not followed and results may vary depending on cable and duct tolerances such as cable duct size, material and cable density volume.

Further reading:

• Trefoil Cables – Sealing Ducts & Cleating Trefoil Cables Up To 33kV
• Sealing Cable Ducts In Hazardous Areas According To ATEX Directive

THORNE & DERRICK are national distributors LV, MV & HV Cable Installation, Jointing, Substation & Electrical Equipment – we service UK and global businesses involved in cable installations, duct sealing, cable jointing, substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Since 1985, T&D have established an international reputation based on SERVICE | INTEGRITY | TRUST.

Contact us for 3M Electrical, ABB, Alroc, AN Wallis, CATU Electrical, Cembre, Centriforce, CMP, CSD, Elastimold, Ellis Patents, Emtelle, Euromold, Filoform , Furse, Lucy Electric & Zodion, Nexans, Pfisterer, Polypipe, Prysmian, Roxtec, Sicame, WT Henley.Invitation: Thorne & Derrick invite you to join LinkedIn’s largest LV-HV Electrical Discussion Group : Low & High Voltage Power, Cabling, Jointing & Electricals. Discussion subjects include cable installations, cable jointing, substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV. Network, engage and promote your profile, company or products with over 10,000 influencers.

by Chris Dodds T&D - estimated reading time 5 minutes

Trefoil Cables

Before we demonstrate an effective duct seal solution for trefoil cables let us first define trefoil and cover the importance of selecting correct cable cleats to prevent short-circuit inflicted damage to power systems and electrical infrastructure.

Cable installations for 3 phase power installations, whether LV or MV (600/1000 Volts to 11kV/33kV) utilise single conductor cables typically in flat or trefoil cables formation – trefoil cable cleats are used to restrain 3 single core cables installed in the “shamrock” style formation, commonly referred to as trefoil.

Where a 3 phase cable system design is based on trefoil cables formation The 17th Edition Wiring Regulations (BS7671) can be consulted to provide current ratings and voltage drop values for the installation.

Trefoil cable formation refers to the installed method for low, medium and high voltage power cables where three single core (phases) distribute the electricity supply rather than a single 3 core cable cable.

Typically, at low voltage (LV) this would be single core XLPE/AWA armoured power BS5467 cables or at medium/high voltage (11kV/33kV) polymeric (XLPE or EPR insulated) single core BS6622 cables.

See more information about Trefoil Cleats

MV HV Single Core – 11kV Single Core Conductor Cables BS6622

Depending upon the short circuit calculation according to IEC 61914 the appropriately fault-rated cable cleats should be used to provide cable restraint depending on whether the LV, MV or HV power cable system generates short, medium or high short circuit levels.

According to the installation application and environmental conditions trefoil cleats are available in a selection of materials including nylon, stainless steel and aluminium.

View the complete range: Ellis Patents Cable Cleats

Clearly cleating cables is essential, as is effective sealing of cable ducts to prevent flood damage to substations and buildings or the spread of potentially flammable gases.

Sealing Trefoil Cables In Substation Ducts

Single core 11kV-33kV cables in “triplex formation” according to British Standard BS7870 require effective sealing of cable duct entries against water, gas and fire on medium/high voltage substations as well as cleating to protect against short circuit situations. Triplex cables are characterised by the appearance of 3 core cables twisted around each other.

MV HV Triplex – 11kV Triplex Cables 3 Core Conductor Cables BS7870

Trefoil cable arrangements entering substation ducts can be difficult to seal using traditional mastic or inflatable cable duct sealing systems, however the FiloSeal+HD duct sealing system effectively seals single, trefoil or multiple cables in duct. The single core cables are carefully separated and supported using the FiloSeal+HD hexagonal tubes – note the central positioning of the hexagonal tubes to establish the required HV cable separation and allow maximum flow of the duct sealant into the trefoil cable formation.

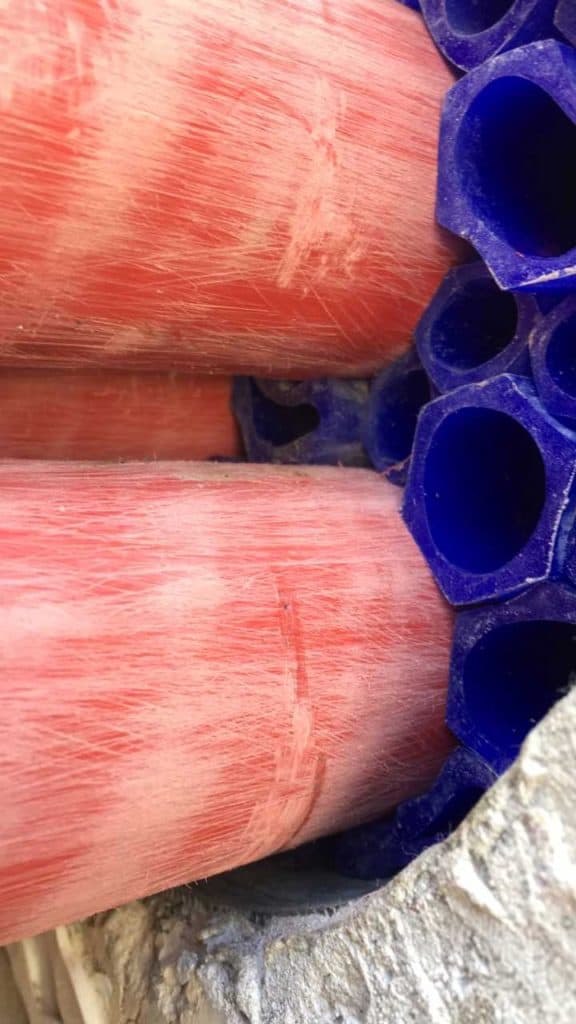

The hexagons separating the pictured 11kV cables must have the smaller hexagonal tubes nested in the large one to create additional strength.

Sealing Cable Ducts With Single, Trefoil & Multiple Cables | LV MV HV 11kV 33kV

Where the cable ducts are located in a designated hazardous area according to the ATEX Directive we can provide expert advice and product recommendations for sealing cables in potentially explosive atmospheres.

Filoform  – Water, Gas & Fire Protection | Duct Seals In Industrial & Hazardous Areas

Should you require any advice to enable to selection of duct seals for industrial or hazardous area locations, call us | LV MV HV | 11kV 33kV Cable Joints & Terminations
