Alroc CAMF4/40-90-BBCF Bonded Semicon & Insulation Stripping For MV HV Medium/High Voltage Cables
HV Cable Tools | Preparation & Termination & Testing & Jointing
Bonded Semicon & Insulation Stripping tools
ALROC CAMF4/40-90-BBCF
Suits MV HV EHV Cables 40-90mm Diameter | Stocked & Supplied by Thorne & Derrick
CAMF4/40-90-BBCF are multi function cable jointing tools manufactured by Alroc and used by MV-HV jointers to remove the semi-con screen and XLPE insulation to prepare the cable ready for the installation of joints, terminations or connectors. The CAMF4/40-90-BBCF allows the user to remove the bonded semiconductor and remove the insulation from medium and high voltage cables.
Bonded semiconductor removal is a steady process shaping the cable round the insulation with a constant diameter over the insulation which in turn prevents the blade from digging into the insulation. Insulation removal has a back iron that helps the user to tune the pitch of the tool making the rotation of the tool easy by the HV Jointer when removing the XLPE insulation from medium/high voltage cables including 66kV, 132kV, 245kV and 275kV.

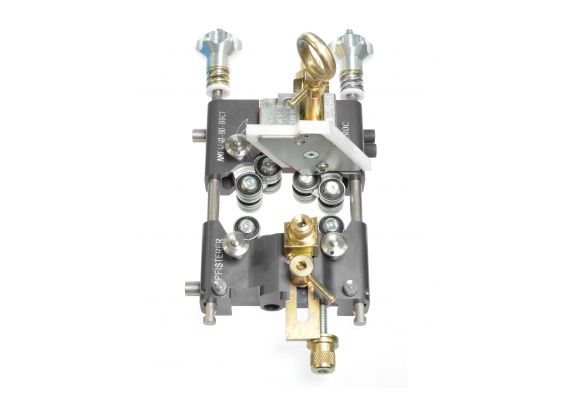

Cable Preparation Tools | Alroc CAMF4/40-90-BBCF
Alroc CAMF4/40-90 BBCF Multifunction Cable Jointers Tool For Bonded Semiconductor & Insulation
Alroc CAMF cable preparation tools can be split for removal by the Jointer – this is a particular benefit for the cable jointer where they solder the cable connector allowing the tool to be easily removed from the HV cable when being used to strip and prepare offshore, IAC (Inter Array Cables) and submarine cables prior to installing HV joints, terminations or connectors.
The Alroc CAMF4/40-90-BBCF tool features a push/button locking system and also facilitates the Jointer to create a groove in the XLPE insulation (with their blade option) and shave bonded semi-con screens – the tool has 16 wheels rolling against the cable with 4 (or 8) contact points. The unique design of the Alroc tool prevents the cutting blade digging into the XLPE insulation when preparing high voltage power cables with XLPE insulation.
These cable jointing tools are used typically on 66-132kV high voltage transmission cable circuits, in accordance with EC 60840, to prepare XLPE single core power cables for jointing and termination applications into GIS Switchgear and installation of AIS Cable Sealing Ends.
The CAMF4/40-90-BBCF Preparation Tool enables the Jointer:
– To remove the bonded semiconductor
– To remove the insulation
Cable Diameter Range ø 40 – 90 mm
CAMF Tool Options | Multi Function Cable Preparation Tool
K7/PNS4 – Blade support to make groove/slot
K7/SNS4 – To remove semiconductor with straight transition between insulation and semi-con screen

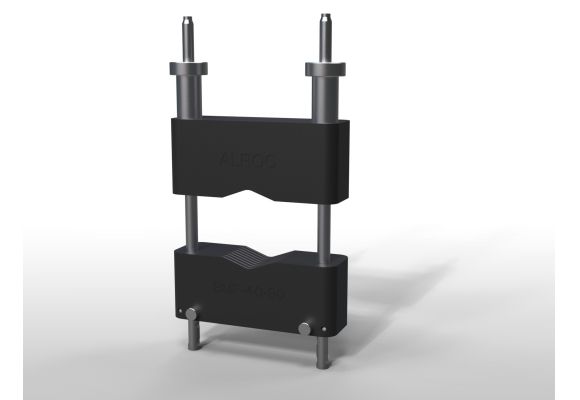

BM4/40-90 – Thrust to stop the cable preparation tool – download
Spare Tool Cutting Blades | Alroc LFNS (Bonded Semicon) | Alroc LINS (XLPE Insulation)
BM4/40-90 | Clean & Precise Stop Making
Tool Blade for use with Alroc CAMF4/40-90-BBCF | Single Groove
CAMF4/40-90-BBCF Reference |
For Tool | ||
| A (mm) | K7-PNS | K7-PNS4 | B Maxi= |
| 3 | LPNS -3 | LPNS-3 | 28 |
| 4 | LPNS-4 | LPNS-4 | 28 |
| 5 | LPNS-5 | LPNS-5 | 28 |
| 6 | LPNS-6 | LPNS-6 | 28 |
| 7 | LPNS-7 | LPNS-7 | 30 |
| 8 | LPNS-8 | LPNS-8 | 30 |
| 10 | LPNS-10 | LPNS-10 | 33 |
| 15 | LPNS-15 | LPNS-15 | 33 |
| 20 | LPNS-20 | LPNS-20 | 33 |
| 22 | LPNS-22 | LPNS-22 | 33 |
Tool Blade for use with Alroc CAMF4-40-90-BBCF | Shouldered Groove
CAMF4/40-90-BBCF Reference |
A | B | C Maxi | D Maxi | Groove Tool: |
| LPNS-SP1 | 10 | 5 | 13 | 15 | K7-PNS+4 |
| LPNS-SP4 | 7 | 5 | 17 | 12 | K7-PNS+4 |
| LPNS-SP14 | 4 | 5 | 20 | 15 | K7-PNS+4 |
| LPNS-SP5 | 10 | 5.5 | 11 | 18 | K7-PNS+4 |
| LPNS-SP6 | 6 | 4 | 14.5 | 16 | K7-PNS+4 |
| LPNS-SP25 | 5 | 4 | 20 | 20 | K7-PNS+4 |
| LPNS-SP26 | 2.5 | 3 | 11 | 15 | K7-PNS+4 |
| LPNS-SP27 | 4 | 4 | 20 | 16 | K7-PNS+4 |
| LPNS-SP28 | 5 | 7 | 20 | 16 | K7-PNS+4 |
Alroc CAMF4/40-90-BBCF
Up to 90mm Diameter High Voltage XLPE Cables
Suitable for the Preparation of 66kV IAC Inter-Array Cables for Onshore & Offshore Wind Farm Cables
Alroc CAMF5/55-160-BBCF
Up to 160mm Diameter High Voltage XLPE Cables
Suitable for the Preparation of 66kV IAC Inter-Array Cables for Onshore & Offshore Wind Farm Cables
The tool includes a function for the jointer to simply adjust the outer cable diameter for removal of cable sheath – once the cutting blade is correctly set and positioned the cable jointer rotates the tool around the MV-HV cable in a circular motion. Adjustment of the Alroc tool is simple using the back-iron for clean and consistent cutting of the power cables.
Fine adjustment of the semiconductor shaving depth is possible for precision cable engineering of the semicon cut. Similarly, adjustment of the cable cutting depth using the Alroc CAMF4/40-90-BBCF is possible – the ball bearings can be switched to rotate statically to enable the cable jointer to create a chamfer and groove in the medium/high voltage cable insulation.
The Alroc CAMF4/40-90-BBCF jointing tool performs an excellent semicon cut to ensure the safety and reliability of the cable joint, termination or connectors.
Alroc CAMF4/40-90-BBCF – Technical Specification
| Cable Tool Part Number | Diameter | Tool Capacity | Dimensions | Packaging | |||||
| Bonded semicon thickness capacity | Remaining length of the semicon | Insulation thickness capacity | Guiding | Length | Width | Height | |||
| Alroc CAMF4/40-90-BBCF | 40 – 90 mm 1,575 – 3,543 in |
2.5 mm / 0.098 in | 55 mm / 2,165 in | 35 mm / 1,378 in | By ball bearings | 460 mm 18,110 in |
155 mm 6,102 in |
150 mm 5,906 in |
Case |
| Alroc CAMF5/55-160-BBCF | 55 – 160 mm 2,165 – 6.299 in |
3 mm / 0,118 in | 80 mm / 3,150 in | 35 mm / 1,378 in | By ball bearings | 700 mm 27,559 in |
255 mm 10,039 in |
180 mm 7,087 in |
Case |
| Alroc CAMF5/55-160-NSCF | 55- 160 mm 2,165 – 6.299 in |
3 mm / 0,118 in | 80 mm / 3,150 in | 35 mm / 1,378 in | By wheels rolling | 700 mm 27,559 in |
255 mm 10,039 in |
180 mm 7,087 in |
Case |
Alroc Tools | Approved by Leading High Voltage Cable Manufacturers

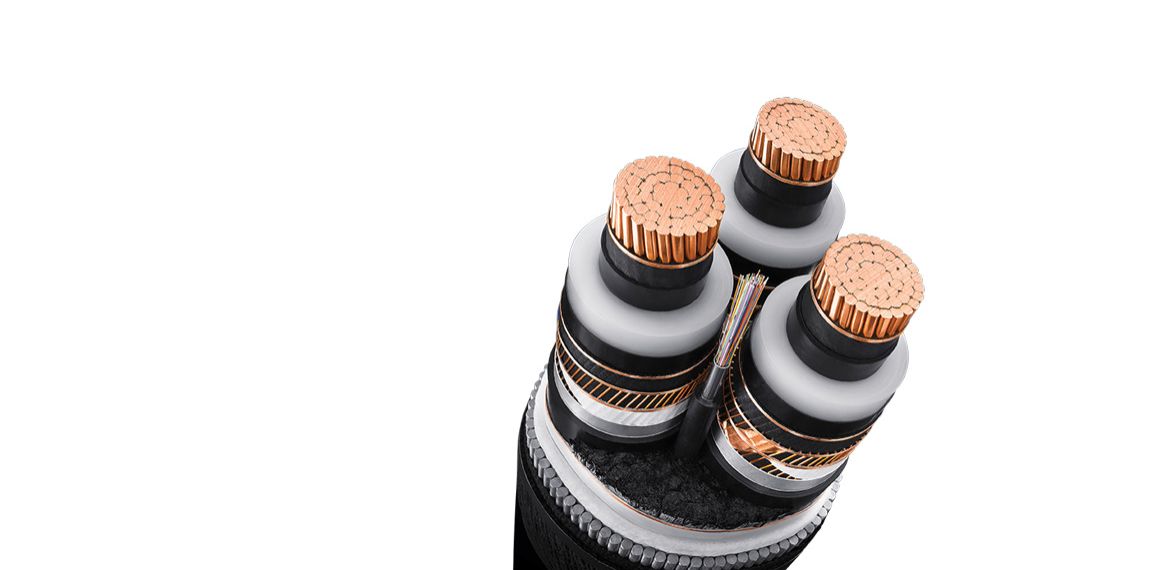

Inter Array Cables | Preparation Tools for Offshore Jointing & Termination of 66kV IAC
Jointers Tools
MV HV EHV
- MV Medium Voltage Cables 11kV 33kV
- HV High Voltage Cables 66kV
- EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
Pfisterer | 3M | Nexans | Prysmian – Joints, Terminations & Connectors MV HV
➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.
Thorne & Derrick also distribute Cembre and Klauke tools for cable cutting and cable crimping of copper and aluminium conductors.
Jointing & Preparation Tools For Cable Jointers & Linesmen Working On MV-HV-EHV Cables & Lines
Alroc CAMF4/40-90-BBCF – Data SheetDownload
