110kV Prysmian Screen Break Cable Joint – EHV Extra High Voltage

Published 02 Mar 2021

Energex

By EHV Cable Jointer Andrew Brezovszky, Energex Australia.

Energex distribute electricity to more than 1.4 million residential, commercial and industrial customers across a population base of around 3.2 million in South East Queensland.

Prysmian Group



110kV Prysmian Screen Break Cable Joint - EHV Extra High Voltage

110kV Prysmian Screen Break EHV Extra High Voltage Cable Joint

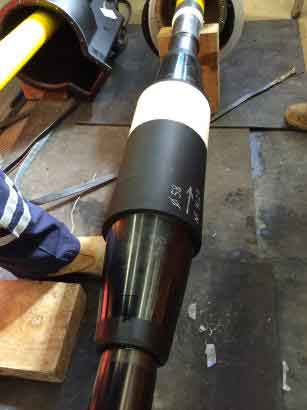

Prysmian 110kV Screen Break Joint - landing the stress control joint mould onto 1600sqmm cable. An extraction tool is used to remove the pre-mould from the carrier tube

Prysmian 110kV Screen Break Joint – landing the stress control joint mould onto 1600sqmm cable. An extraction tool is used to remove the pre-mould from the carrier tube.

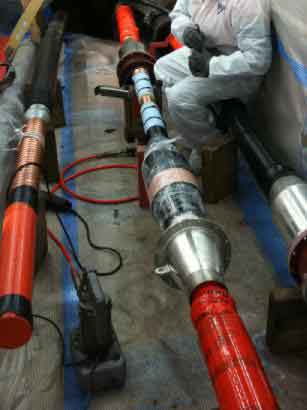

Prysmian 110kV Screen Break Joint - an older style 110kV Prysmian screen break joint used on a super-sheathed cable (stainless steel corrugated sheath over the copper corrugated sheath).

Prysmian 110kV Screen Break Joint – an older style 110kV Prysmian screen break joint used on a super-sheathed cable (stainless steel corrugated sheath over the copper corrugated sheath).

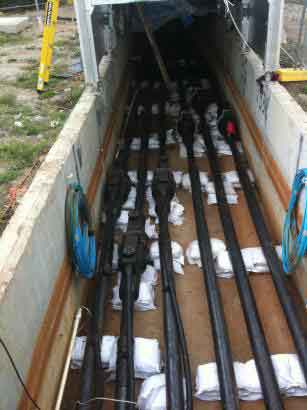

Prysmian 110kV Screen Break Joint - completed 110kV super-sheathed XLPE cable with Prysmian screen break joints on paralleled feeders.

Prysmian 110kV Screen Break Joint – completed 110kV super-sheathed XLPE cable with Prysmian screen break joints on paralleled feeders.
