ABB APECB 170 Cable Terminations Complete & Sudkable GIS Plugs

Published 07 Sep 2020

ABB APECB 170 Cable Terminations Complete & Sudkable GIS Plugs

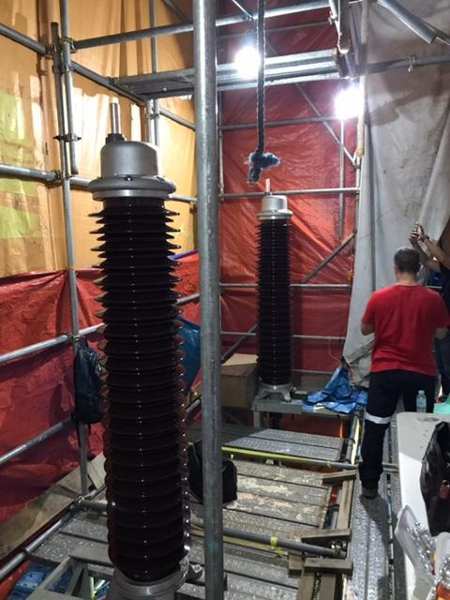

Image Courtesy: Dave Boyd EHV Cable Jointer. Owner/Company Director of HV Cablepower Pty Ltd

abb

ABB is a pioneering technology leader that works closely with utilities, industry, transportation and infrastructure customers to write the future of industrial digitalisation and realize value.

ABB

ABB APECB 170 Cable Terminations

This cable termination consists of an insulator installed on a box body made of aluminium castings. The box body consists partly of insulating material, which provides an insulated installation. The base part is to be installed on a bracket.

The electrical stress control component is a pre-molded rubber stress cone.

The insulator has sheds of short-long type and is filled with synthetic insulating oil. The composite insulator design includes grey silicone rubber sheds and a fibreglass reinforced epoxy resin hollow core.

It is light-weight and less sensitive for outer damages. The porcelain insulators are available in brown on request. A bolt clamp in the top fitting is used to connect the conductor to the top bolt. Top bolt and bolt clamp are included in the kit.

ABB APECB 170 Cable Terminations are used for installations in which the termination is to be used as a fixed connection point and meets the requirements of:

  • IEC 60840, < 170 kV
  • IEC 62067, 245–420 kV
  • IEEE 48
