Cut, Strip, Crimp, Punch – Cable Tools for Panel Building & Electrical Contracting

• Revolutionary PowerSense function
• Manual pre-clamping of cables
• Motor-driven cable crimping
• Ultra-light and ergonomic tools
• Crimping Tool Weight: 0.96 kg

For Full Klauke Specification – EK 50 ML

• No die-change – indent cable crimping
• Crimping range 6 – 120sqmm
• Press Tool Weight: 1.95 kg

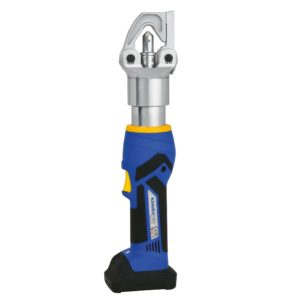

For Full Klauke Specification – EK 30 ID ML

• Optimum results – square crimping
• Die-free battery-powered hydraulic tool
• Press Tool Weight: 1.96 kg
• Powerful 10.8 V Li-ion battery technology with charging level indicator
• Simple and safe: one-button operating concept for controlling all tool functions

For Full Klauke Specification –  EK WF 120 ML

• Cable cutting range up to Ø 50 mm
• Integrated voltage protection to 1,000 V
• Cutting Tool Weight: 3.1 kg

For Full Klauke Specification – ESM 50 IS

• Indent crimping – changing of crimping dies is not necessary
• Powerful 10.8 V Li-ion battery technology with charging level indicator
• Closed head, hinged, swivelling
• Simple and safe: one-button operating concept for controlling all tool functions

For Full Klauke Specification – EK 30 ID ML

• Innovative square crimping – use of crimping dies is not necessary
• Powerful 10.8 V Li-ion battery technology with charging level indicator
• Closed head, swivelling
• Simple and safe: one-button operating concept for controlling all tool functions

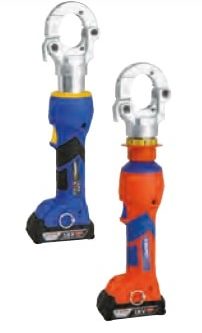

For Full Klauke Specification – EKM 60 ID

• Large crimping range up to 300sqmm
• Closed head, hinged, swivelling
• Also available as crimping tool with integrated voltage protection up to 1,000 V (EKM60IDISB / EKM60IDISM)
• Suitable for Klauke series 22 crimping dies

For Full Klauke Specification – EKM 60/22

• Large cross-section range up to 150 mm²
• Narrow pressing head – ideal when space is critical
• Powerful 10.8 V Li-ion battery technology with charging level indicator
• Closed head, hinged, swivelling
• Simple and safe: one-button operating concept for controlling all tool functions

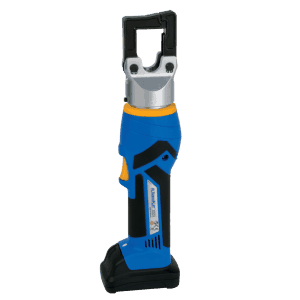

For Full Klauke Specification – EK 35/4 ML

• The Klauke Micro with its intuitive PowerSense function combines the advantages of manual press tools with the convenience of battery-powered hydraulic press tools
• Excellent cable crimping results with minimum energy use

For Full Klauke Specification – EK 50 ML

• For cutting fine and superfine copper conductors (ES 32 F ML)
• For cutting multistrand copper and aluminum conductors (ES 32 ML)
• Narrow scissor cutter head – ideal when space is critical
• Powerful 10.8 V Li-ion battery technology with charging level indicator
• Open head, swivelling
•  Electronic control and monitoring of the work process

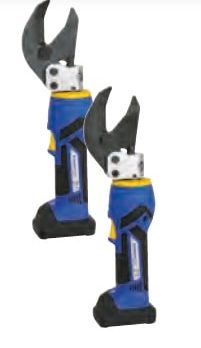

Full Klauke Specification ES 32 F ML & ES 32 ML

• High cutting force for cutting copper and aluminium conductors (including fine-stranded)
• Time saving when making multiple cuts thanks to return stop
• Open head, swivelling
• Also available as cutting tool with integrated voltage protection up to 1,000 V (ESM50ISB / ESM50ISM)

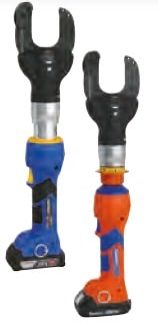

Full Klauke Specification – ESM 50

• One head for pressing, cutting, punching – One tool for all occasions
• Ideal for assembly because all common tasks can be performed with just one tool
• Small and narrow, perfect for cramped conditions
• Universal head, hinged, swivelling

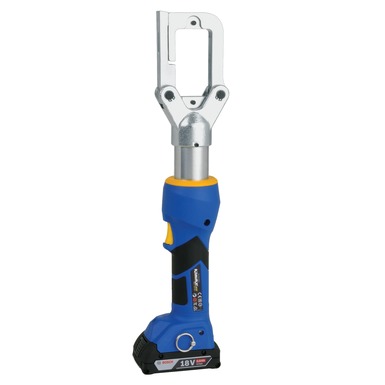

Full Klauke Specification – EKM 60 UNV

• Optimal accessibility due to 360° rotating head
• An integrated pressure sensor increases the service life of the hole punch
• Automatic limit stop increases the life of the punching tools
• Punching capacity:
  St37 max.: 104.8 mm for a material thickness of 2.5 mm
  V2A max.: 50.8 mm for a material thickness of 2.5 mm

Full Greenlee Specification – Greenlee LS 50 FLEX

• Extremely high punching force – 100 kN
• Optimal accessibility thanks to 360° rotating head
• Automatic limit stop increases the life of the tools
• Punching capacity:
  ST37 max.: 152.4 mm for a material thickness of 3 mm
  V2A max.: 104.8 mm for a material thickness of 3 mm

Full Greenlee Specification – LS 100 FLEX
