Jointing Oil Filled EHV Cables Using NKT Fluid-Filled Accessories

Published 18 Nov 2018

Joints Terminations Connectors LV MV HV

  • Application: Jointing Oil Filled EHV Cables Using NKT Fluid-Filled Accessories
  • Cable Type: Oil Filled EHV Cables
  • Cable Jointer: Dean Wilson Owner Director at D C Jointing Ltd
  • Featured Manufacturer: NKT Cables

NKT Cables & Accessories

Crimping

Jointing Oil Filled EHV Cables Using NKT Fluid-Filled Accessories - Crimping

Chamfering

Jointing Oil Filled EHV Cables Using NKT Fluid-Filled Accessories - Beginning The Chambering On The Applied Paper Rolls

Vacuum & Filling

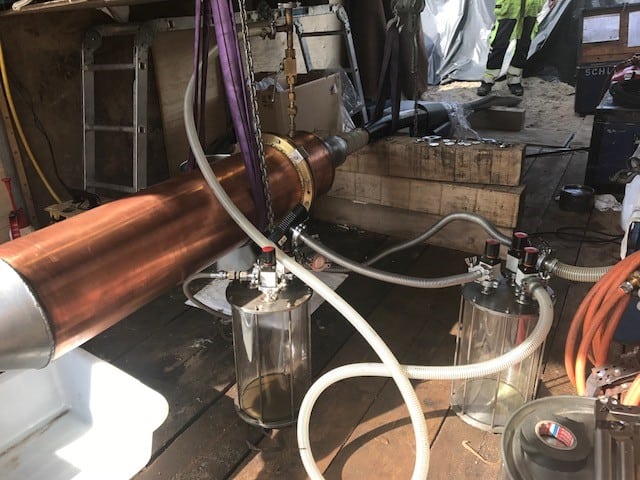

Jointing Oil Filled EHV Cables Using NKT Fluid-Filled Accessories - Vacuum & Filling



NKT cable Joints & Terminations Overview nkt

  • Outdoor cable terminations (porcelain or composite)
  • Non-self-supporting outdoor cable terminations
  • Cable terminations for gas-insulated switchgears (GIS)
  • Transformer cable terminations
  • Straight-through cable joints
  • Insulating joints/cross-bonding cable joints
  • Transition cable joints, XLPE-insulated/oil-filled cables
  • CabSnap accessories for preassembled cable connection systems

NKT Cable Joints

NKT has a broad portfolio of low-pressure oil cable sets up to 170kV: from through and stop sockets to end closures and transition sleeves for connection to modern VPE technology.

For the quality and safe installation of NKT cable sets a wide range of Jointer Training is provided so that utilities can continue to operate oil cable systems cost-effectively. In addition, NKT supports clients in setting up a local reserve warehouse to ensure rapid availability of high voltage cable joints.

Renew, rebuild and repair of high voltage low pressure oil filled cables with NKT.

Cable Joints

NKT Straight Three Piece Joints – Cross Bonding Cable Joints

HV Cable Joints Terminations

High Voltage Cable Accessories 72kV to 245kV

Should you require any assistance with the selection or specification of cable joints or terminations please do not hesitate to contact us.
