Pfisterer EST145 Dry Outdoor Substation Cable Terminations
Published 15 Jun 2021
Image Courtesy of:Â Emil Zlatev (Trainer & EHV Cable Jointer At Pfisterer)

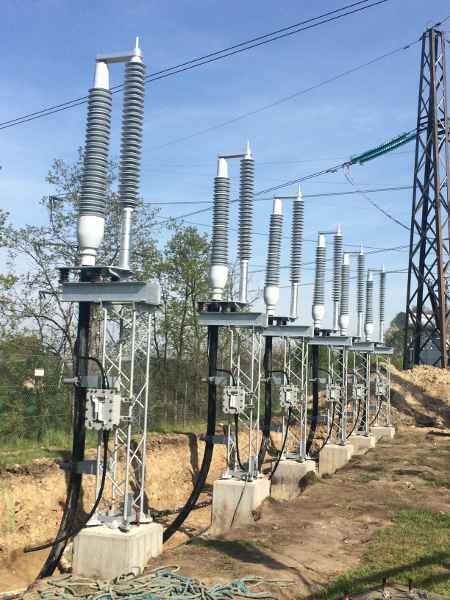

Pictured: Pfisterer EST145 Dry Outdoor Substation Cable Terminations
pfisterer
The PFISTERER group has been dealing with the interfaces in the flow of electricity ever since it was founded in 1921.
As a specialist in energy transmission and distribution, PFISTERER offer a range of sophisticated, future-ready products. For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids.
As well as the energy sector, PFISTERER are also active in transport technology and industrial solutions. They are well-established in all key global markets and continue to strengthen the brand on a worldwide scale.
Joints for HV Power Cables
The IXOSIL product range of cable terminations and joints for HV power cables includes slip-on joints for the entire spectrum of voltages from 72.5 kV to 550 kV – in each case with different shielding designs, with or without bonding or grounding cable.
The joints consist predominantly of pre-manufactured and routine tested silicone components, are water-resistant and optionally available with permanent metal, plastic or shrink-fit enclosures.
The well proven slip-on technology permits fast installation and the secure connection of cables with extruded insulation with copper or aluminium conductors. The electrical conductors are permanently connected using advanced SICON bolted connectors or conventional compression connector. Combinations of cables with different conductors and shielding systems are also possible.
IXOSIL Joints for Permanent Cable Connections
- Voltage range from 72.5 to 550 kV
- Simple slip-on technology, proven in many years of service
- Water-resistant housing
- Combination of different conductor materials (aluminium, copper)
- Main insulation: Silicone
thorne & Derrick
Thorne & Derrick are Main Distributors & Stockists for the PFISTERER range. Established since 1985, T&D distribute the most extensive range of LV, MV & HV Cable Jointing, Terminating, Pulling & Installation Equipment – contact us today for a competitive quotation.
