Nexans GPH | Cable Connectors MV HV | Mechanical Shearbolt up to 52kV

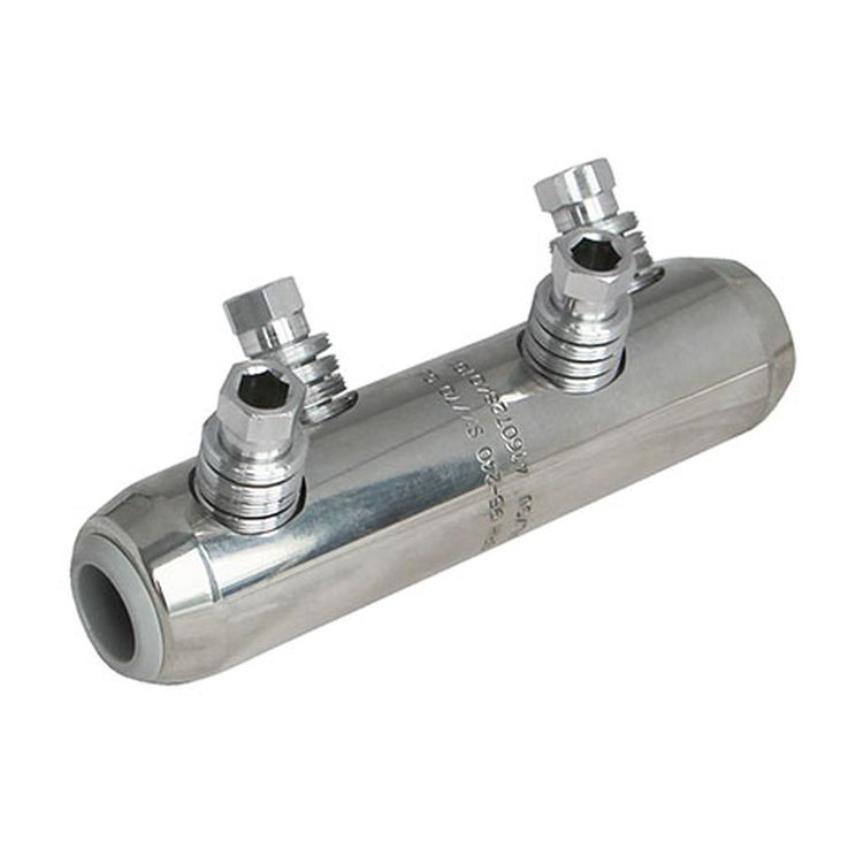

Nexans GPH Cable Connectors MV HV Mechanical Shearbolt 52kV M-Series

Nexans GPH Mechanical Cable Connectors MV HV

Offering a reliable and efficient method of jointing & connecting MV HV cables, varied conductor cross sections and materials up to 52kV, the Nexans GPH Cable Connectors MV HV range includes the Mechanical Shearbolt Connectors M-Series, available with shear-off-head bolts and transverse grooving. Nexans GPH Cable Connectors range uses a multiple shear-off-head bolt to clamp respective conductor cross section with an appropriate torque moment using an inner/outer hexagon, ultimately shortening the installation time substantially.

The Mechanical Shearbolt 52kV Connectors M-Series of Nexans GPH Cable Connectors MV HV is assembled with multiple shear-off-head bolts and are therefore a reliable and economical way of connecting identical or different conductor cross -sections and conductor materials. Nexans GPH Mechanical Cable Connectors body is a high strength aluminium alloy material, with a tin-plated surface. The connector centring includes centre rings or inserts, which are enclosed for centric conductor positioning, as well as connectors filled with compound and sealed in plastic.

♦ IEC 61238-1 Standards

The IEC 61238-1 Standards covers the test methods and requirements for compression and mechanical Cable Lugs & Connectors designed for MV HV Power Cables, with operating voltages up to 30kV (Um = 36kV). The IEC 61238-1 compliant Cable Lugs & Connectors are typically used with buried cables or cables installed in buildings. Typical service conditions for this Power Cables Standard includes connectors used for electricity distribution or industrial networks which can be subjected to short-circuits of high intensity and duration, as well as connectors for networks which overload or short-circuits, cleared by installed protective devices.

Nexans GPH Cable Connectors MV HV Range ➡

  • Nexans GPH Mechanical Connectors 0.6kV/1kV (D-Series)
  • Nexans GPH Repair Connectors up to 52kV
  • Nexans GPH Mechanical Branch Connectors up to 52kV
  • Nexans GPH Mechanical Split-Bolt Connectors up to 52kV
  • Nexans GPH Additional Bolt Set for Flexible Copper Conductors Class 5
  • Nexans GPH Mechanical Transition Connectors up to 52kV
  • Nexans GPH Screen Wire Connectors

Nexans GPH Mechanical Shearbolt 52kV Connectors Technical Specifications

Nexans GPH Cable Connectors M-Series Dimensions

Nexans GPH Cable Connectors MV HV Mechanical Shearbolt 52kV M-Series Dimensions

Nexans GPH Cable Connectors MV HV Mechanical Shearbolt 52kV M-Series Dimensions

  1. Dimension d² = 26mm
  2. Centric conductor positioning by centre inserts
Nexans GPH Cable Connectors Part Number Product Dimensions (mm)
L d D a
Nexans M16-95 70mm 12.5mm 24mm 32mm
Nexans M25-150 85mm 15.5mm 30mm 35mm
Nexans M70-240 120mm 21¹mm 35mm 56mm
Nexans M95-240 120mm 20mm 33mm 56mm
Nexans M95-300 142mm 23¹mm 36mm 67mm
Nexans M120-300 142mm 25mm 38mm 67mm
Nexans M185-400 170mm 26mm 42mm 82mm
Nexans M300-500 200mm 34mm 52mm 94mm
Nexans M400-630 200mm 34mm 52mm 94mm
Nexans M630-1000² 220mm 41mm 65mm 105mm
Nexans M800 220mm 37mm 60mm 105mm
Nexans M1000 220mm 41mm 60mm 105mm
Nexans M800-1200² 220mm 45mm 72mm 105mm



Mechanical Shearbolt 52kV Connectors M-Series Technical Details

Nexans GPH Cable Connectors MV HV

The Cable Connectors bolt has an inner and outer hexagon, which are both related to the various shear-off-areas of the bolt and their different torque moments. The torque moments follow the rule that large conductor cross sections require high torque moments and small cross sections need lower torque moments. The installation instructions for the Nexans GPH Mechanical Cable Connectors MV HV describes use of both hexagons and of the various centre rings and inserts, for the respective conductor types.

  • Simple & Quick Installation: The Mechanical Shearbolt Connectors M-Series is equipped with common commercially available inner and outer hexagon tools or an improved impact wrench.
  • Minimum Storage Costs: The cross-sectional area from 16mm² to 1000mm² is covered by just 4 types of cable connectors.
  • Universal Applicability: The Mechanical Shearbolt Connectors M-Series can be used for copper and aluminium conductors according to EN 60228 class 1 & class 2.
  • Proven Quality: Tested for class 2 conductors according to IEC 61238-1, in failure-free operation for more than 20 years.

Nexans GPH Cable Connectors M-Series Pictogram

Nexans GPH Cable Connectors Selection Guide

The following table provides a further insight on the Nexans GPH Cable Connectors MV HV range for the Mechanical Shearbolt 52kV Connectors M-Series product:

Nexans GPH Cable Connectors Part Number Aluminium in mm² CU in mm² Number of Bolts Outer & Inner Hexagon Tool
Round Stranded Alu (mm²) Round Solid Alu (mm²) Sector Stranded Alu (mm²) Round Stranded Cu (mm²) Sector Stranded Cu (mm²)
Nexans M16-95  16-95 10-95 25-70 16-95 25-70 2 SW10 & SW6
Nexans M25-150 25-150 25-150 35-120 25-150 35-120 2 SW10 & SW6
Nexans M70-240 70-240 70-240 70-240 70-240 70-240 4 SW13 & SW6
Nexans M95-240 95-240 95-185 95-185 95-240 95-185 4 SW13 & SW6
Nexans M95-300 95-300 95-300 95-240 70-300 70-240 4 SW13 & SW6
Nexans M120-300 120-300 120-300 120-240 120-300 120-240 4 SW19 & SW6
Nexans M185-400 185-400 185-400 185-300 185-400 185-300 6 SW19 & SW6
Nexans M300-500 300-500 300-500 300-400 300-500 300-400 6 SW19 & SW8
Nexans M400-630 400-630 400-630 400-500 400-630 400-500 6 SW19 & SW8
Nexans M630-1000² 630-1000 630-1000 630-1000 8 SW19 & SW8
Nexans M800 800 800 800 8 SW19
Nexans M1000 1000 1000 8 SW19
Nexans M800-1200² 800-1200 630-1200 630-1000 8 SW22 & SW8
