Nexans GPH | Cable Lugs MV HV | Mechanical Shearbolt up to 52kV

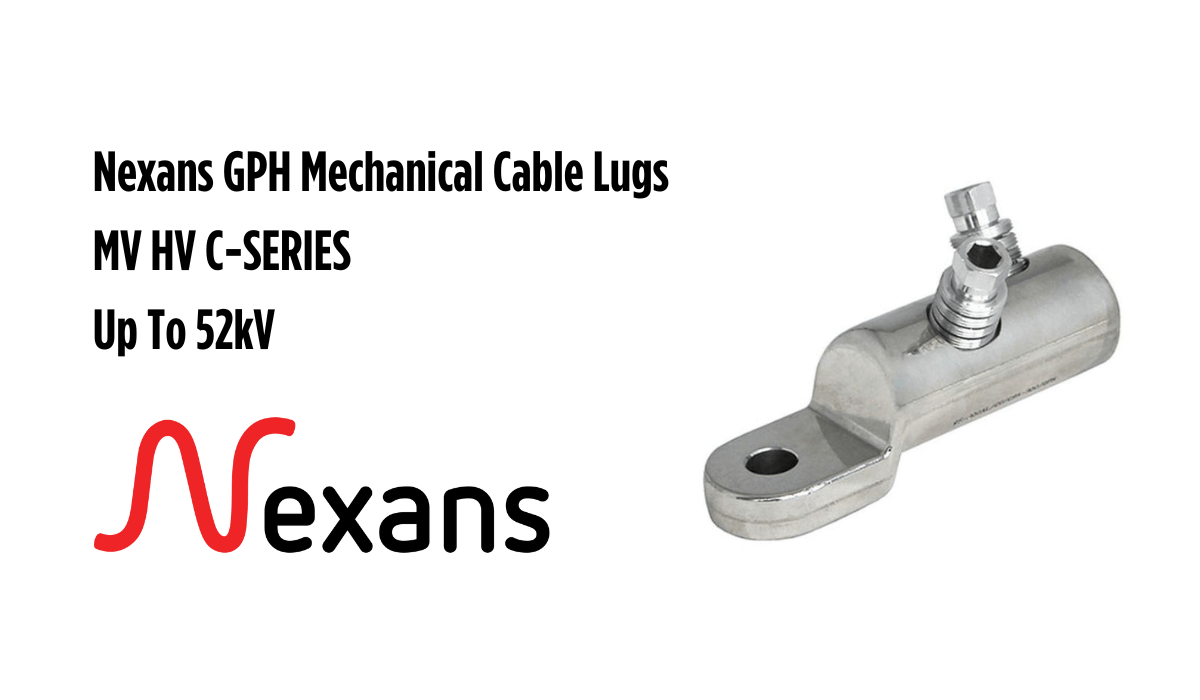

Nexans GPH Mechanical Cable Lugs MV HV
Offering a reliable and efficient method of jointing & connecting MV HV cables, varied conductor types and materials up to 52kV, the Nexans GPH Cable Lugs MV HV range includes the Mechanical Shearbolt C-Series, which provides a unique bolt system, known as the multiple shear-off-head bolt. Nexans GPH Cable Lugs range uses a multiple shear-off-head bolt to clamp respective conductor cross section with an appropriate torque moment using an inner/outer hexagon.
The Mechanical Shearbolt 52kV C-Series of Nexans GPH Cable Lugs MV HV is designed to allow a larger, multirange conductor cross-section even for MV HV cable terminations. Nexans GPH Mechanical Cable Lugs are high strength tinplated with different palm holes, similar to compression cable lugs. The connector body material is a high strength aluminium alloy, and the bolts are brass, tinplated, with an inner and outer hexagon.
♦ IEC 61238-1 Standards
The IEC 61238-1 Standards covers the test methods and requirements for compression and mechanical Cable Lugs & Connectors designed for MV HV Power Cables, with operating voltages up to 30kV (Um = 36kV). The IEC 61238-1 compliant Cable Lugs & Connectors are typically used with buried cables or cables installed in buildings. Typical service conditions for this Power Cables Standard includes connectors used for electricity distribution or industrial networks which can be subjected to short-circuits of high intensity and duration, as well as connectors for networks which overload or short-circuits, cleared by installed protective devices.
Nexans GPH Cable Lugs MV HV Range âž¡
- Nexans GPH Screen Wire Lugs
- Nexans GPH Mechanical Cable Lugs 0.6kV/1kV (D-Series)
- Nexans GPH Screen Wire Lugs (SWL-Series)
- Nexans GPH Mechanical Cable Lugs with 2 Palm Holes 52kV
- Nexans GPH Additional Bolt Set for Flexible Copper Conductors Class 5
Nexans GPH Mechanical Shearbolt 52kV Technical Specifications
Nexans GPH Cable Lugs C-Series Dimensions

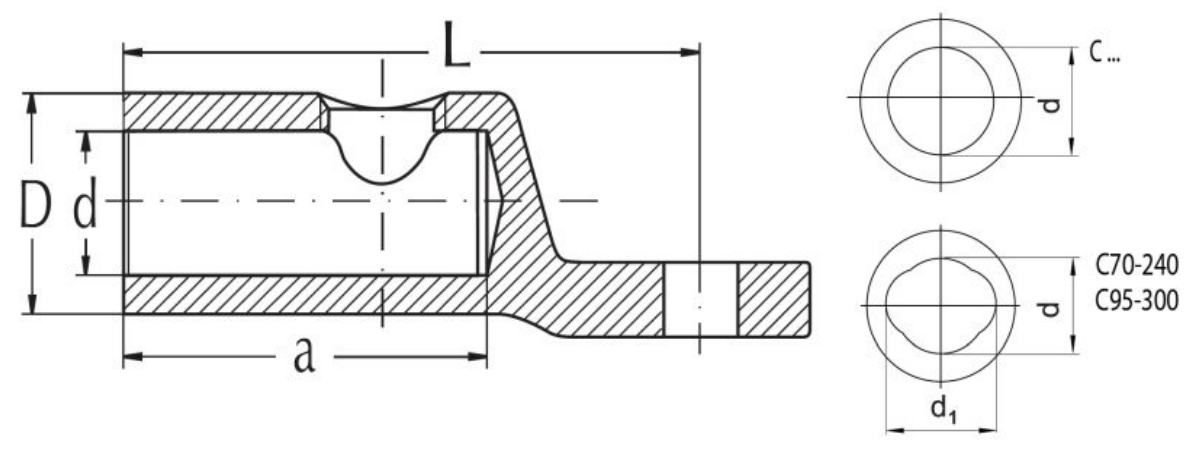

Nexans GPH Cable Lugs MV HV Mechanical Shearbolt 52kV C-Series Dimensions
- Dimension d1 = 26mm
- Centric conductor positioning by centre inserts
Nexans GPH Cable Lugs Part Number | Product Dimensions (mm) | |||
L | d | D | a | |
Nexans C16-95 x 12 | 60mm | 12.5mm | 24mm | 32mm |
Nexans C16-95 x 16 | ||||
Nexans C25-150 x 12 | 79mm | 15.5mm | 30mm | 35mm |
Nexans C25-150 x 16 | ||||
Nexans C70-240 x 12 | 93.5mm | 22¹mm | 35mm | 56mm |
Nexans C70-240 x 16 | ||||
Nexans C95-240 x 12 | 95mm | 20mm | 33mm | 56mm |
Nexans C95-240 x 16 | ||||
Nexans C95-300 x 12 | 105mm | 23¹mm | 36mm | 67mm |
Nexans C95-300 x 16 | ||||
Nexans C120-300 x 12 | 105mm | 25mm | 38mm | 67mm |
Nexans C120-300 x 16 | ||||
Nexans C185-400 x 12 | 120mm | 26mm | 42mm | 82mm |
Nexans C185-400 x 16 | ||||
Nexans C300-500 x 12 | 130mm | 34mm | 52mm | 94mm |
Nexans C300-500 x 16 | ||||
Nexans C300-500 x 20 | ||||
Nexans C400-630 x 12 | 130mm | 34mm | 52mm | 94mm |
Nexans C400-630 x 16 | ||||
Nexans C400-630 x 20 | ||||
Nexans C630-1000 x 20² | 165mm | 41mm | 65mm | 105mm |
Nexans C800-1200 x 20² | 170mm | 45mm | 72mm | 105mm |
Mechanical Shearbolt 52kV C-Series Technical Details
The Cable Lugs bolt has an inner and outer hexagon, which are both related to the various shear-off-areas of the bolt and their different torque moments. The torque moments follow the rule that large conductor cross sections require high torque moments and small cross sections need lower torque moments. The installation instructions for the Nexans GPH Mechanical Cable Lugs MV HV describes use of both hexagons and of the various centre rings and inserts, for the respective conductor types.
- Simple & Quick Installation: The Mechanical Shearbolt C-Series is equipped with common commercially available inner and outer hexagon tools or an improved impact wrench.
- Minimum Storage Costs: The cross-sectional area from 16mm² to 1000mm² is covered by just 4 types of cable lugs.
- Universal Applicability: The Mechanical Shearbolt C-Series can be used for copper and aluminium conductors according to EN 60228 class 1 & class 2.
- Proven Quality: Tested for class 2 conductors according to IEC 61238-1, in failure-free operation for more than 15 years.
Nexans GPH Cable Lugs Selection Guide
The following table provides a further insight on the Nexans GPH Cable Lugs MV HV range for the Mechanical Shearbolt 52kV C-Series product:
Nexans GPH Cable Lugs Part Number | Aluminium in mm² | CU in mm² | Number of Bolts | Palm Hole mm | Outer & Inner Hexagon Tool | |||
Round Stranded Alu (mm²) | Round Solid Alu (mm²) | Sector Stranded Alu (mm²) | Round Stranded Cu (mm²) | Sector Stranded Cu (mm²) | ||||
Nexans C16-95 x 12 | 16-95 | 10-95 | 25-70 | 16-95 | 25-70 | 1 | 13 | SW10 & SW6 |
Nexans C16-95 x 16 | 17 | |||||||
Nexans C25-150 x 12 | 25-150 | 25-150 | 35-120 | 25-150 | 35-120 | 1 | 13 | SW10 & SW6 |
Nexans C25-150 x 16 | 17 | |||||||
Nexans C70-240 x 12 | 70-240 | 70-240 | 70-240 | 70-240 | 70-240 | 2 | 13 | SW13 &SW6 |
Nexans C70-240 x 16 | 17 | |||||||
Nexans C95-240 x 12 | 95-240 | 95-240 | 95-185 | 95-240 | 95-185 | 2 | 13 | SW13 & SW6 |
Nexans C95-240 x 16 | 17 | |||||||
Nexans C95-300 x 12 | 95-300 | 95-300 | 95-240 | 70-300 | 70-240 | 2 | 13 | SW13 & SW8 |
Nexans C95-300 x 16 | 17 | |||||||
Nexans C120-300 x 12 | 120-300 | 120-300 | 120-240 | 120-300 | 120-240 | 2 | 13 | SW19 & SW6 |
Nexans C120-300 x 16 | 17 | |||||||
Nexans C185-400 x 12 | 185-400 | 185-400 | 185-300 | 185-400 | 185-300 | 3 | 13 | SW19 & SW6 |
Nexans C185-400 x 16 | 17 | |||||||
Nexans C300-500 x 12 | 300-500 | 300-500 | 300-400 | 300-500 | 300-400 | 3 | 13 | SW19 & SW8 |
Nexans C300-500 x 16 | 17 | |||||||
Nexans C300-500 x 20 | 32 | |||||||
Nexans C400-630 x 12 | 400-630 | 400-630 | 400-500 | 400-630 | 400-500 | 3 | 13 | SW19 & SW8 |
Nexans C400-630 x 16 | 17 | |||||||
Nexans C400-630 x 20 | 21 | |||||||
Nexans C630-1000 x 20² | 630-1000 | 630-1000 | 630-1000 | 4 | 21 | SW19 &SW8 | ||
Nexans C800-1200 x 20² | 800-1200 | 630-1200 | 630-1000 | 4 | 21 | SW22 & SW8 |
