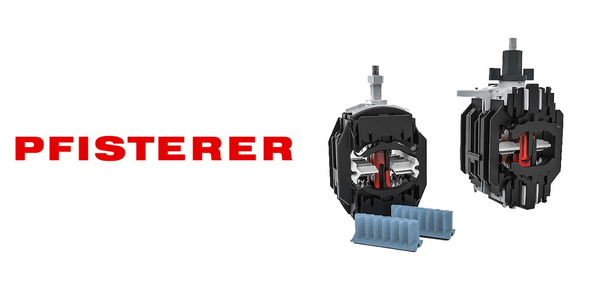

PFISTERER ISICOMPACT

Tap Connector for LV Cables & House Service Connections

Practical installation, good occupational safety and high levels of operational reliability are fundamental criteria for home power connections. ISICOMPACT by PFISTERER – the inventor of multi-conductor cable branch technology to modern labour standards and is perfect for live-line working.

The ISICOMPACT establishes all contacts for a 4-conductor cable branch using a single screw connection. When the screw connection is tightened, contact is established by piercing the insulation on the main line and branch lines.

The patented design offers the following advantages compared to conventional clamping rings:

  • Single-screw solution with built-in torque wrench
  • IP2X contact protection against electrical hazards during all assembly steps
  • Stripping of tap conductors no longer necessary
  • Tap conductors are inserted, laborious threading from the front no longer required
  • Flexible pressure plates ensure a continuous contact force
  • Reduced variant diversity due to broad application areas
  • Compact designs
  • Suitable for all cable conductor types (EN 60228 -N(A)YY, N(A)2XY, N(A)KBA, N(A)Y2Y, N(A)2X2Y)

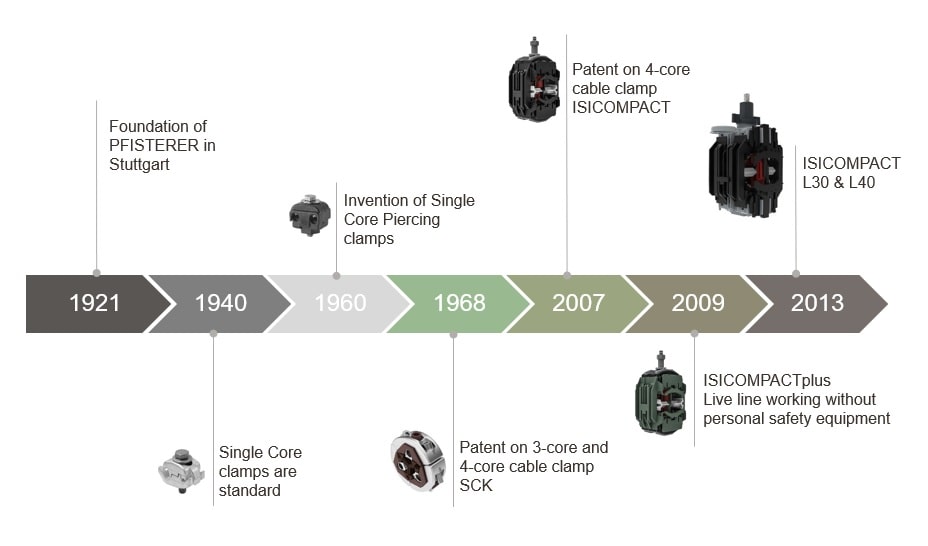

Cable Branch Technique History

With the invention of the compact screw terminal in 1968, PFISTERER set the standard in house connection technology. Well over 20 million SCK have been installed since then. Fast forward 30 years and the time had come for further development – ISICOMPACT technology.


How The ISICOMPACT Works?

Single-screw system

  • 4-conductor branch by tightening one screw
  • Screw connection can be placed in any position
  • Quick and simple installation

Piercing contact technique

  • No stripping of the conductors
  • Shock-proof protection against live conductors
  • Fast installation – good occupational safety

Cross-wedges

  • Penetrate through insulation
  • Support of the main conductors
  • Reliable branch connection over the full service life

Functional product design

  • Touch-safe at every installation step
  • Stepless adjustment to conductor cross-sections
  • Branch conductors are simply placed into the clamp
  • Good occupational safety – simple installation

Universal application

  • Large cross-section ranges
  • For all types of conductor
  • For aluminium and copper conductors
  • Fewer different variants and low inventory costs

Shear-off nut

  • Defined shear-off torque
  • Optimal contact forces
  • Screw breakaway signals end of completion of the installation
  • Simple installation

Spring elements

  • Constant contact quality
  • Compensation of mechanical settling losses
  • Reliable contacting over the full service life

Protection ribs

  • Prevent premature penetration of contacts into main line
  • Breaks during tightening of clamp
  • Break if clamp is distorted
  • Shock-proof protection throughout all installation steps for live line work

Insulating wall with inspection openings

  • Protection against touching the branch line
  • Enables checking of conductor position
  • Good occupational safety for live line work

Installation using standard tools

  • Insulated tools in accordance with EN 60900
  • Requires 13 mm or 17 mm wrench
  • No torque wrench
  • Simple installation

ISICOMPACT - Diagram


How Has The ISICOMPACT Improved?

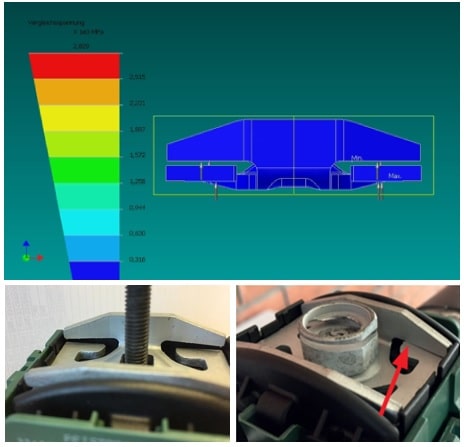

Steel plates with spring characteristics ensure contact force over life time.

  • Steel spring plate for the movement of cable, to ensure a flexible contact system at all times
  • Indicates the installer that the clamp has reached the right contact force

Pfisterer ISICOMPACT | Tap Connector for LV Cables & House Service Connections

Support brackets prevent piercing the insulation before tightening the screw

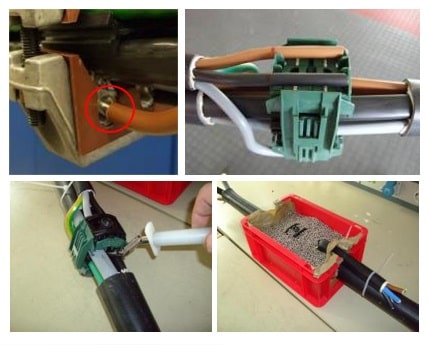

Tested by the German Liability Insurance Association (BG ETEM)

  • Tested by the German Liability Insurance Association (BG ETEM)
  • During and after installation no live parts touchable
  • VDE – Test-Finger, DIN VDE 0470 part 1
  • Bath of steel balls, (as a more tough verification)

Shear-off nut

  • 20Nm Shear off torque guarantees defined contact forces
  • No torque wrench necessary
  • 2 Functionalities
  1. Defines the torque
  2. Breaks the bolt

ISICOMPACT Product Portfolio

Cores Product Code Main cable Tap cable Note
3½ ISICOMPACT 3 ½ ISICOMPACT 3 ½
331 896 021
70/35-150/70
150/95
70/35-150/70
150/95
6-50 6-50 6-50 6-70
3½ & 4 ISICOMPACT multi ISICOMPACT multi
331 896 031
35-150 25-150
70/35-150/70
150/95
50Cu+70-150
70/35-150/70
150/95
50-185 6-50 6-50 6-50 6-70
ISICOMPACT multi FS ISICOMPACT multi FS
331 896 031
35-150 25-150
70/35-150/70
150/95
50Cu+70-15070/35-150/70150/95 50-185 6-50 6-50 6-50 6-70 Up to 4 pilot wires
4 ISICOMPACT S ISICOMPACT S
331 896 011
35-95 25-95 35-95 50-95 6-50 6-50 6-50 6-70
ISICOMPACT M ISICOMPACT M
331 896 003
70-150 70-150 50Cu+70-150 70-185 6-50 6-50 6-50 6-70
ISICOMPACT plus ISICOMPACT plus
331 896 004
70-150 70-185 6-50 6-50 6-50 6-70 AuS ex PSA
ISICOMPACT L30 ISICOMPACT L30
331 897 101 00004
50-240 50-240 25-70Al
10-70Cu
35-70Al
10-70Cu
35-70Al
16-70Cu
35-70
ISICOMPACT L40 ISICOMPACT L40
331 897 001 00002
50-240Cu
70-240Al
70-240 25-95Cu
25-150Al
25-150*
25Cu+35-95
35-95Al*
25-150Cu*
25Cu+35-95
35-95Al*
25-150Cu*
50-15035-185*

*Tap cable at solid main conductors

ISICOMPACT Type Test Overview

Cores Product Code Test Nr. Standard Main Cable Tap cable
3½ ISICOMPACT 3 ½ ISICOMPACT 3 ½ 331 896 021 U-05-090-166
U-05-090-167
U-05-100-099
DIN 57220-3 3×150/70 mm² Cu SM PVC
4×70/35 mm² Cu SM PVC
3×150/70 Cu SM PVC
4×50 mm² Cu SM PVC
4*35 Al RE PVC
4*35 Al RE PVC
4 ISICOMPACT S ISICOMPACT S 331 896 011 U-05-090-168
U-05-090-169
U-05-100-098
DIN 57220-3 4×95 mm² Al SE PVC
4×35 mm² Al RE PVC
4×35 mm² Al RE PVC
4×50 mm² Al SE PVC
4×6 mm² Cu RE PVC
4×35 mm² Al RE PVC
ISICOMPACT M ISICOMPACT M 331 896 003 U-05-070-058
U-05-080-062
U-05-080-063
U-05-080-134
U-05-080-135
U-05-080-136
U-05-090-083
U-05-120-019
U-05-120-020
DIN 57220-3 4×150 mm² Al SE PVC
4×70 mm² Al SE
4×150 mm² Al SE VPE
4×120 mm² Al SM PVC
4×150 mm² Alu SE PVC
4×185 mm² Alu SE PVC
4×185 mm² Alu SE PVC
4×95 mm² Alu SE VPE
4x150mm² Alu SE PVC
4×50 mm² Al SE PVC
4×50 mm² Al SE
4×50 mm² Al SE VPE
4×35 mm² Al RE PVC
4×50 mm² Al SE PVC
4×35 mm² Alu RE PVC
4×50 mm² Alu SE PVC
4×50 mm² Al RM VPE
4×70 mm² Alu SE PVC
ISICOMPACT plus ISICOMPACT plus 331 896 004 U-05-100-097 DIN 57220-3 4×150 mm² Al SE PVC 4×35 mm² Al RE PVC
ISICOMPACT L30 ISICOMPACT L30 331 897 101 00004 U-05-120-006
U-05-120-007
IEC 61238-1 B 3×150 mm² Al SM / 95 AL RE
4x70mm² Al  SM
 8×35 mm² Al RE4x35 mm² AL RE
ISICOMPACT L40 ISICOMPACT L40 331 897 001 00002 U-05-120-182
U-05-130-243
U-05-140-221
U-05-140-222
DIN 57220-3 4×150 mm² Al SE
4×240 mm² Al SE
4×240 mm² Al SE
4×240 mm² Al SE
4×150 mm² Alu SE
4×185 mm² Alu SE
4×150 mm² Alu SE
4×50 mm² Alu SE

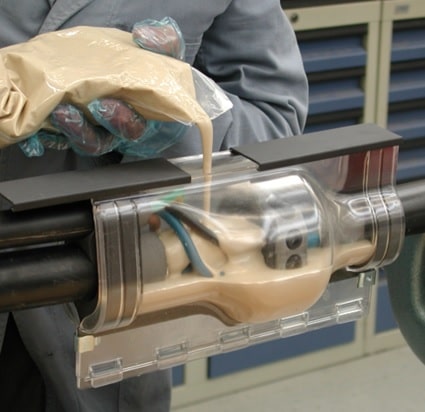

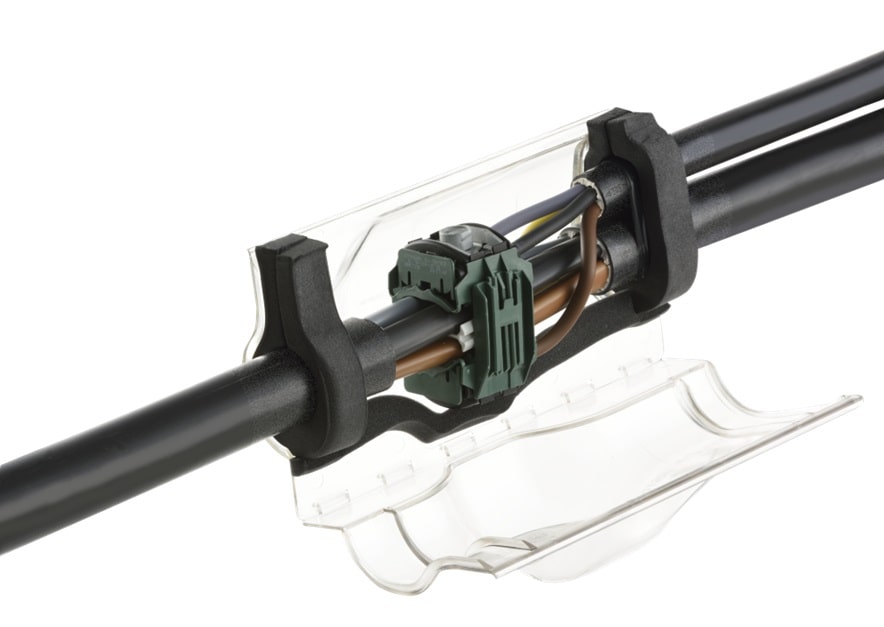

Cast Resins: 2 Different Types

PUR 2000 FILL-BRH
Polyurethane with filler Polybutadiene
Pot time @23°C [min] 18 15
Gel time @23°C [min]  Max. 40 20
Viscosity [mPas]  5.000 3.500
Denisty of mixture [g/cm³]  1,4 1,22
Shore D  55 A 20
Colour  Beige Olive
Remarks No Removable Non-hazardous
Cast Resin

Cast Resin
