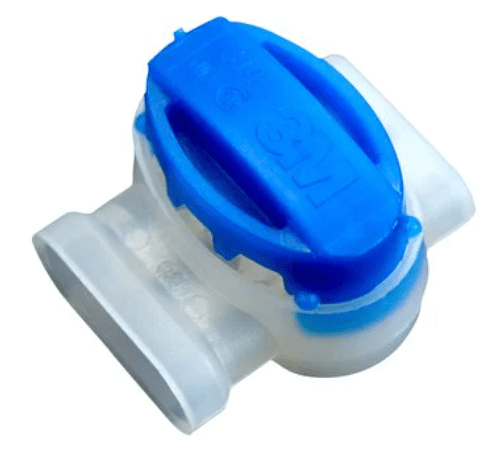

3M Scotchlok 314

3M Scotchlok 314 IDC Pigtail Electrical Connectors are self-stripping, flame-retardant and moisture-resistant. These 3M Insulation Displacement Connectors or IDCs simply snap shut without stripping or twisting the wire and feature a unique ‘U’ contact that provides a quick and dependable electrical connection.

Users are able to provide a quick and dependable connection for two or three 0.5 mm² to 1.5 mm² wire ends with 3M Scotchlok 314 IDC Connectors – the Scotchlok connectors are compatible with the 3M Electrical range of Scotchcast cable joints.

A live spring joint is made by driving the U contact down into the connector. As the U contact is pressed into the connector, it grasps the conductors as it displaces insulation.

View the complete range of 3M Scotchlok Connectors for the connection of low voltage cables, conductors and wires.

➡ Other connectors from Thorne & Derrick | Pfisterer Sicon (Shearbolt) | Cembre Splices & Lugs (Crimp Compression)

3M 314 | Connector Specification

The following table provides a specification overview of the type 314 Scotchlok connector manufactured by 3M Electrical.

Conductor Size	0.5 – 1.5 mm²
Connection Type	Pigtail
Connector Style	Insulation Displacement Connector
Flame Retardant?	Yes
Insulation Material	Nylon
Maximum Operating Temperature	105°F, 40°C
Maximum Recommended Voltage Rating	600V
Maximum Wire Gauge	14 AWG
Minimum Wire Gauge	22 AWG
Product Colour	Blue
Recommended Crimping Tool	E-9BM and/or Mechanics (slip joint) Pliers
RoHS 2011/65/EU Compliant?	Yes
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Voltage Application	Low Voltage
Water Resistant?	Yes
