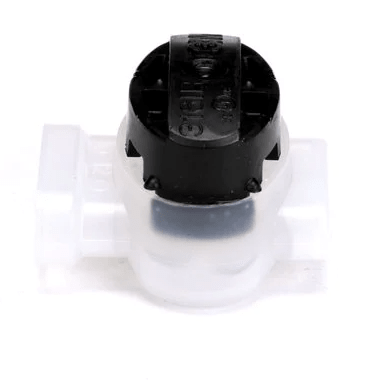

3M Scotchlok 316IR
3M Scotchlok 316IR Insulation Displacement Connectors are ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring resistance to moisture. These 3M Insulation Displacement Connectors or IDCs are nylon insulated and can be used to connect either two or three wires.
They are self stripping and moisture resistant – the Scotchlok connectors are compatible with the 3M Electrical range of Scotchcast cable joints.
Scotchlok 316IR from 3M Electrical are 600V rated for building wire. They are able to withstand temperatures of 221°F (105°C), are UL Listed and RoHS 2011/65/EU Compliant.
View the complete range of 3M Scotchlok Connectors for the connection of low voltage cables, conductors and wires.
âž¡ Other connectors from Thorne & Derrick | Pfisterer Sicon (Shearbolt) | Cembre Splices & Lugs (Crimp Compression)
3M 316IR | Connector Specification
The following table provides a specification overview of the type 316IR Scotchlok connector manufactured by 3M Electrical.
| Conductor Size |
22 – 16 AWG
|
| Connection Type | Pigtail |
| Connector Style | Insulation Displacement Connector |
| Flame Retardant? | Yes |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 105°C, 221°F |
| Maximum Recommended Voltage Rating | 600V |
| Maximum Wire Gauge | 16 AWG |
| Minimum Wire Gauge | 22 AWG |
| Product Colour | Black/White |
| Recommended Crimping Tool | E-9BM |
| RoHS 2011/65/EU Compliant? | Yes |
| Voltage Application | Low Voltage |
| Water Resistant? | Yes |
