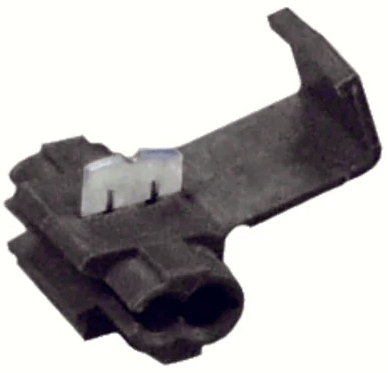

3M Scotchlok 534S

3M Scotchlok 534S IDC double run or tap electrical connectors are intended for use with common thermoplastic insulated wire such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE GPT with a maximum insulation diameter of 3.5 mm.

These 3M Insulation Displacement Connectors or IDCs are suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring.

Scotchlok 534S IDC Connectors from 3M Electrical can accommodate a solid or stranded wire range of 1.5 – 2.5 mm² – the Scotchlok connectors are compatible with the 3M Electrical range of Scotchcast cable joints.

These Insulation Displacement Connectors are UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

View the complete range of 3M Scotchlok Connectors for the connection of low voltage cables, conductors and wires.

➡ Other connectors from Thorne & Derrick | Pfisterer Sicon (Shearbolt) | Cembre Splices & Lugs (Crimp Compression)

3M 534S | Connector Specification

The following table provides a specification overview of the type 534S Scotchlok connector manufactured by 3M Electrical.

Conductor Size	22 to 16 AWG solid/stranded
Connection Type	Double Run or Tap
Connector Style	Insulation Piercing
Flame Retardant?	Yes
Material	Insulator: FR Polypropylene, U-Contact: Tin-plated brass
Backing Material	15 Mil Cardstock
Insulation Material	Polypropylene
Maximum Operating Temperature	194°F, 90°C
Minimum Operating Temperature	-40°F, -40°C
Maximum Wire Gauge	16 AWG
Minimum Wire Gauge	22 AWG
Product Colour Family	Brown
RoHS 2011/65/EU Compliant?	Yes
Voltage Application	Low Voltage
Water Resistant?	No
