ALROC CNPT/240-2-MV-NG

CNPT/240-2-MV-NG cable tool kits are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath and prepare the cable ready for the installation of joints, terminations or connectors. This kit can be used to:

Work on & remove the outer sheath
Remove or work on the shield
Remove the outer semi-conductor
Remove the insulation
Shape the insulation
Tool kits overview
Maintain, hang and fix cables

Cable jointing tools included in the kit CNPT/240-2-MV-NG enable the user to splice each layer of distribution underground cable ranging from 50 mm² up to 240 mm² in 12/20 kV, prior to junctions or terminations installation. Insulation pencilling tools are included.

For any other voltage rating, please check the outer diameter capacity of each tools included in the kit.

Tool Kit Contents

Alroc MF2/40 – Multifunction tool for outer sheath and insulation
MF1+/25 – Tool for bonded semiconductor and peelable with stylus
SRC – Scoring stylus for peelable semiconductor with chamfer
SCH – Chamfering stylus for insulation
ALROC-FENTE – Tool to perform slits on cable’s outer sheath
ROTO-TMG – Connector holder for bolted and clamping connections
GFE-TMG – Roller block for R OTO-TMG to tighten the outer sheath over screen connection
K7/GRATT – Cartridge dedicated to sheath abrading, to be mounted on tool ROTO-TMG
EV/NPT – Tool to spread PE outer sheath with aluminium screen
EV2000 150-240 – Tool to spread PVC outer sheath with aluminium screen
EV150/240 – Tool to spread PVC outer sheath with aluminium screen
GRI – Scraper for residues of bonded semiconductor
LIGAREX – Clamping tool with return spring for straps
TC50 – Penciling tool for insulation for 50mm² in 12/20 kV cables
TC95 – Penciling tool for insulation for 95mm² in 12/20 kV cables
TC150 – Penciling tool for insulation for 150mm² in 12/20 kV cables
TC240 – Penciling tool for insulation for 240mm² in 12/20 kV cables
TCD2000 – Penciling tool for insulation for 150mm² & 240mm² in UTE C33-223 cables

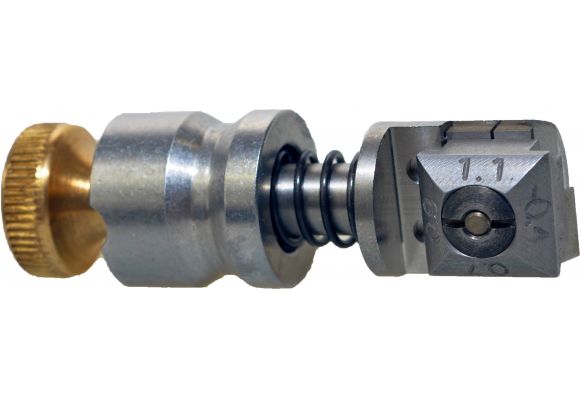

Alroc SRC Scoring Stylus

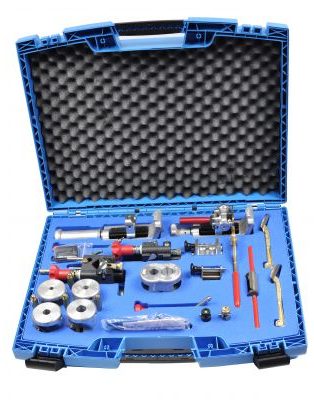

Alroc CNPT/240-2-MV-NG

Technical Specification

Cable Tool Part Number	Diameter	Tool Capacity		Dimensions			Packaging
Cable Tool Part Number	Diameter	Section according to voltage rating	Pencilling tool included	Length	Width	Height	Packaging
Alroc CNPT/240-2-MV-NG	16 – 40 mm 0,630 – 1,575 in	50 – 240mm²	5 TC	575 mm 22,638 in	470 mm 18,504 in	145 mm 5,709 in	Case
