BB14 Bar to Bar
BB14
- Product Category: Exothermic Welding
- Order Code: BB14

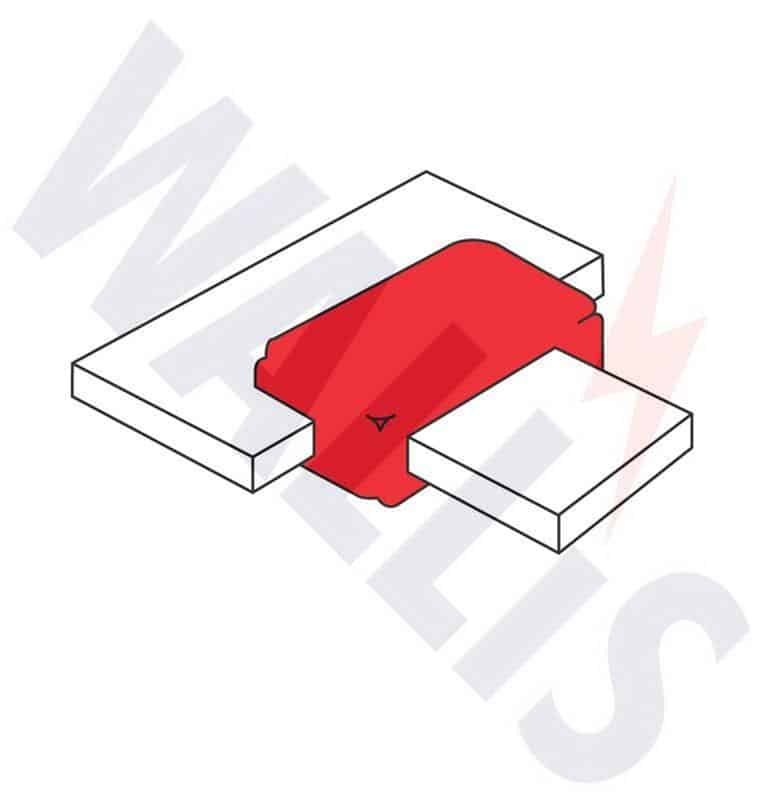

- Application: Bar to Bar Exothermic Welding Connector
Used to weld flat copper tape conductors according to the sizes in the selection table below.
âž¡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Conductor mm x mm | B Conductor mm x mm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 20 x 3 | 20 x 3 | WEP 045 | BB14-C-203203 | HCC 001 |
| 25 x 3 | 25 x 3 | WEP 065 | BB14-C-253253 | |
| 25 x 4 | 25 x 4 | WEP 090 | BB14-C-254254 | |
| 25 x 6 | 25 x 6 | WEP 115 | BB14-C-256256 | |
| 30 x 2 | 30 x 2 | WEP 065 | BB14-C-302302 | |
| 30 x 3 | 30 x 3 | BB14-C-303303 | ||
| 30 x 4 | 30 x 4 | WEP 090 | BB14-C-304304 | |
| 30 x 5 | 30 x 5 | WEP 115 | BB14-C-305305 | |
| 31 x 3 | 31 x 3 | WEP 090 | BB14-C-313313 | |
| 31 x 6 | 31 x 6 | WEP 150 | BB14-C-316316 | |
| 38 x 3 | 38 x 3 | WEP 090 | BB14-C-383383 | |
| 38 x 5 | 38 x 5 | WEP 150 | BB14-C-385385 | |
| 38 x 6 | 38 x 6 | WEP 200 | BB14-C-386386 | |
| 40 x 3 | 40 x 3 | WEP 090 | BB14-C-403403 | |
| 40 x 4 | 40 x 4 | WEP 115 | BB14-C-404404 | |
| 40 x 5 | 40 x 5 | WEP 150 | BB14-C-405405 | |
| 40 x 6 | 40 x 6 | WEP 200 | BB14-C-406406 | |
| 50 x 3 | 50 x 3 | WEP 150 | BB14-D-503503 | HCD 001 |
| 50 x 4 | 50 x 4 | WEP 200 | BB14-D-504504 | |
| 50 x 5 | 50 x 5 | BB14-D-505505 | ||
| 50 x 6 | 25 X 3 | BB14-D-506253 | ||
| 50 x 6 | 40 x 4 | BB14-D-506404 | ||
| 50 x 6 | 50 x 6 | WEP 250 | BB14-D-506506 | |
| 50 x 8 | 50 x 8 | 2 x WEP 150 | BB14-D-508508 |
