BS2 Bar To Steel Surface
BS2
- Product Category: Exothermic Welding
- Order Code: BS2

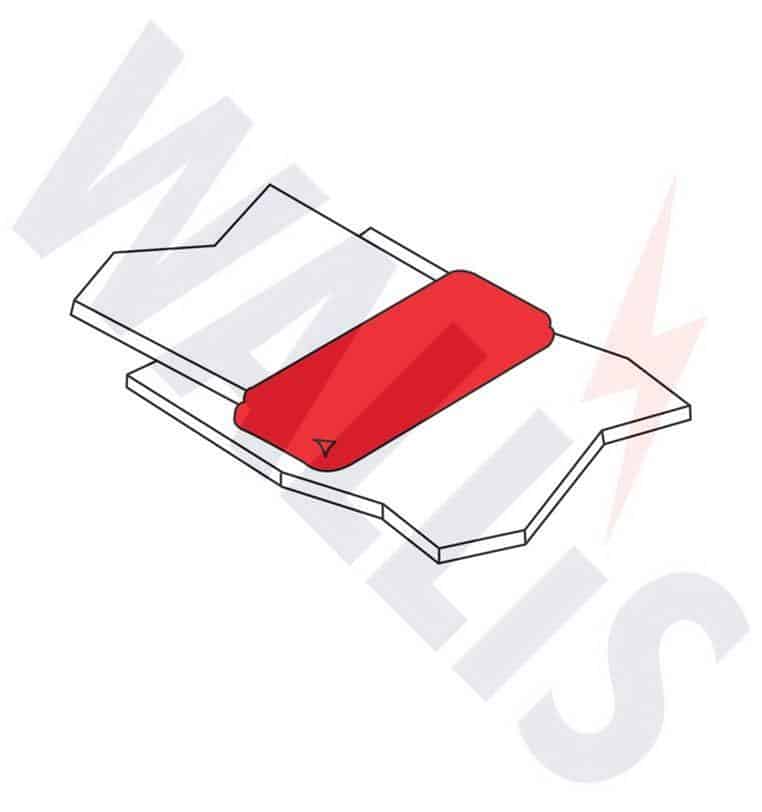

- Application: Bar to Steel Surface Exothermic Welding Connector
Used to weld flat copper tape conductors according to the sizes in the selection table below.
âž¡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Conductor mm x mm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 20 x 3 | WEP 090 | BS2-C-203 | HCC 001 |
| 25 x 3 | BS2-C-253 | ||
| 25 x 4 | BS2-C-254 | ||
| 25 x 6 | WEP 150 | BS2-C-256 | |
| 30 x 2 | WEP 115 | BS2-C-302 | |
| 30 x 3 | BS2-C-303 | ||
| 30 x 4 | WEP 150 | BS2-C-304 | |
| 30 x 5 | WEP 200 | BS2-C-305 | |
| 31 x 3 | WEP 115 | BS2-C-313 | |
| 31 x 6 | WEP 200 | BS2-C-316 | |
| 38 x 3 | WEP 150 | BS2-C-383 | |
| 38 x 5 | WEP 200 | BS2-C-385 | |
| 38 x 6 | BS2-C-386 | ||
| 40 x 3 | WEP 115 | BS2-C-403 | |
| 40 x 4 | WEP 200 | BS2-C-404 | |
| 40 x 5 | BS2-C-405 | ||
| 40 x 6 | WEP 250 | BS2-C-406 | |
| 50 x 3 | WEP 200 | BS2-C-503 | |
| 50 x 4 | 2 x WEP 150 | BS2-D-504 | HCD 001 |
| 50 x 5 | BS2-D-505 | ||
| 50 x 6 | BS2-D-506 |
