Cable Drum Jacks

Cable Jacks

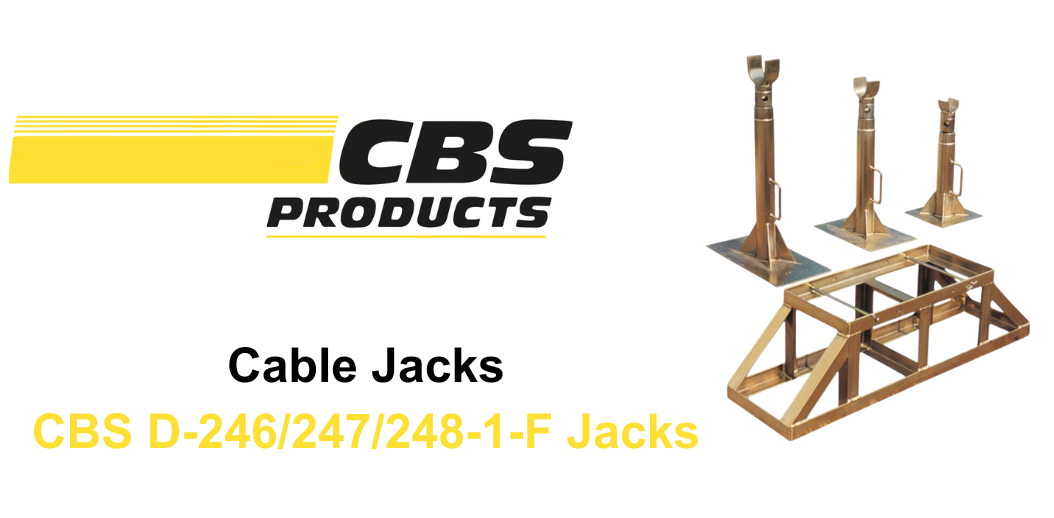

CBS D-246/247/248-1-F

The CBS D-246/247/248-1-F jacks, are designed by CBS Products for convenience and ease of use. Its compact size makes it ideal for various settings.

Additionally, an adjustable band brake ensures controlled cable tensioning, enhancing safety and stability during operation. This stand is a practical solution for those needing reliable drum handling.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Cable Jacks

jack key features

Manufactured in a sturdy steel construction, with heavy-duty Acme screw threads to provide safe lifting.

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.

cable jack specification

Specifications	D-246-1-F	D-247-F	D-248-1-F
Length	300mm	460mm	600mm
Width	300mm	300mm	300mm
Height	570mm	710mm	835mm
Weight	19kg	23kg	36kg
Lifting Capacity (Pair)	3 Tonne	6 Tonne	8 Tonne

Ordering information

D-246-1-F 3 Tonne Drum Jack – 2x Required	D-248-1-F 8 Tonne – 2x Required
D-247-F 6 Tonne Drum Jack – 2x Required	D-454-1-F Drum Jack Steady Base
