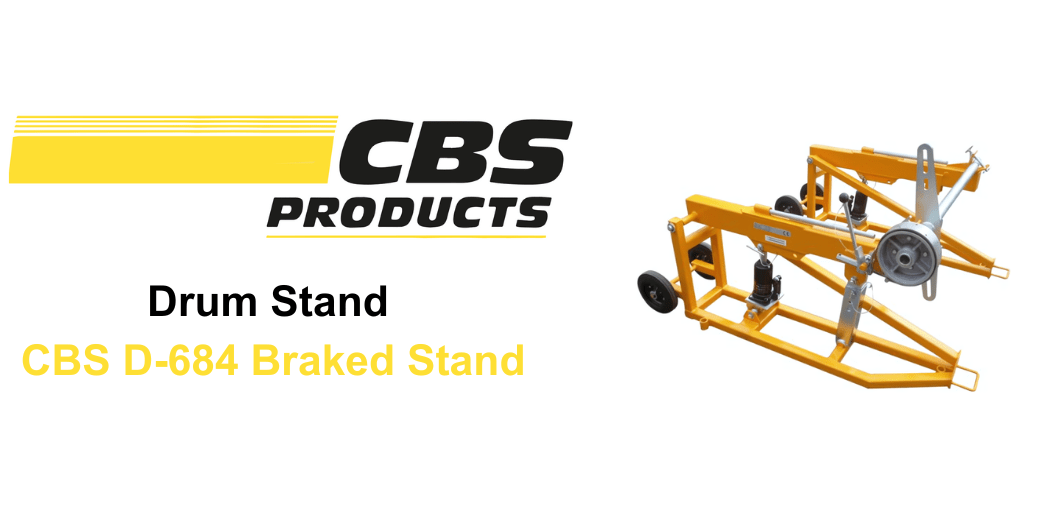

Cable Drum Stand CBS D-684 Braked Stand

Cable Drum Stand CBS D-684 Braked Stand


Cable Drum Stand

CBS D-684 Braked Stand

The CBS D-684 drum stand is designed for convenience and ease of use. Its compact size makes it ideal for various settings, and the inclusion of wheels on each side facilitates effortless transportation. The drum lifting mechanism utilises two hand-operated hydraulic jacks, allowing for precise and efficient lifting of cable drums and conductors.

Additionally, an adjustable band brake ensures controlled cable tensioning, enhancing safety and stability during operation. This stand is a practical solution for those needing reliable drum handling.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

Cable Drum Stand CBS D-684 Braked Stand

Cable Drum Stand CBS D-684 Braked Stand

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.


Braked Cable Drum Stand Specification

Specifications D-684-2-2 D-684-2-4
Max Cable Drum Weight 2000kg 4000kg
Max Cable Drum Width 1640mm 1640mm
Min Cable Drum Diameter 1500mm 1500mm
Max Cable Drum Diameter 2400mm 2200mm
Spindle Diameter 73mm 73mm
Length 1790mm 1790mm
Width Per Side 462mm 462mm
Height 610mm 610mm
Weight 254kg 247kg

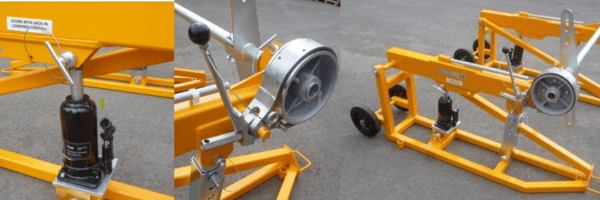

Braked Drum Stand CBS D-684

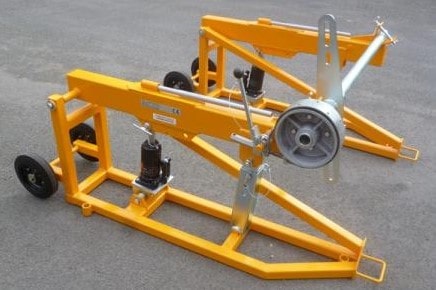

Braked Stand CBS D-684


Cable Drum Stand Ordering Information
D-684-2-2 2000kg Braked Stand
D-684-2-4 4000kg Braked Stand
