CB1 Cable To Bar
CB1
- Product Category: Exothermic Welding
- Order Code: CB1

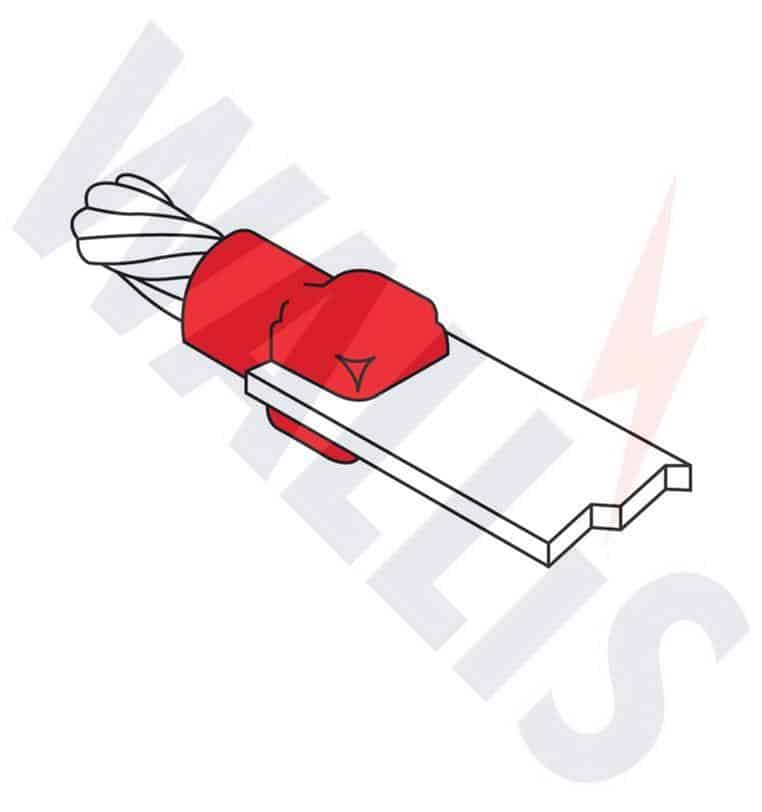

- Application: Cable to Bar Exothermic Welding Connector
Used to weld copper conductors according to the sizes in the selection table below.
âž¡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Conductor sqmm | B Conductor mm x mm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 16 | 20 x 3 | WEP 045 | CB1-C-16203 | HCC 001 |
| 25 x 3 | CB1-C-16253 | |||
| 25 | 20 x 3 | CB1-C-25203 | ||
| 25 x 3 | CB1-C-25253 | |||
| 35 | 20 x 3 | CB1-C-35203 | ||
| 25 x 3 | CB1-C-35253 | |||
| 8mm ∅ | 20 x 3 | CB1-C-8SC203 | ||
| 25 x 3 | WEP 065 | CB1-C-8SC253 | ||
| 50 | 20 x 3 | WEP 045 | CB1-C-50203 | |
| 25 x 3 | WEP 065 | CB1-C-50253 | ||
| 70 | 25 x 3 | CB1-C-70253 | ||
| 25 x 4 | CB1-C-70254 | |||
| 25 x 6 | CB1-C-70256 | |||
| 95 | 25 x 3 | WEP 090 | CB1-C-95253 | |
| 25 x 4 | CB1-C-95254 | |||
| 25 x 6 | CB1-C-95256 | |||
| 120 | 25 x 3 | CB1-C-120253 | ||
| 25 x 4 | CB1-C-120254 | |||
| 25 x 6 | CB1-C-120256 | |||
| 30 x 5 | WEP 115 | CB1-C-120305 | ||
| 150 | 25 x 6 | CB1-C-150256 | ||
| 30 x 5 | CB1-C-150305 | |||
| 40 x 5 | WEP 150 | CB1-C-150405 | ||
| 50 x 3 | WEP 115 | CB1-C-150503 | ||
| 50 x 4 | WEP 150 | CB1-C-150504 | ||
| 50 x 6 | CB1-C-150506 | |||
| 50 x 8 | WEP 200 | CB1-C-150508 | ||
| 185 | 30 x 5 | WEP 150 | CB1-C-185305 | |
| 31 x 6 | CB1-C-185316 | |||
| 38 x 6 | CB1-C-185386 | |||
| 40 x 5 | CB1-C-185405 | |||
| 50 x 4 | WEP 200 | CB1-D-185504 | HCD 001 | |
| 50 x 5 | CB1-D-185505 | |||
| 50 x 6 | CB1-D-185506 | |||
| 50 x 8 | WEP 250 | CB1-D-185508 | ||
| 240 | 50 x 3 | WEP 200 | CB1-D-240503 | |
| 50 x 4 | CB1-D-240504 | |||
| 50 x 5 | CB1-D-240505 | |||
| 50 x 6 | 2 x WEP 150 | CB1-D-240506 | ||
| 300 | 50 x 6 | CB1-D-300506 | ||
| 50 x 8 | 2 x WEP 200 | CB1-D-300508 |
