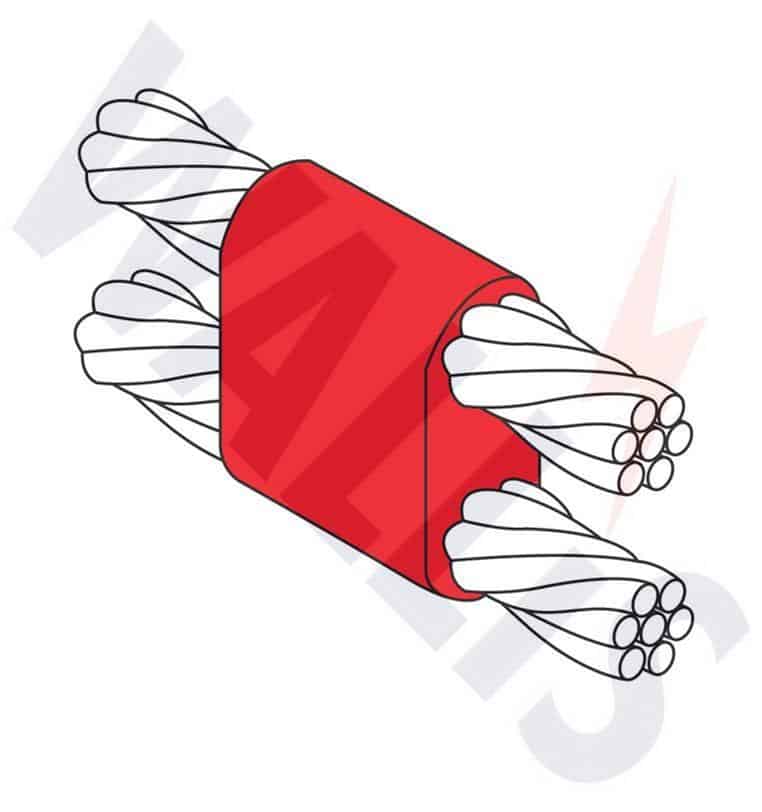

CC7 Cable To Cable
CC7
- Product Category: Exothermic Welding
- Order Code: CC7
- Application: Cable to Cable Exothermic Welding Connector
Used to weld copper conductors according to the sizes in the selection table below.
âž¡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Conductor sqmm | B Conductor sqmm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 16 | 16 | WEP 045 | CC7-C-1616 | HCC 001 |
| 25 | 25 | CC7-C-2525 | ||
| 35 | 25 | WEP 065 | CC7-C-3525 | |
| 35 | CC7-C-3535 | |||
| 8mm ∅ | 8mm ∅ | WEP 090 | CC7-C-88SC | |
| 50 | 25 | WEP 065 | CC7-C-5025 | |
| 35 | WEP 090 | CC7-C-5035 | ||
| 50 | CC7-C-5050 | |||
| 70 | 25 | CC7-C-7025 | ||
| 35 | CC7-C-7035 | |||
| 50 | WEP 115 | CC7-C-7050 | ||
| 70 | CC7-C-7070 | |||
| 95 | 35 | CC7-C-9535 | ||
| 50 | CC7-C-9550 | |||
| 70 | CC7-C-9570 | |||
| 95 | WEP 150 | CC7-C-9595 | ||
| 120 | 35 | CC7-C-12035 | ||
| 50 | CC7-C-12050 | |||
| 70 | CC7-C-12070 | |||
| 95 | WEP 200 | CC7-C-12095 | ||
| 120 | CC7-C-120120 | |||
| 150 | 50 | WEP 150 | CC7-C-15050 | |
| 70 | CC7-C-15070 | |||
| 95 | WEP 200 | CC7-C-15095 | ||
| 120 | WEP 250 | CC7-C-150120 | ||
| 150 | 2 x WEP 150 | CC7-D-150150 | HCD 001 | |
| 185 | 70 | WEP 200 | CC7-C-18570 | HCC 001 |
| 95 | CC7-C-18595 | |||
| 120 | WEP 250 | CC7-C-185120 | ||
| 150 | 2 x WEP 150 | CC7-D-185150 | HCD 001 | |
| 185 | CC7-D-185185 | |||
| 240 | 95 | WEP 250 | CC7-C-24095 | HCC 001 |
| 120 | CC7-C-240120 | |||
| 150 | 2 x WEP 150 | CC7-D-240150 | HCD 001 | |
| 185 | CC7-D-240185 | |||
| 240 | 2 x WEP 200 | CC7-D-240240 | ||
| 300 | 120 | 2 x WEP 150 | CC7-D-300120 | |
| 150 | CC7-D-300150 | |||
| 185 | 2 x WEP 200 | CC7-D-300185 | ||
| 240 | 2 x WEP 250 | CC7-D-300240 | ||
| 300 | CC7-D-300300 |
