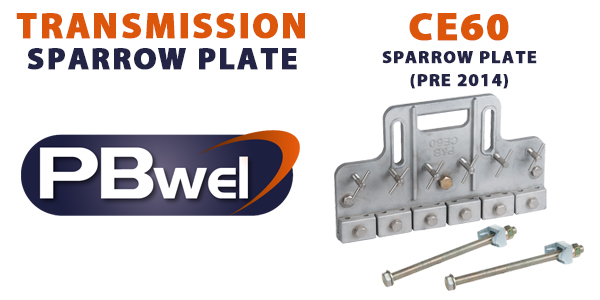

CE60 Sparrow Plate 132kV, 275kV 400kV (Pre 2014)

CE60 Sparrow Plate

MK1 (PRE-2014)

Pbwel CE60 Sparrow Plate EFP-16785 suitable for the temporary earthing of transmission line conductors and overhead power lines within the range 132kV, 275kV and 400kV and have a short current rating of 36kA/1s and a continuous current rating of 600A.

The CE60 Sparrow Plate is a multiple earth tower bonding plate which is designed for the control of induced currents and to provide common point of earthing connection for portable drain earths, which will permit the safe and effective control of induced currents and voltage.

CE60 Sparrow Plate fits up to six conductor earths with PB50F Ferrule terminations and up to six further equipment earths and also has the provision for up to four interconnecting leads (120 sq.mm) with PB120 palm terminations.

Transmission Line Drain Earthing System Scheme Tee Connector Assemblies for interconnecting Sparrow Plate ‘long’ bonds are also available and pre-2014 CE60 Sparrow Plates can be refurbished and modified to suit the post 2014 Sparrow Plate design upon request.

CE60 Sparrow Plate (Pre 2014)

Benefits

Lightweight aluminium alloy
Good corrosion resistance
PB50F and PB120F ferrules available

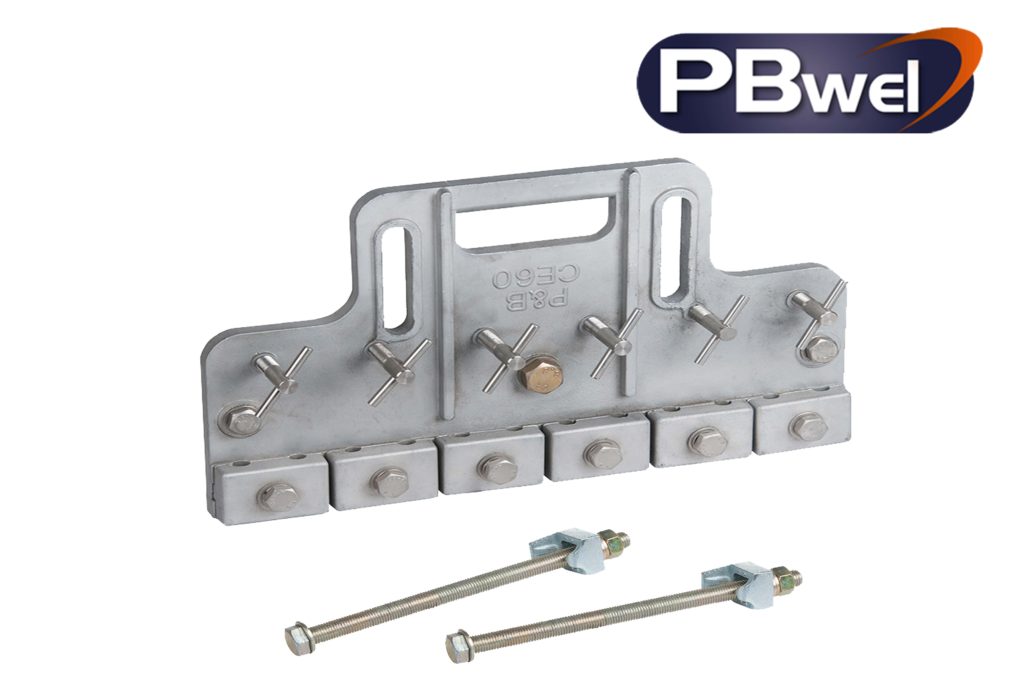

CE60 SPARROW PLATE MK1 (PRE-2014) EFP-16785

A full range of Transmission Line Earthing Equipment are available for use with the CE60 Sparrow Plate
