CR3 Cable To Earth Rod
CR3
- Product Category: Exothermic Welding
- Order Code: CR3

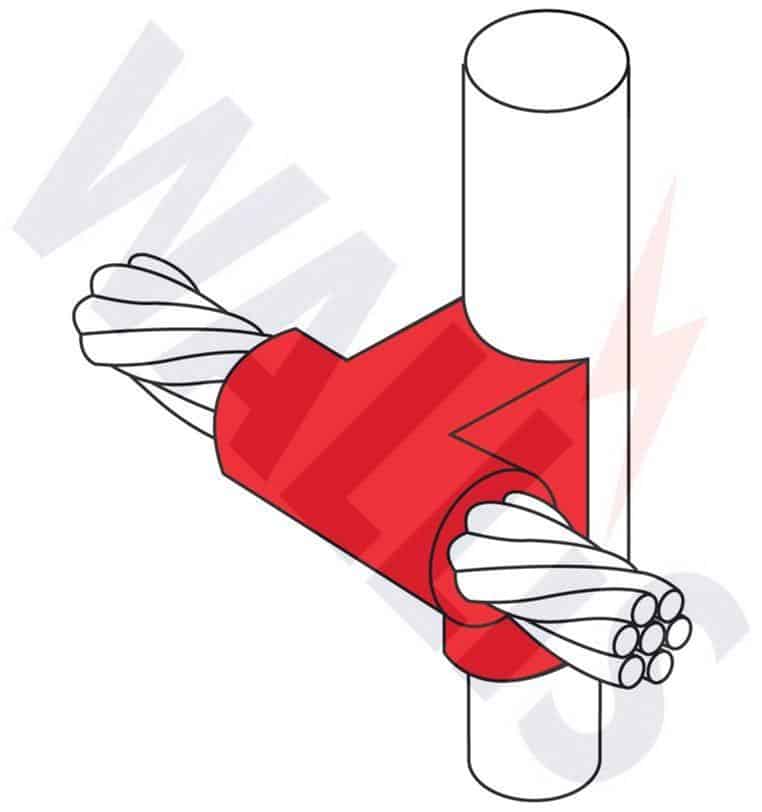

- Application: Cable to Earth Rod Exothermic Welding Connector
Used to weld copper conductors according to the sizes in the selection table below.
➡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Earth Rod mm | B Earth Rod inches | C Conductor sqmm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 12.7 | 1/2″ | 16 | WEP 090 | CR3-E-12716 | HCC 001 |
| 25 | CR3-E-12725 | ||||
| 35 | CR3-E-12735 | ||||
| 8mm ∅ | WEP 115 | CR3-E-1278SC | |||
| 50 | CR3-E-12750 | ||||
| 70 | CR3-E-12770 | ||||
| 95 | CR3-E-12795 | ||||
| 120 | WEP 150 | CR3-E-127120 | |||
| 150 | CR3-E-127150 | ||||
| 185 | WEP 250 | CR3-E-127185 | |||
| 240 | 2 x WEP 200 | CR3-E-127240 | |||
| 300 | 2 x WEP 250 | CR3-E-127300 | |||
| 14.2 | 5/8″ | 16 | WEP 090 | CR3-E-14216 | HCC 001 |
| 25 | CR3-E-14225 | ||||
| 35 | CR3-E-14235 | ||||
| 8mm ∅ | WEP 115 | CR3-E-1428SC | |||
| 50 | CR3-E-14250 | ||||
| 70 | CR3-E-14270 | ||||
| 95 | CR3-E-14295 | ||||
| 120 | WEP 150 | CR3-E-142120 | |||
| 150 | WEP 200 | CR3-E-142150 | |||
| 185 | WEP 250 | CR3-E-142185 | |||
| 240 | 2 x WEP 200 | CR3-J-142240 | HCD 001 | ||
| 300 | 2 x WEP 250 | CR3-J-142300 | |||
| 17.2 | 3/4″ | 16 | WEP 090 | CR3-E-17216 | HCC 001 |
| 25 | CR3-E-17225 | ||||
| 35 | CR3-E-17235 | ||||
| 8mm ∅ | WEP 115 | CR3-E-1728SC | |||
| 50 | CR3-E-17250 | ||||
| 70 | WEP 150 | CR3-E-17270 | |||
| 95 | CR3-E-17295 | ||||
| 120 | WEP 200 | CR3-E-172120 | |||
| 150 | WEP 250 | CR3-E-172150 | |||
| 185 | 2 x WEP 200 | CR3-J-172185 | HCD 001 | ||
| 240 | CR3-J-172240 | ||||
| 300 | 3 x WEP 200 | CR3-J-172300 |
