CS3 Cable To Steel Surface
CS3
- Product Category: Exothermic Welding
- Order Code: CS3

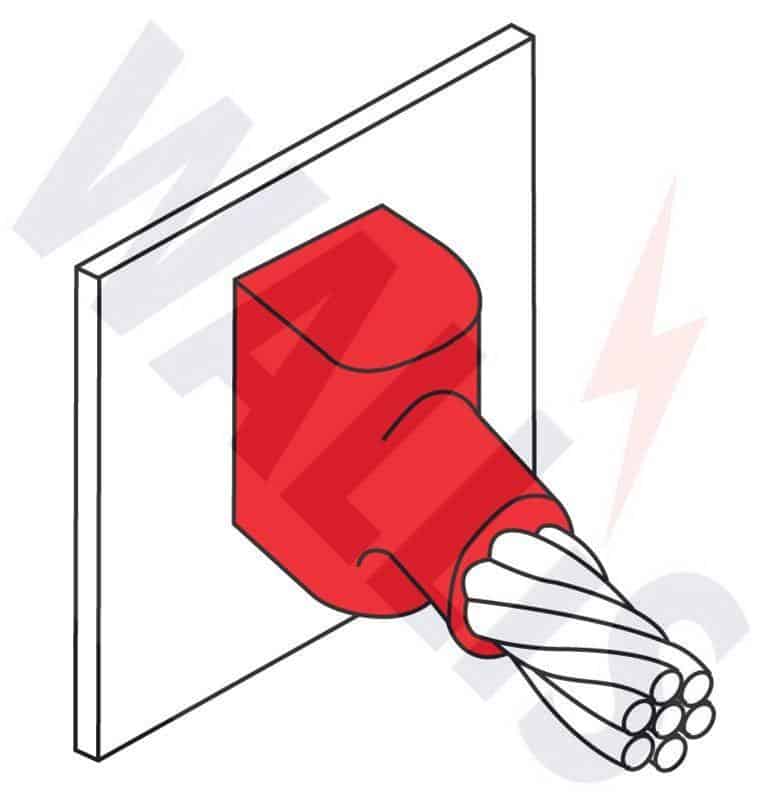

- Application: Cable to Steel Surface Exothermic Welding Connector
Used to weld copper conductors according to the sizes in the selection table below.
âž¡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.
| A Conductor sqmm | Weld Powder | Exothermic Welding Mould | Handle Clamp |
| 16 | WEP 045 | CS3-C-16 | HCC 001 |
| 25 | CS3-C-25 | ||
| 35 | CS3-C-35 | ||
| 8mm ∅ | WEP 065 | CS3-C-8SC | |
| 50 | CS3-C-50 | ||
| 70 | WEP 090 | CS3-C-70 | |
| 95 | WEP 115 | CS3-C-95 | |
| 120 | CS3-C-120 | ||
| 150 | CS3-C-150 | ||
| 185 | WEP 200 | CS3-C-185 | |
| 240 | CS3-C-240 | ||
| 300 | WEP 250 | CS3-C-300 |
