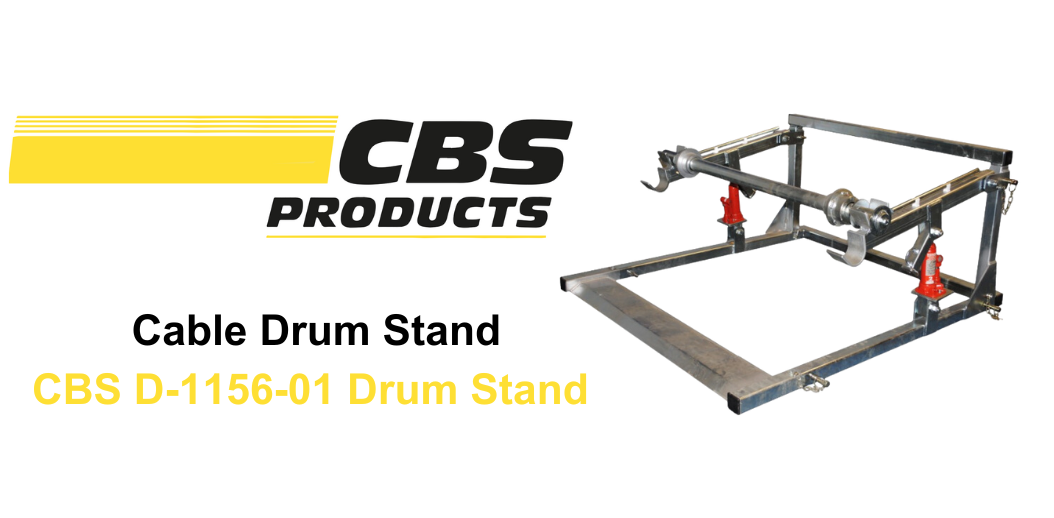

CBS D-1156-01 Cable Drum Stand

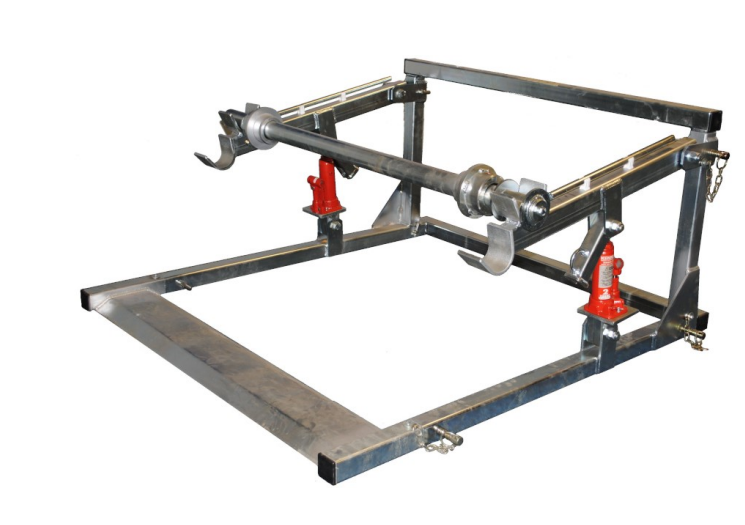

The CBS D-1156-01 drum stand is designed for convenience and ease of use. Its compact size makes it ideal for various settings, and the inclusion of wheels on each side facilitates effortless transportation. The drum lifting mechanism utilises two hand-operated hydraulic jacks, allowing for precise and efficient lifting of cable drums and conductors.
Additionally, an adjustable band brake ensures controlled cable tensioning, enhancing safety and stability during operation. This stand is a practical solution for those needing reliable drum handling.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.
Drum Stand | CBS D-1156-01 Cable Stand
➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.
Cable stand specification
Designed in sections for ease of transportation and simply slots together to form a rigid and stable drum stand. The shaft is fitted with bearings and drum location collars are also included. Two hydraulic jacks provide drum lifting.
| Max Drum Weight | 500kg |
| Min Drum Diameter | 850mm |
| Max Drum Diameter | 1200mm |
| Max Drum Width | 800mm |
| Length | 1278mm |
| Width | 1270mm |
| Height | 615mm |
| Spindle Diameter | 51mm |
| Weight | 98kg |
Cable Drum Stand ordering information
| D-1156-01 | Cable Drum Stand |
