Cable Drum Stand CBS D-711 Braked Stand

Cable Drum Stand CBS  D-711 Braked Stand

Drum Stand | CBS D-711 Braked Stand


Braked Cable Drum drum stand

CBS D-711 Cable Drum Stand

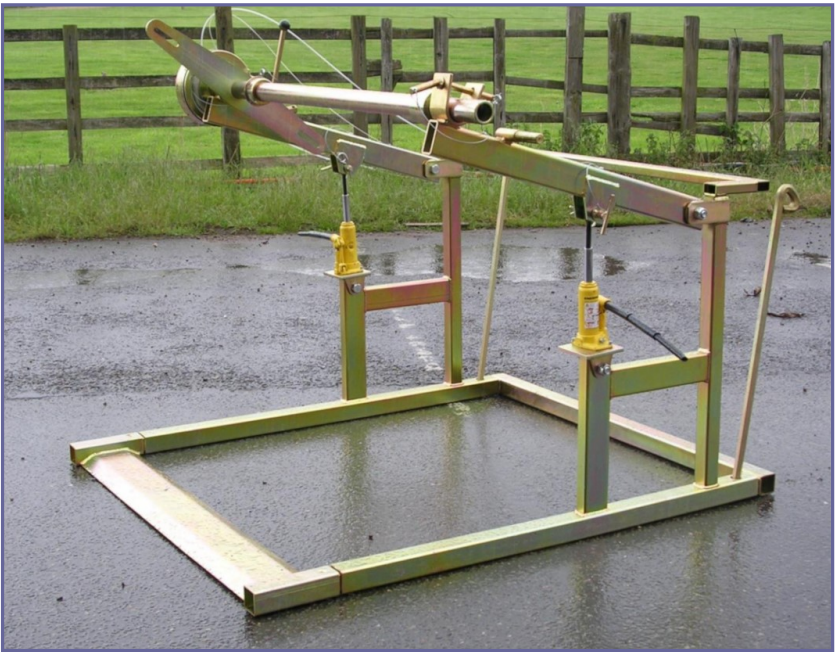

The CBS D-711 cable drum stand is designed for convenience and ease of use. Its compact size makes it ideal for various settings, and the inclusion of wheels on each side facilitates effortless transportation. The drum lifting mechanism utilises two hand-operated hydraulic jacks, allowing for precise and efficient lifting of cable drums and conductors.

Additionally, an adjustable band brake ensures controlled cable tensioning, enhancing safety and stability during operation. This stand is a practical solution for those needing reliable drum handling.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation or stringing of low, medium and high voltage power cables and conductors into underground trench, duct or pylon towers.

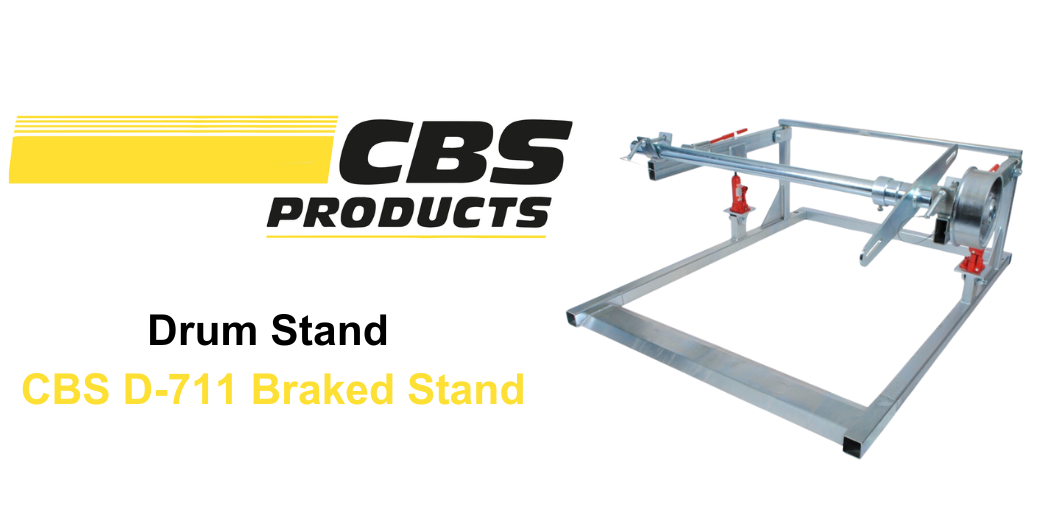

Drum Stand | CBS D-711 Braked Stand


drum stand key features

The CBS D-711 Braked Drum Stand has been designed in sections for ease of transportation and is simple to assemble. The stand incorporates a band brake to provide smooth cable tensioning. Two hydraulic pumps provides drum lifting to a suitable working height.

➡ Contact Thorne & Derrick for the complete range of cable rollers, cable socks, conduit rods and underground cable protection.


Braked Cable Drum Stand Specification

Specifications D-711 D-711-1 D-711-01 D-711-02
Max Cable Drum Weight 1500kg 1500kg 1500kg 1500kg
Max Cable Drum Width 1000mm 1000mm 1100mm 1300mm
Min Cable Drum Diameter 1000mm 600mm 900mm 900mm
Max Cable Drum Diameter 1600mm 1200mm 1900mm 1900mm
Spindle Diameter 54mm 54mm 54mm 54mm
Length 1640mm 1640mm 1640mm 1640mm
Width  1480mm 1480mm 1480mm 1480mm
Height 630mm 630mm 900mm 900mm
Weight 122kg 128kg 132kg 135kg

Cable Drum Stand Ordering Information
D-684-2-2 2000kg Braked Stand
D-684-2-4 4000kg Braked Stand
