Elastimold 200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings are for use on transformers, switchgear and other MV-HV electrical equipment applications.

The transformer bushings incorporate IEEE 386 standard interfaces and are constructed of molded epoxy with stainless steel flanges for mounting by welding or gasketed clamp.

High voltage switchgear and transformer bushings are available for use on air, oil or SF6 insulated equipment – also available with variants which are rated for submersible, padmount, indoor, outdoor and other applications. Optional extras include hold-down bail tabs and replaceable studs for 200-amp deepwell bushings.

See Also: Loadbreak & Deadbreak Elbow Connectors

Elastimold

Power & High Voltage Underground Cable Accessories

Elastimold Connectors

MV HV Joints | Terminations | Connectors | Elbows | Splices | Repairs | Fuses

200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings
Elastimold Equipment Bushing Range Description  Voltage Class Elastimold Part Number  Bushing Shank Length Notes

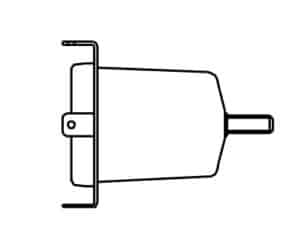

Short Shank Well with Bail Tabs Short Shank Well with Bail Tabs and Non-Replaceable Well Stud 15/25kV
35kV
K1601PC-S1
L1601PC-S1
2¾” N3, 7, 12
Short Shank Well with Bail Tabs and with Replaceable Well Stud 15/25kV
35kV
K1601PC-S1-R
L1601PC-S1-R
2¾” N1, 3, 7, 12
Short Shank Well without Bail Tabs and Non-Replaceable Well Stud 15/25kV
35kV
K1601PC-S2
L1601PC-S2
2¾” N3, 7, 12
Short Shank Well without Bail Tabs and with Replaceable Well Stud 15/25kV
35kV
K1601PC-S2-R
L1601PC-S2-R
2¾” N1, 3, 7, 12

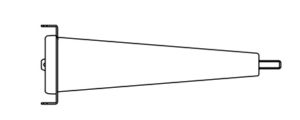

Long Shank Well with Bail Tabs Long Shank Well with Bail Tabs and Non-Replaceable Well Stud 15/25kV
35kV
K1601PC-T1
L1601PC-T1
9¼” N3, 7, 12
Long Shank Well with Bail Tabs and with Replaceable Well Stud 15/25kV
35kV
K1601PC-T1-R
L1601PC-T1-R
9¼” N1, 3, 7, 12
Long Shank Well without Bail Tabs and Non-Replaceable Well Stud 15/25kV
35kV
K1601PC-T2
L1601PC-T2
9¼” N3, 7, 12
Long Shank Well without Bail Tabs and with Replaceable Well Stud 15/25kV
35kV
K1601PC-T2-R
L1601PC-T2-R
9¼” N1, 3, 7, 12

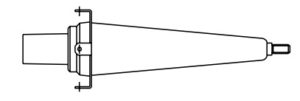

200A Deadbreak Bushing 200A Deadbreak Bushing
200A Deadbreak Bushing
200A Deadbreak Bushing
15/25kV
15/25kV
15/25kV
K180S4
K180T4
K180C4
2 9⁄16
7 11⁄32
9¼”
N3, 8, 11

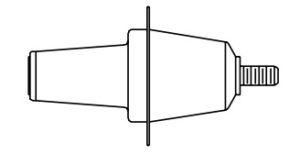

 600A Short Shank Bushing 600A Short Shank Bushing without/Stud
600A Short Shank Bushing without/Stud
600A Cu Short Shank Bushing without/Stud
15/25kV
35kV
15/25kV
K650S1
750S1
K675S1
 2 15⁄16″ N2, 5, 9, 12, 13
N2, 5, 10, 12, 14
N3, 5, 9, 12, 13

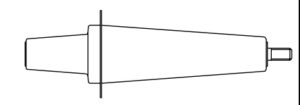

 600A Long Shank Bushing 600A Long Shank Bushing without/Stud
600A Cu Long Shank Bushing without/Stud
600A Long Shank Bushing without/Stud
600A 12″ Long Shank Bushing without/Stud
15/25kV
15/25kV
35kV
35kV
K650T1
K675T1
750T1
750L12
8 9⁄16″
8 9⁄16″
8 9⁄16″
12″
N2, 5, 9, 12, 13
N3, 5, 9, 12, 13
N2, 5, 10, 12, 14
N2, 5, 10, 12, 14

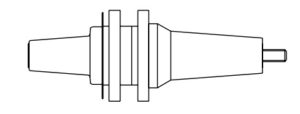

 600A In-Air Long Shank Bushing 600A In-Air Long Shank Bushing without/Stud
600A Cu In-Air Long Shank Bush. with/Stud
Boot & Collars for K600T1 to Use in Air
15/25kV
15/25kV
15/25kV
K650TBC
K675TBC
600BC
 8 9⁄16″ N2, 4, 9, 6, 12
N3, 5, 9, 6, 12
N6



N1. Replacement stud available separately. Specify 1601RS.
N2. Equipped with standard aluminum conductor rod.
N3. Equipped with copper conductor rod.
N4. Includes 5⁄8-11 threaded stud at elbow end.
N5. Includes 5⁄8-11 threaded hole at elbow end.
N6. Provides increased creep and strike.
N7. Includes 1601PPC1 shipping cap.
N8. Includes 180PPC shipping cap.
N9. Includes 650PPC shipping cap.
N10. Includes 750PPC1 shipping cap.
N11. Parking stands for 200A deadbreak applications are available as separate items. Specify 151PS.
N12. Parking stands for 200A loadbreak and 600A deadbreak applications are available as separate items. Specify 160PS.
N13. Aluminum stud available separately. Specify 650SA.
N14. Aluminum stud available separately. Specify 750SA.

200 Amp & 600 AMp Elastimold Transformer bushings

Should you require technical support with component product selection for Elastimold 200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings please contact us.

There is a complete range of MV-HV cable to electrical equipment bushing wells, loadbreak bushing inserts (standard, extended and feed-thru) which are compatible with loadbreak elbow connectors (including replacement, repair, fused and ground type elbows).

Surge arresters can be integrated with medium/high voltage power and electrical distribution systems, 15-35kV.
