Elastimold High Voltage Silicone Shrink-Fit Terminations are manufactured using an optimised weather-resistant silicone formulation and offer superior cable sealing and voltage withstand characteristics.

Elastimold silicone shrink-fit terminations have three different shed designs for superior weathering – 15kV, 25/28kV and 35kV, accommodating cables ranging from #2 AWG to 1250 kcmil and cable types such as XLPE and EPR with various shield constructions.

Integral Hi-K voltage stress control tubes provide uniform voltage grading over the length of the termination and eliminates damaging voltage stress concentrations at the cable insulation shield edge. The lightweight, compact design allows installations where space is restricted and can be used within free hanging applications.

See Also: Loadbreak & Deadbreak Elbow Connectors

Elastimold

Power & High Voltage Underground Cable Accessories

Elastimold High Voltage Silicone Shrink-Fit Terminations

Technical Specification

Elastimold Cable Termination Part Number R2IT15 Indoor R2T15 Outdoor R2T28 Outdoor R2T35 Outdoor
Sizes Available 1, 2, 4 1, 2, 4 2, 4 2, 4
Voltage Rating (kV) 15kV 15kV 25/28kV 35kV
Maximum Design Voltage To Ground (kV) 9.5kV 9.5kV 16kV 22kV
Corona Extinction Voltage (kV) (≤3 p.c) (Partial Discharge) 13kV 13kV 22kV 30kV
Number of Sheds 0 4 6 8
Minimum Strike Distance Inches (mm) 8.4 (213) 11.6 (295) 14.5 (368) 16.8 (427)
Creepage Distance Inches (mm) 8.4 (213) 15.0 (381) 22.8 (579) 30.0 (762)
Insulation Withstand Voltage
Lightning Impulse (BIL Dry 110 Withstand) (kV Crest) 110kV 110kV 150kV 200kV
10 Seconds Wet (60 Hz) (kV) N/A 45kV 60kV 80kV
1 Minute Dry (60 Hz) (kV) 50kV 50kV 65kV 90kV
5 Hour Dry (60 Hz) (kV) 35kV 35kV 55kV 75kV
DC Withstand 15 Minutes Dry (kV) 75kV 75kV 105kV 140kV
Application Information
IEEE 48 Classification Outdoor = Class 1A, Indoor = Class 2
Ambient Temperature Range -30º to +65ºC
Power System Frequency 48 to 62Hz
Altitude Range 3,300 Feet Max
Mounting Free Hanging Or Optional Bracket

Every R2T and R2IT kit comes complete with housing and stress tube preassembled on the core, ready for installation. Easy-to-read installation instructions will take you from cable preparation through installation. All kits include a tube of silicone grease, two plastic gloves and two strips of selffusing silicone tape. Outdoor kits also include mastic for sealing. Metallic Tape (M) kits include
a grounding adapter for Tape Shield, Wire Shield and UniShield cables. LC Shield (L) kits include a high-ampacity grounding adapter for Longitudinally Corrugated Shield, Tape Shield and Wire
over Tape Shield cables.

ELASTIMOLD HIGH VOLTAGE SILICONE SHRINK-FIT TERMINATIONS

Installation Instructions

Elastimold Cable Terminations - High Voltage Silicone Shrink-Fit Terminations 2

Elastimold Cable Terminations - High Voltage Silicone Shrink-Fit Terminations 2

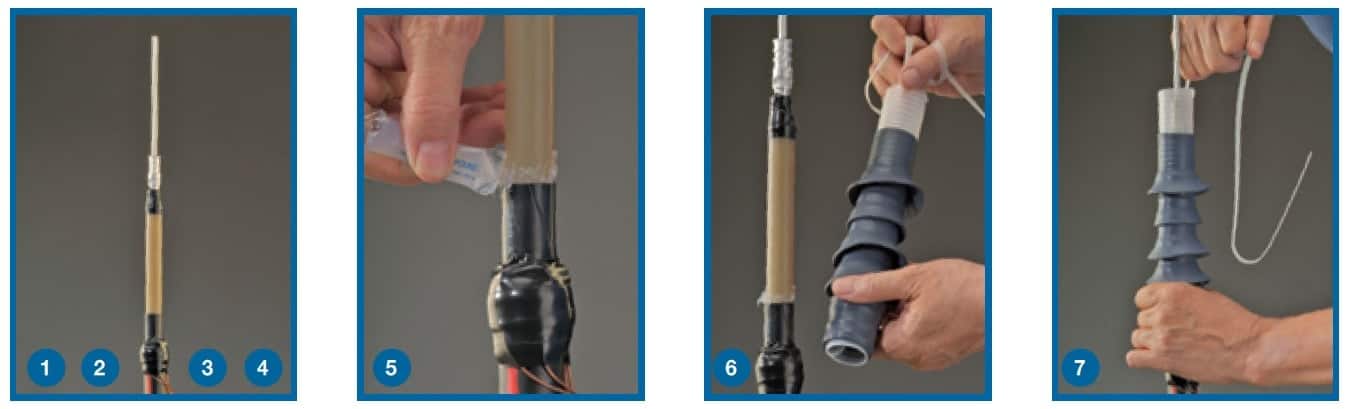

Step 1. Train the cable into position and cut to length. Using standard practices, cut back the cable jacket, metallic shield, semi-conductive shield and cable insulation, exposing the conductor.

Step 2. Finish preparing the metallic shield. For concentric neutral or jacketed concentric neutral cables, bend back the neutral wires and seal with mastic strips and vinyl tape. For metallic tape, drain wire, UniShield or LC Shield cables: install the ground braid using the constant force spring and seal with mastic strips and vinyl tape.

Step 3. Clean the exposed conductor, install and crimp the connector.

Step 4. Use mastic and vinyl tape to fill any gap or step between the connector and the cable insulation. Clean the cable.

Step 5. Apply a liberal bead of silicone lubricant to the semi-con shield step.

Step 6. Pull the loose end of the core cord until the core is even with the end of the termination housing.

Step 7. Position the cable terminator onto the cable.

Elastimold Cable Terminations - High Voltage Silicone Shrink-Fit Terminations 2

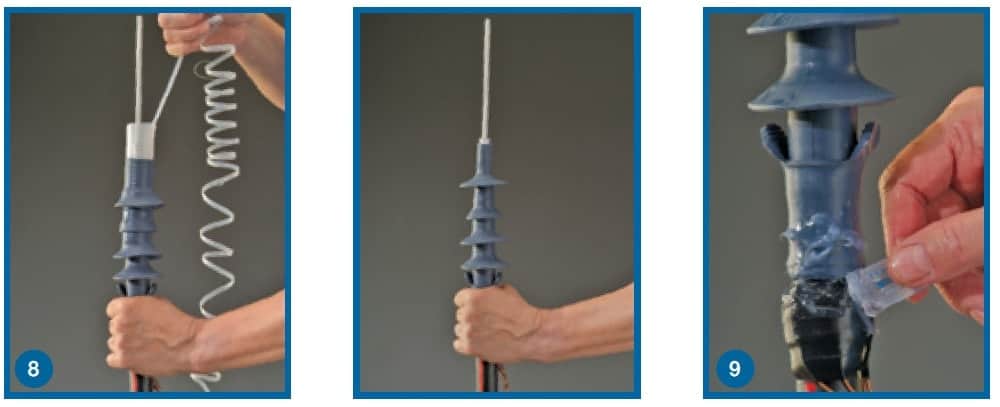

Step 8. Shrink cable termination into place by unwinding the removable core.

Step 9. Apply silicone lubricant to skirt and mastic area.

Elastimold Cable Terminations - High Voltage Silicone Shrink-Fit Terminations 2

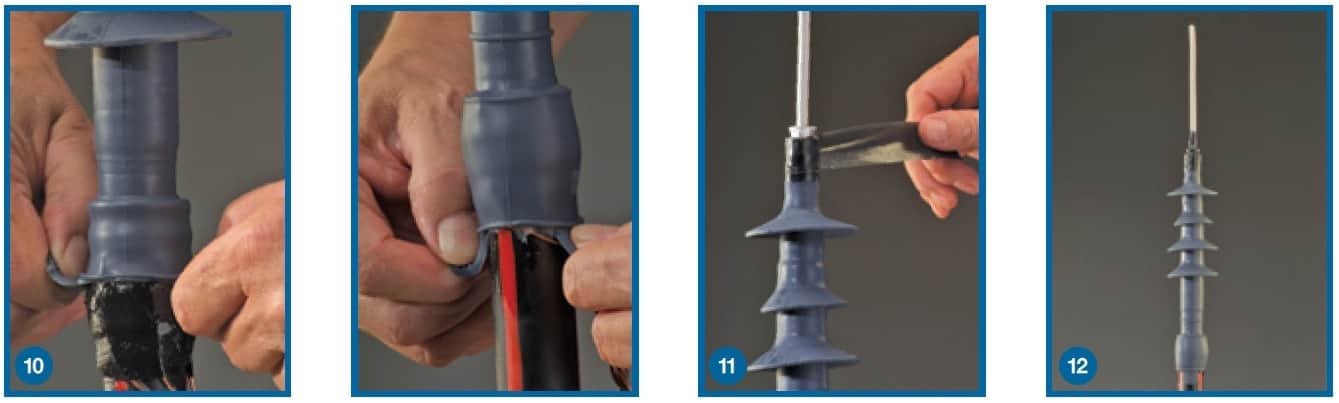

Step 10. Fold down the skirt over the mastic to seal the cable entrance.

Step 11. Seal the top of the cable terminator at the connector area with silicone tape.

Step 12. Attach the neutral wires or optional ground braid to the system ground per local code. Install the optional cable support bracket if required.

➡  Elastimold Bushings – 200 Amp & 600 Amp High Voltage Switchgear Transformer Bushings

Distribution Shrink-Fit Terminations – Stress Relief

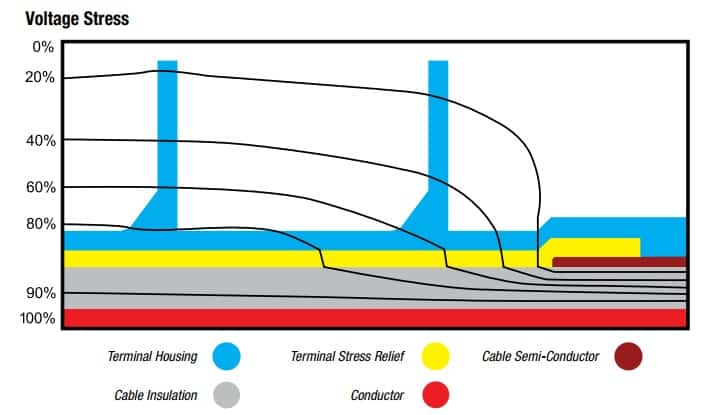

The R2T and R2IT terminations provide electric stress control for the cable by means of a flexible tube with a high-permittivity dielectric constant.

Distribution Shrink-Fit Terninations Stress Relief
